Study on pressure distribution characteristics of typical conduit-fracture medium in southwest karst area
-
摘要: 在岩溶发育区进行地下水资源开发、矿山开采及基础施工等工程活动时，都必须查明区域地下水流场及岩溶发育特征。以西南岩溶典型管道–裂隙介质含水层为研究对象，本文将裂隙的发育角度、导水通道中水流的流速、地下水供水形式等因素概化为裂隙开度、流量（管径、溢水高度）、裂隙与管道夹角三种因素，分析了管道–裂隙介质内的压强分布特征，揭示了影响因素与压强分布的响应规律。研究结果表明：管道–裂隙介质中，裂隙面内地下水形成的“水墙”，能够降低上下游管道内水流的流速，“水墙”越厚流速降低越大。提出了管道占优和裂隙占优的概念，管道占优表示涌水点或示踪剂接收点水流主要来源于上游管道介质，少量或无来源于裂隙介质；裂隙占优则表示涌水点或示踪剂接收点水流主要来源于与其相连接的裂隙介质，少量或无来源于上游管道介质。裂隙面内压强分布呈现对称的“漏斗”型分布，且管道口附近区域存在一个影响半径，影响程度为裂隙开度大于管道裂隙夹角大于流量。Abstract:
The southwest karst region of China is a unique area characterized by abundant groundwater resources and a fragile ecological environment. Its typical conduit-fracture dual aquifer system exhibits significant heterogeneity and anisotropy, which directly result in complex and variable groundwater recharge, flow, and discharge processes. These characteristics present numerous challenges to engineering activities such as regional groundwater development and utilization, mining, transportation, and foundation construction. When undertaking engineering projects in such areas, failure to accurately understand the flow dynamics and pressure distribution of groundwater within conduit-fracture media can lead to serious issues, including water inrush, mud outbursts, water resource wastage, groundwater contamination, and ecological damage. Therefore, systematically elucidating the hydraulic properties of these media is a critical prerequisite for addressing core hydrogeological problems in karst regions. This study focuses on the typical conduit-fracture medium aquifer in the southwestern karst region. Addressing the limitations of existing research—which primarily emphasizes macro-scale hydrological processes and lacks quantitative analysis of micro-scale pressure distribution and interpretation of water-conducting dominance relationships—this paper employs a combined approach of theoretical generalization and laboratory experiments. Complex factors influencing groundwater pressure distribution, such as fracture development angle, flow velocity within water-conducting channels, and groundwater supply mode, are systematically distilled into three adjustable key parameters: fracture aperture (three levels: 1 cm, 3 cm, 5 cm), flow rate (using pipe diameters of φ16 mm, φ21 mm, and φ26 mm combined with overflow heights of +3 cm, +5 cm, and +10 cm), and the angle between fracture and conduit (three levels: 60°, 70°, and 90°). An independently developed three-dimensional visual indoor test system is utilized, integrating four modules: water supply, fracture, conduit, and monitoring & data acquisition. This system offers precise parameter control and intuitive visualization of hydraulic phenomena. High-frequency, high-precision data on pressure and flow velocity within the conduit-fracture medium are collected using pressure sensors, paperless recorders, and flowmeters. Each experimental condition is repeated three times to ensure the reliability of the results. The experimental results demonstrate a significant "water wall" effect in the conduit-fracture medium: groundwater accumulating on the fracture surface forms a water-blocking "water wall" that effectively reduces flow velocity in both upstream and downstream conduits. The thickness of this "water wall" is positively correlated with the fracture aperture. When the fracture aperture increases from 1 cm to 5 cm, the pressure at the conduit mouth rises by approximately 3.1% compared to the baseline, accompanied by a more pronounced reduction in flow velocity. Based on differences in groundwater recharge sources, this paper innovatively introduces the concepts of "conduit dominance" and "fracture dominance. dominance refers to scenarios where water flow at the water gushing point or tracer receiving point primarily originates from the upstream conduit medium, with minimal contribution from the fracture medium. Conversely, fracture dominance describes cases where water flow mainly depends on recharge from the connected fracture medium. This classification offers a new theoretical framework for identifying groundwater recharge sources in karst areas. Additionally, the pressure distribution on the fracture surface exhibits a symmetrical "funnel" shape, with the funnel center aligned with the conduit mouth. A distinct influence radius exists around the conduit mouth, which first decreases and then increases as the fracture aperture grows (27 cm at 1 cm aperture, 24 cm at 3 cm, and expanding again at 5 cm). This influence radius is not significantly affected by changes in flow velocity. Quantitative analysis clarifies the relative importance of three factors affecting pressure distribution: fracture aperture > angle between conduit and fracture > flow rate. Specifically, the pressure at the conduit mouth when the angle is 90° is 4.4% lower than at 60°, and pressure decreases by approximately 1.9% as the flow rate increases from 228.3 mL/s to 874.0 mL/s. This study addresses the gap in systematic research on the micro-pressure distribution within conduit-fracture media in the southwest karst region. Its findings not only enhance the understanding of groundwater flow mechanisms but also provide valuable experimental data and theoretical support for engineering applications, including the identification of groundwater runoff channels, precise development and protection of groundwater resources, and the prevention and control of mine water inrush disasters in karst areas. This research holds significant practical importance for ensuring regional engineering safety and promoting sustainable ecological development. -

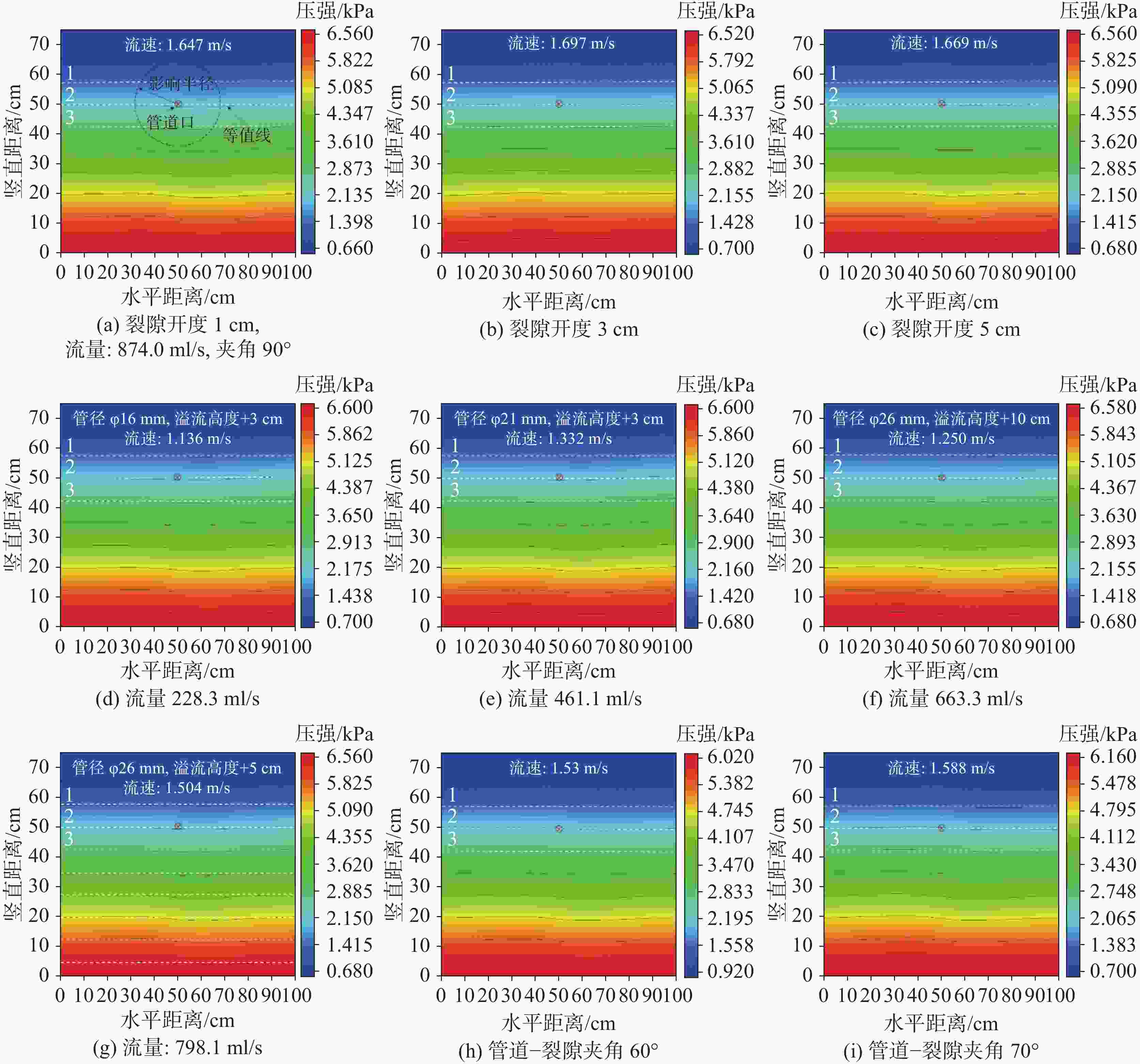

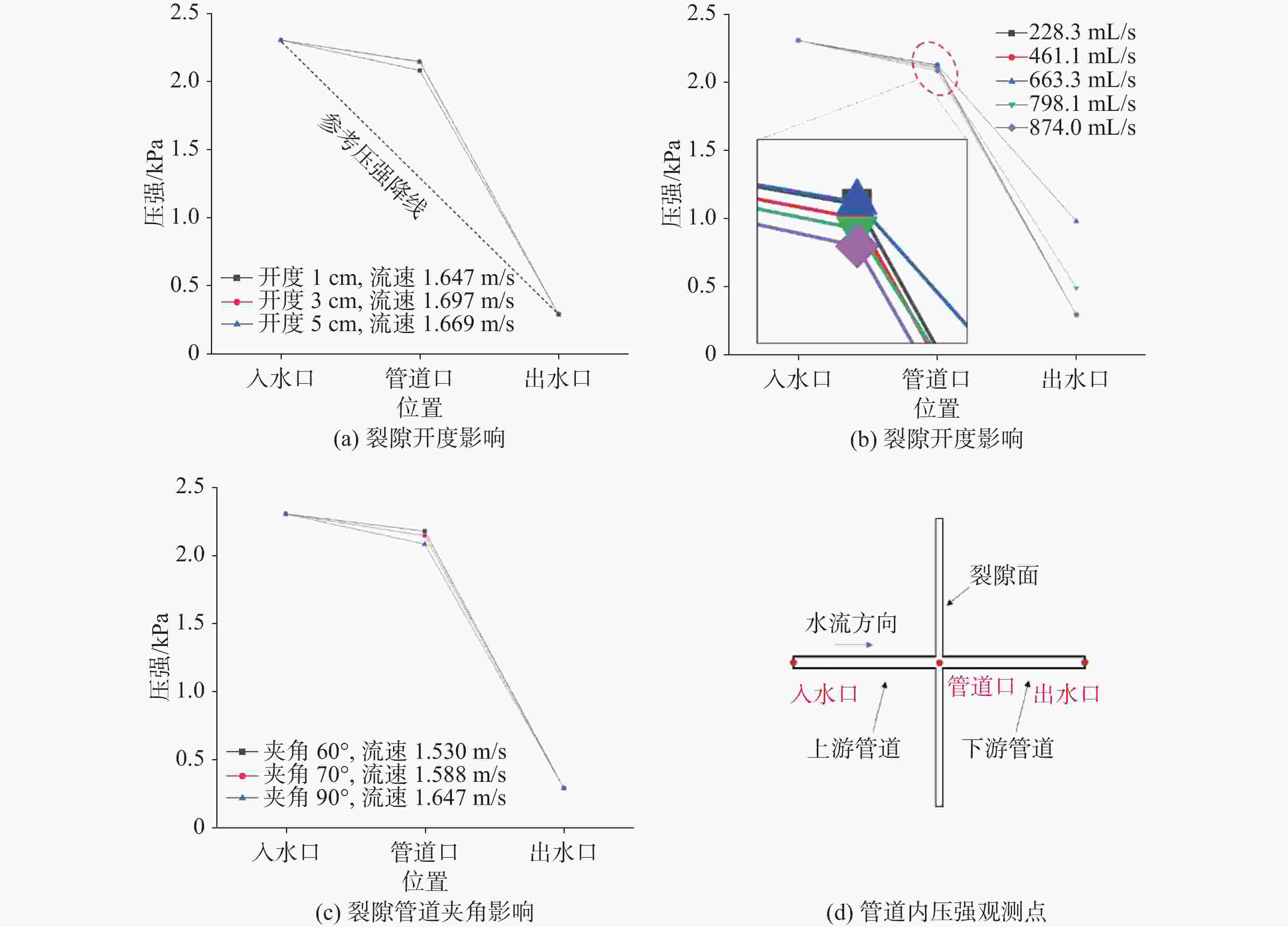

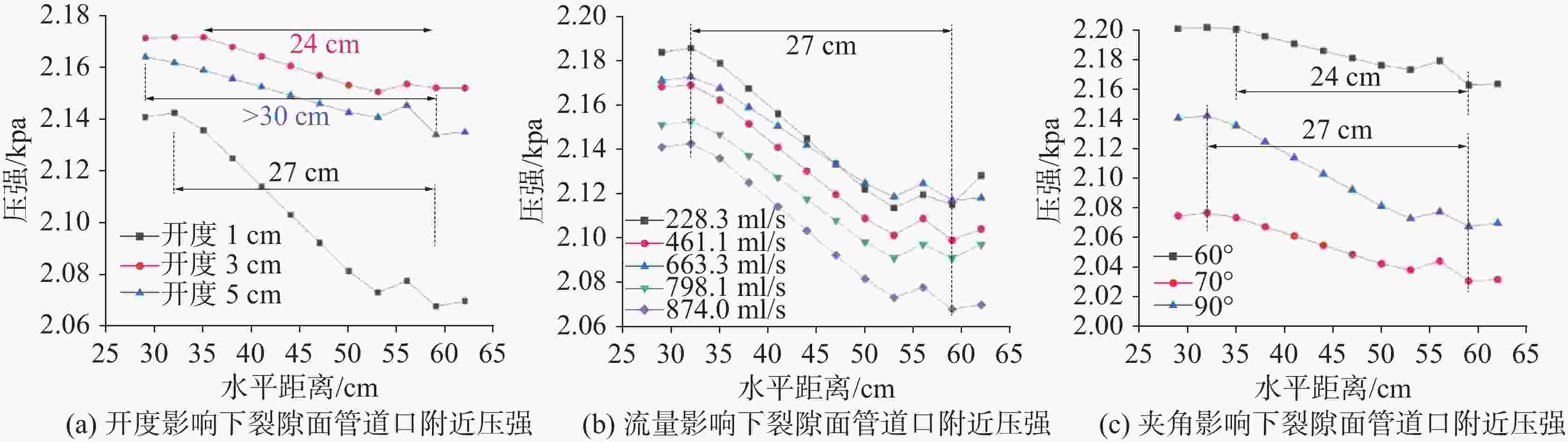

图 6 竖向距离50 cm处管道口附近压强值
Figure 6. Pressure value near the conduit entrance at a vertical distance of 50 cm

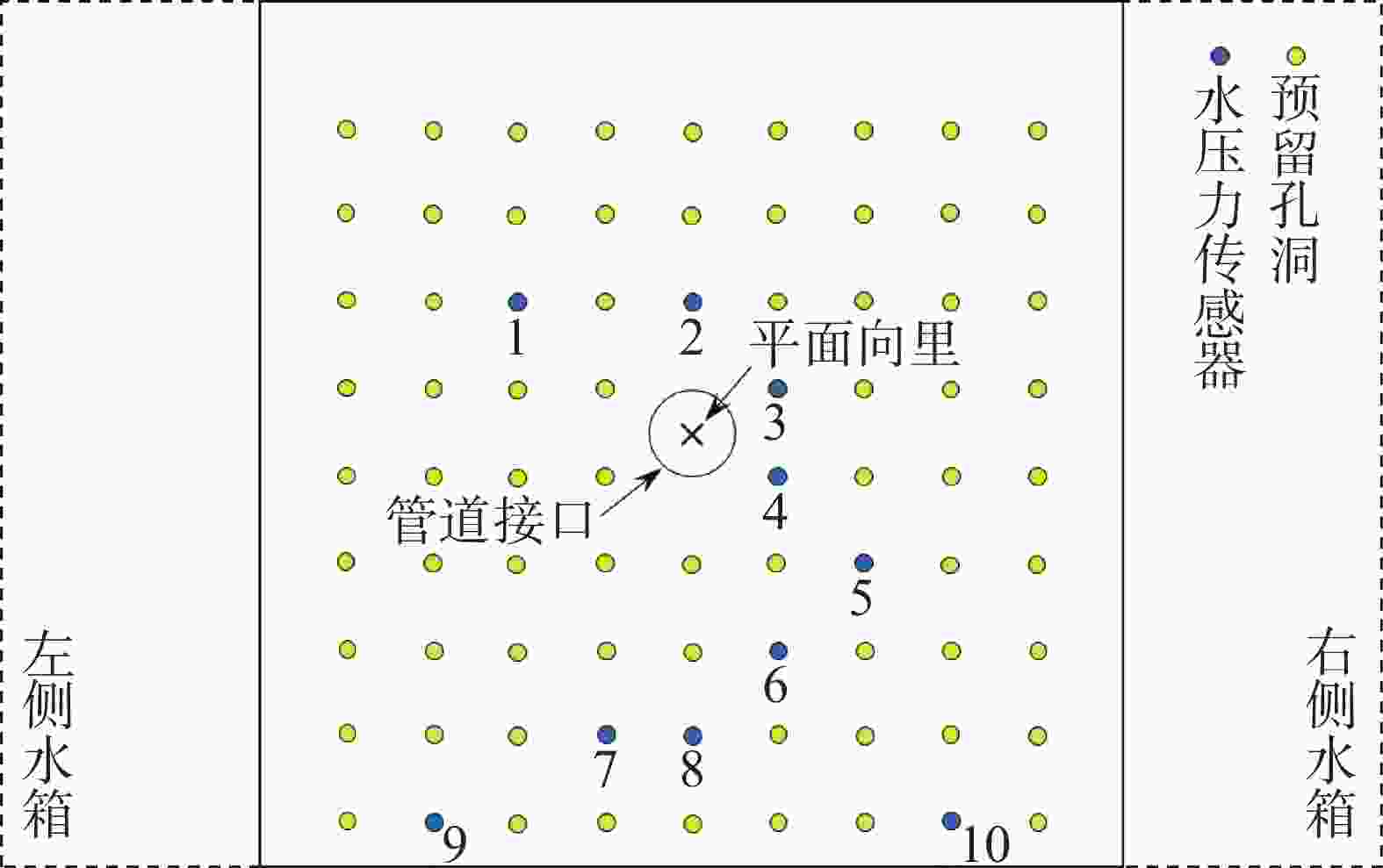

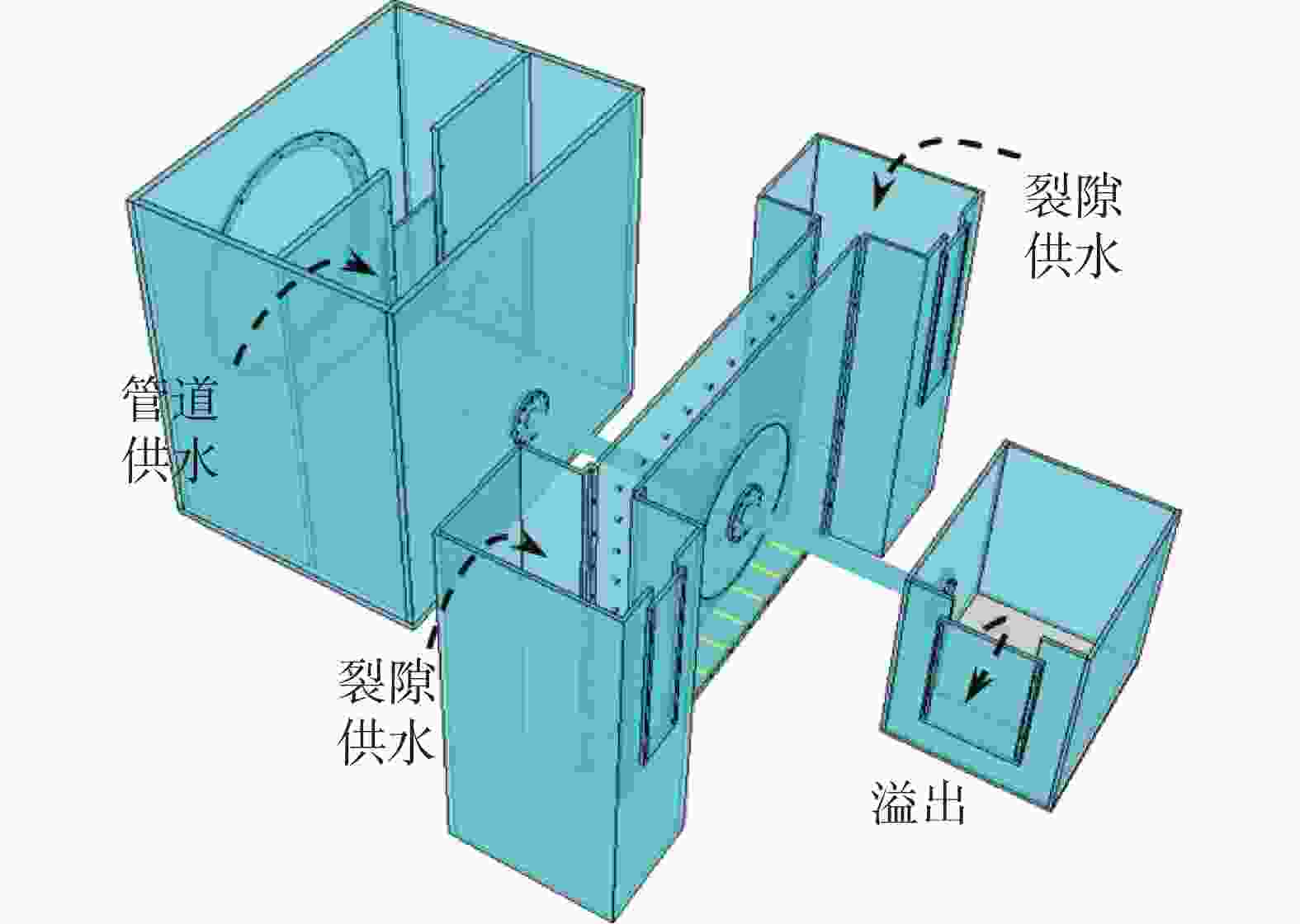

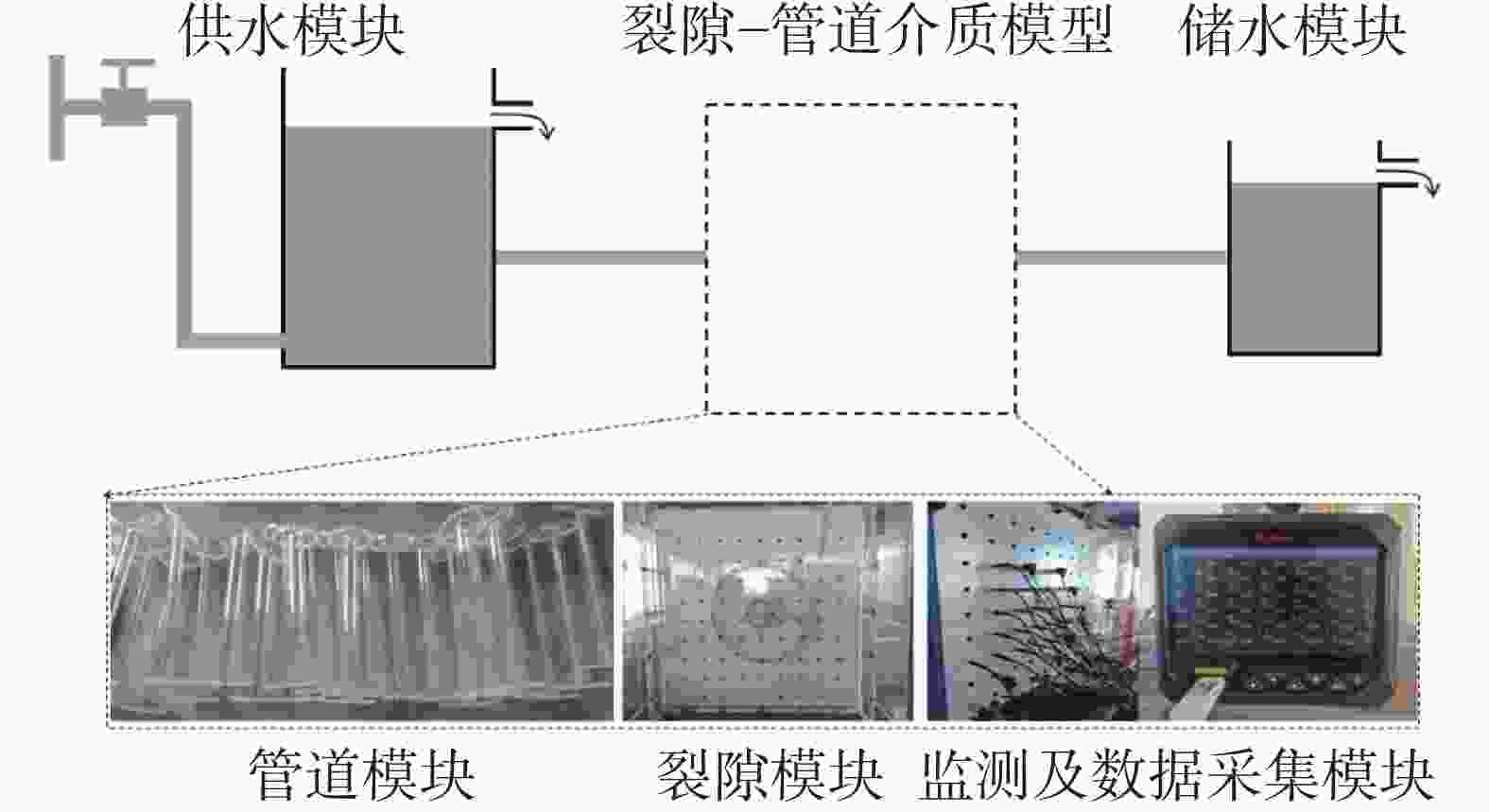

表 1 试验工况设计
Table 1. Test condition design
影响
因素裂隙开
度/cm管径
φ/mm溢流高
度/cm裂隙管道
夹角/°裂隙开度 1 26 +3 90 3 5 流量 1 16 +3 90 21 26 26 +3 +5 +10 裂隙–管道夹角 1 26 +3 60 70 90
下载: 导出CSV
-
[1] 王海, 王永刚, 张雁, 孙浩, 苗贺朝. 生态脆弱露天矿区截水帷幕下松散层水位演化规律[J]. 煤田地质与勘探, 2022, 50(7): 36-43.WANG Hai, WANG Yonggang, ZHANG Yan, SUN Hao, MIAO Hechao. Water level evolution pattern of loose layers under water cutoff curtain in ecologically fragile open-pit mines[J]. Coal Geology & Exploration, 2022, 50(7): 36-43. [2] 王宇. 论云南高原岩溶大水矿区地下水系统的复杂性[J]. 中国岩溶, 2024, 43(6): 1223-1234.WANG Yu. Study on complexity of groundwater systems in the karst mining areas with abundant water on the Yunnan plateau[J]. Carsologica Sinica, 2024, 43(6): 1223-1234. [3] 周亚醒, 陈浩, 张飞, 张岩. 群孔抽水试验方法求解含水层水文地质参数[J]. 水文, 2022, 42(6): 78-82. doi: 10.19797/j.cnki.1000-0852.20210303ZHOU Yaxing, CHEN Hao, ZHAN Fei, ZHANG Yan. Solution of aquifer hydrogeological parameters by group hole pumping test[J]. Journal of China Hydrology, 2022, 42(6): 78-82. doi: 10.19797/j.cnki.1000-0852.20210303 [4] Faulkner J, Hu B, Kish S, Hua F. Laboratory analog and numerical study of groundwater flow and solute transport in a karst aquifer with conduit and matrix domains[J]. Journal of Contaminant Hydrology, 2009, 110(1-2): 34-44. doi: 10.1016/j.jconhyd.2009.08.004 [5] Gallegos J J, Hu B X, Davis H. Erratum: Simulating flow in karst aquifers at laboratory and sub-regional scales using MODFLOW-CFP[J]. Hydrogeol J, 2013, 21: 1911-1912. doi: 10.1007/s10040-013-1062-4 [6] QIAN J Z, CHEN Z, ZHAN H B, LUO S H. Solute transport in a filled single fracture under non-Darcian flow. International journal of rock mechanics and mining sciences, 2011, 48(1): 132-140. [7] LI T Y, FAN Q Y, YANG P S, LIANG J H. Study on the equivalent permeability coefficient of karst conduit with single conduit and multigroup fissures[J]. Mathematical Problems in Engineering, 2022, 4: 1-10. doi: 10.1155/2022/3844771 [8] 孙晨, 束龙仓, 鲁程鹏, 张春艳. 裂隙-管道介质泉流量衰减过程试验研究及数值模拟[J]. 水利学报, 2014, 45(1): 50-57.SUN Chen, SHU Longcang, LU Chengpeng, ZHANG Chunyan. Physical experiment and numerical simulation of spring flow attenuation process in fissure-conduit media[J]. Journal of Hydraulic Engineering, 2014, 45(1): 50-57. [9] 董贵明, 束龙仓, 田娟, 季叶飞. 西南岩溶地下河系统水流运动数值模型[J]. 吉林大学学报(地球科学版), 2011, 41(4): 1136-1143,1156.DONG Guiming, SHU Longcang, TIAN Juan, JI Yefei. Numerical model of groundwater flow in karst underground river system, southwestern China[J]. Journal of Jilin University (Earth Science Edition), 2011, 41(4): 1136-1143,1156. [10] 罗明明, 季怀松. 岩溶管道与裂隙介质间溶质暂态存储机制[J]. 水科学进展, 2022, 33(1): 145-152.LUO Mingming, JI Huaisong. Mechanism of solute transient storage between karst conduit and fissures[J]. Advances in Water Science, 2022, 33(1): 145-152. [11] Beisner K, Paretti N, Jasmann J, Barber L. Utilizing anthropogenic compounds and geochemical tracers to identify preferential structurally controlled groundwater pathways influencing springs in Grand Canyon National Park, Arizona, USA[J]. Journal of Hydrology: Regional Studies, 2023, 48: 101461. doi: 10.1016/j.ejrh.2023.101461 [12] 黄荣, 王发, 陈洪松, 付智勇. 不同类型表层岩溶泉水源划分及对降雨的响应[J]. 水文, 2022, 42(3): 20-26. doi: 10.19797/j.cnki.1000-0852.20200514HUANG Rong, WANG Fa, CHEN Hongsong, FU Zhiyong. The water source division of different types of epikarst springs and their response to rainfall[J]. Journal of China Hydrology, 2022, 42(3): 20-26. doi: 10.19797/j.cnki.1000-0852.20200514 [13] 刘伟威, 贾龙, 刘昶, 周富彪. 河池市金城江区城西岩溶水源地砷污染来源及途径[J]. 中国岩溶, 2024, 43(4): 854-862,875. doi: 10.11932/karst20240405LIU Weiwei, JIA Long, LIU Chang, ZHOU Fubiao. Sources and pathways of arsenic pollution in the karst water source areain the west of Jinchengjiang district, Hechi City[J]. Carsologica Sinica, 2024, 43(4): 854-862,875. doi: 10.11932/karst20240405 [14] 牛子豪, 束龙仓, 林欢, 李昶, 冯佳琪, 谭易成, 王熹, 齐天松. 不同补给条件下裂隙-管道介质间水流交换的示踪试验研究[J]. 水文地质工程地质, 2017, 44(3): 6-11. doi: 10.16030/j.cnki.issn.1000-3665.2017.03.02NIU Zihao, SHU Longcang, LIN Huan, LI Chang, FENG Jiaqi, TAN Yicheng, WANG Xi, QI Tiansong. Experimental study of water quantity exchange between fissures and sinkholes under different recharge modes in the fissure-conduit media[J]. Hydrogeology & Engineering Geology, 2017, 44(3): 6-11. doi: 10.16030/j.cnki.issn.1000-3665.2017.03.02 [15] SHU L C, ZOU Z K, LI F L, WU P P, CHEN H W, XU Z X, Laboratory and Numerical Simulations of Spatio-temporal Variability of Water Exchange Between the Fissures and Conduits in a Karstic Aquifer[J]. Journal of Hydrology, 590(2020)125219 [16] 解子轩, 江峰, 王若帆, 吉勤克补子, 史浙明, 赵良杰. 基于GMS的岩溶地下河水流与溶质运移过程模拟研究[J]. 中国岩溶, 2025, 44(1): 57-69. doi: 10.11932/karst20250104XIE Zixuan, JIANG Feng, WANG Ruofan, JI Qinkebuzi, SHI Zheming, ZHAO Liangjie. Simulation study of groundwater flow and solute transport processesin karst underground rivers based on GMS[J]. Carsologica Sinica, 2025, 44(1): 57-69. doi: 10.11932/karst20250104 [17] 苏培莉, 刘锋, 贾毅飞, 李冲. 高水头条件下管道裂隙浆液封堵机制试验研究[J]. 科学技术与工程, 2021, 21(29): 12513-12518. doi: 10.3969/j.issn.1671-1815.2021.29.021SU Peili, LIU Feng, JIA Yifei, LI Chong. Experimental study on slurry sealing mechanism of pipeline fracture under high water head[J]. Science Technology and Engineering, 2021, 21(29): 12513-12518. doi: 10.3969/j.issn.1671-1815.2021.29.021 [18] 秦鹏飞, 赵亚敏, 宋梦, 王文菁. 隧道突泥涌水致灾机理及防控技术研究[J]. 中国岩溶, 2025, 44(2): 359-369.QIN Pengfei, ZHAO Yamin, SONG Meng, WANG Wenjing. Research on the mechanism and prevention technologies ofmud and water inrush disasters in tunnels[J]. Carsologica Sinica, 2025, 44(2): 359-369. [19] 束龙仓, 张颖, 鲁程鹏. 管道-裂隙岩溶含水介质非均质性的水文效应[J]. 南水北调与水利科技, 2013, 11(1): 115-121.SHU Longcang, ZHANG Ying, LU Chengpeng. Hydrologic effects caused by the heterogeneity of karstic conduit-fissure medium[J]. South-to-North Water Transfers and Water Science & Technology, 2013, 11(1): 115-121. [20] 魏娜娜, 李旭, 许光泉, 张海涛, 邵则凡. 单裂隙管道-基质系统中反应性溶质运移解析模型研究[J]. 煤田地质与勘探, 2024, 52(9): 131-139. doi: 10.12363/issn.1001-1986.24.01.0028WEI Nana, LI Xu, XU Guangquan, ZHANG Haitao, SHAO Zefan. Analytical model for reactive solute transport in a channel-matrix system[J]. Coal Geology & Exploration, 2024, 52(9): 131-139. doi: 10.12363/issn.1001-1986.24.01.0028 [21] 李天雨. 管道—裂隙型岩溶地下水流场特征及径流通道参数辨识研究[D]. 济南: 山东大学, 2022.LI Tianyu. Study on characteristics of pipe-fissure karst groundwater field and parameter identification of runoff channel[D]. Jinan: Shandong University, 2022. [22] Mohammadi Z, Illman W A, Field M. Review of laboratory scale models of karst aquifers: Approaches, similitude, and requirements[J]. Groundwater, 2020, 59: 163-174. doi: 10.1111/gwat.13052 [23] Hauns M, Jeannin P, Atteia O. Dispersion, retardation and scale effect in tracer breakthrough curves in karst conduits[J]. Journal of Hydrology, 2001, 241: 177-193. doi: 10.1016/S0022-1694(00)00366-8 [24] Field M S, Leij F J. Solute transport in solution conduits exhibiting multi-peaked breakthrough curves[J]. Journal of Hydrology, 2012, 440−441: 26−35. [25] 赵良杰. 岩溶裂隙-管道双重含水介质水流交换机理研究[D], 北京: 中国地质大学(北京), 2019.ZHAO Liangjie. Study of water exchange mechanism of karst matrix and conduit medium[D]. Beijing: China University of Geosciences (Beijing), 2019 [26] 陈雰. 岩溶与裂隙交叉渗流特性试验及数值模拟研究[D]. 南京: 河海大学, 2006.CHEN Fen. Research on experiment and numerical simulation of seepage characteristic of crossed karst and cranny[D]. Nanjing: Hohai University, 2006. [27] Zhang C, Shu L, Lu C, et al. Experimental determination of fractures and conduits and the applicability of Cubic law in closed fractures[J]. Experimental thermal & fluid science international journal of experimental heat transfer thermodynamics & fluid mechanics, 2015, 69: 1-7. doi: 10.1016/j.expthermflusci.2015.07.013 [28] 陈崇希. 岩溶管道-裂隙-孔隙三重空隙介质地下水流模型及模拟方法研究[J]. 地球科学, 1995(4): 361-366.CHEN Chongxi. Groundwater flow model and simulation method in triple media of karstic tube-fissure-pore[J]. Earth Science, 1995(4): 361-366. [29] 柯婷婷, 束龙仓. 基于泉流量过程线的管道流与裂隙流识别[J]. 中国岩溶, 2015, 34(5): 460-467. doi: 10.11932/karst20150506KE Tingting, SHU Longcang. Quantitative identification of conduit flow and crack flow based on the spring hydrograph analysis[J]. Carsologica Sinica, 2015, 34(5): 460-467. doi: 10.11932/karst20150506 [30] Marechal J C, Dewandel B, Subrahmanyam K. Use of hydraulic tests at different scales to characterize fracture network properties in the weathered-fractured layer of a hard rock aquifer[J]. Water Resources Research, 2004, 40: W11508. doi: 10.1029/2004wr003137 [31] Gillespie P A, Holdsworth R E, Long D, et al. Introduction: Geology of fractured reservoirs[J]. Journal of the Geological Society, 2020, 178(2): 2020-2197. [32] 罗明明, 陈静, 季怀松, 万里, 李成根, 周宏. 岩溶管道与裂隙介质间溶质交换研究进展[J]. 地球科学, 2023, 48(11): 4202-4213.LUO Mingming, CHEN Jing, JI Huaisong, WAN Li, LI Chenggen, ZHOU Hong. Review of solute exchange between karst conduit and matrix[J]. Earth Science, 2023, 48(11): 4202-4213. -
