基于物联网的岩溶监测数据汇聚系统建设

杨辰; 毕奔腾

doi:10.11932/karst2026y011

基于物联网的岩溶监测数据汇聚系统建设

doi: 10.11932/karst2026y011

杨辰^{1, 2,},
毕奔腾^{1, 2, ,}

1.
中国地质科学院岩溶地质研究所/自然资源部、广西岩溶动力学重点实验室/联合国教科文组织国际岩溶研究中心, 广西桂林 541004
2.
广西平果喀斯特生态系统国家野外科学观测研究站, 广西平果 531406

基金项目: 广西自然科学基金项目（2025GXNSFBA069418）；中国地质科学院岩溶地质研究所基本科研业务费重大项目（2021004）；中国地质调查局地质调查项目（DD202610202624）

详细信息

作者简介:
杨辰（1989－），男，高级工程师，主要从事岩溶地质信息化建设及应用方面的研究工作。E-mail：ychen@mail.cgs.gov.cn

通讯作者:
毕奔腾（1990－），男，高级工程师，主要从事地质信息技术研究与应用。E-mail: bibenteng@mail.cgs.gov.cn。

计量
- 文章访问数: 35
- HTML浏览量: 14
- PDF下载量: 37
- 被引次数: 0
出版历程
- 收稿日期: 2025-07-31
- 录用日期: 2026-03-13
- 修回日期: 2026-03-06
- 网络出版日期: 2026-06-18

Construction of a karst monitoring data aggregation system based on the Internet of Things

YANG Chen^{1, 2
,},
BI Benteng^{1, 2
, ,}

1.
Institute of Karst Geology, CAGS/ Key Laboratory of Karst Dynamics, MNR & GZAR, Guilin/International Research Centre on Karst under the Auspices of UNESCO, Guangxi 541004, China
2.
Pingguo Guangxi, Karst Ecosystem, National Observation and Research Station, Pingguo, Guangxi 531406, China

摘要

摘要: 岩溶区因其“土在地表、水在地下”的特殊结构，对气候、水文等环境要素响应敏感，资源环境问题突出，实时监测岩溶关键带环境变化响应快速的水文过程、地球化学过程、生物过程(三大过程)对解决岩溶区资源环境问题至关重要。目前岩溶野外监测站点多侧重于设备端建设，存在类型多、协议多样、数据孤岛等问题，没有形成统一的数据系统。本研究旨在开发一套能够实时在线监测、统计分析、实现多元站点数据汇聚的岩溶监测数据系统。系统设计了支持多协议设备统一接入的数据集成架构，突破传感器及传输设备的协议限制；基于物联网、微服务架构与容器化等技术，结合Kubernetes 实现弹性伸缩与高可用部署。通过实际部署运行和接入监测设备验证，可实时汇聚监测设备数据、展示设备状态、异常预警，实现数据持久化与共享，提高了岩溶监测数据的时效性。
- 岩溶关键带 /
- 物联网 /
- 微服务架构 /
- 数据可视化 /
- 分布式系统
Abstract: As a vital component of the Earth's Critical Zone, the karst critical zone exhibits highly sensitive hydrological, geochemical, and biological processes in response to environmental changes. Effective monitoring is therefore crucial for addressing key resource and environmental challenges in karst regions, including soil erosion, drought and flood disasters, and ecological conservation. However, existing monitoring stations, often constructed during different periods with varying observation indicators, suffer from incompatible equipment, transmission protocols, and data platforms. This significantly impedes data timeliness, unified management, and data sharing.To systematically resolve these issues, this paper designs and implements a standardized data convergence system based on Internet of Things (IoT) technology and cloud-native architecture. Firstly, at the device access layer, the system utilizes the MQTT protocol as its core while maintaining compatibility with standard protocols like ModBus. It also provides a flexible and extensible SDK, enabling efficient and cost-effective integration of both existing and new heterogeneous monitoring devices, thereby achieving unified access and management of multi-protocol equipment. Secondly, at the system architecture level, it employs advanced microservices design and containerization technology. Core functions are modularized through RESTful APIs, and services are containerized and automatically orchestrated using Docker and Kubernetes. This cloud-native architecture endows the system with high elasticity, scalability, and reliability, enabling self-healing, elastic scaling, and load balancing. This effectively supports the processing of massive concurrent data streams and accommodates future business growth. Regarding data storage, the system innovatively adopts a hybrid multi-type database architecture. It integrates Redis, Apache Doris, MongoDB, and MinIO to handle different scenario-scaching, real-time analysis, document storage, and object storage, respectively-ensuring highly efficient and stable data read/write operations. Furthermore, the system implements three data snapshot collection rules-immediate, change-based, and scheduled-and supports the import of historical data, guaranteeing the continuity and integrity of monitoring data. Security is embedded throughout the device end, transmission layer, and platform layer, with comprehensive data protection ensured through mechanisms such as pre-authorization, TLS encryption, and access control.The system concretely implements a three-tier application structure: a management console, a large monitoring screen, and a mobile APP. The management console handles device management, intelligent operational maintenance, and system configuration; the large screen provides a global data overview based on map visualization; the mobile terminal enables users to access device status and data anytime, anywhere. Application examples demonstrate that the system has been successfully deployed, integrating numerous monitoring stations from several national and provincial field observation and research stations, including those in Pingguo, Guangxi, and Guilin. It has accumulated over 2 million data entries, achieved a station data completeness rate of 99.94%, and operates stably. Performance tests indicate that the system maintains millisecond-level response times under simulated scenarios of millions of concurrent device connections and queries on massive historical datasets, demonstrating excellent processing capability and stability.In conclusion, this system effectively addresses the long-standing challenges of equipment heterogeneity and data silos in karst monitoring. It establishes a unified, efficient, and reliable data convergence and management platform, providing a solid data foundation for scientific research, ecological protection, and disaster early warning in karst areas. Future work will focus on the deep integration of artificial intelligence algorithms and professional models to further enhance the system's intelligence in data quality control, intelligent early warning, and analytical evaluation.
- karst critical zone /
- Internet of Things /
- microservices architecture /
- data visualization /
- distributed system

HTML

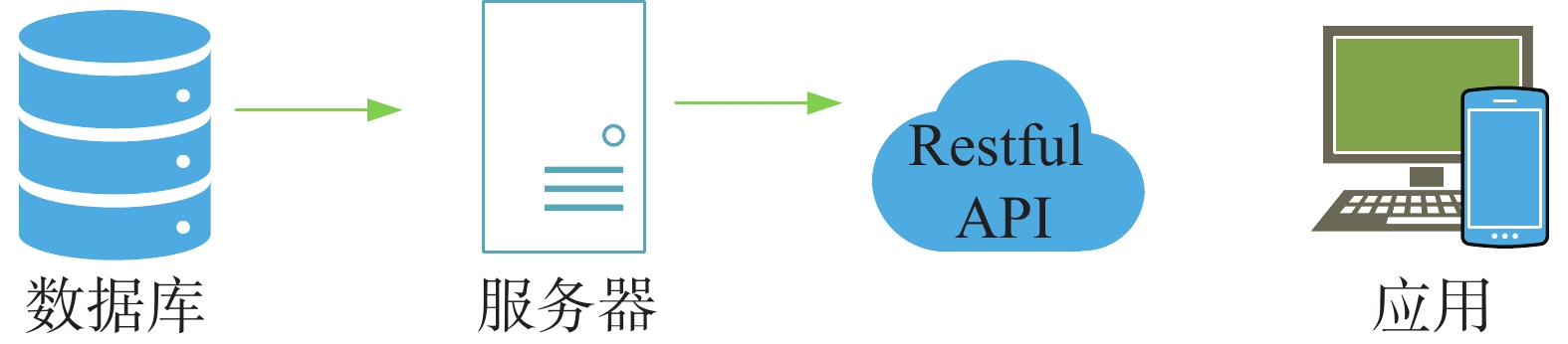

图 1 RESTful API

Figure 1. RESTful API

下载: 全尺寸图片幻灯片

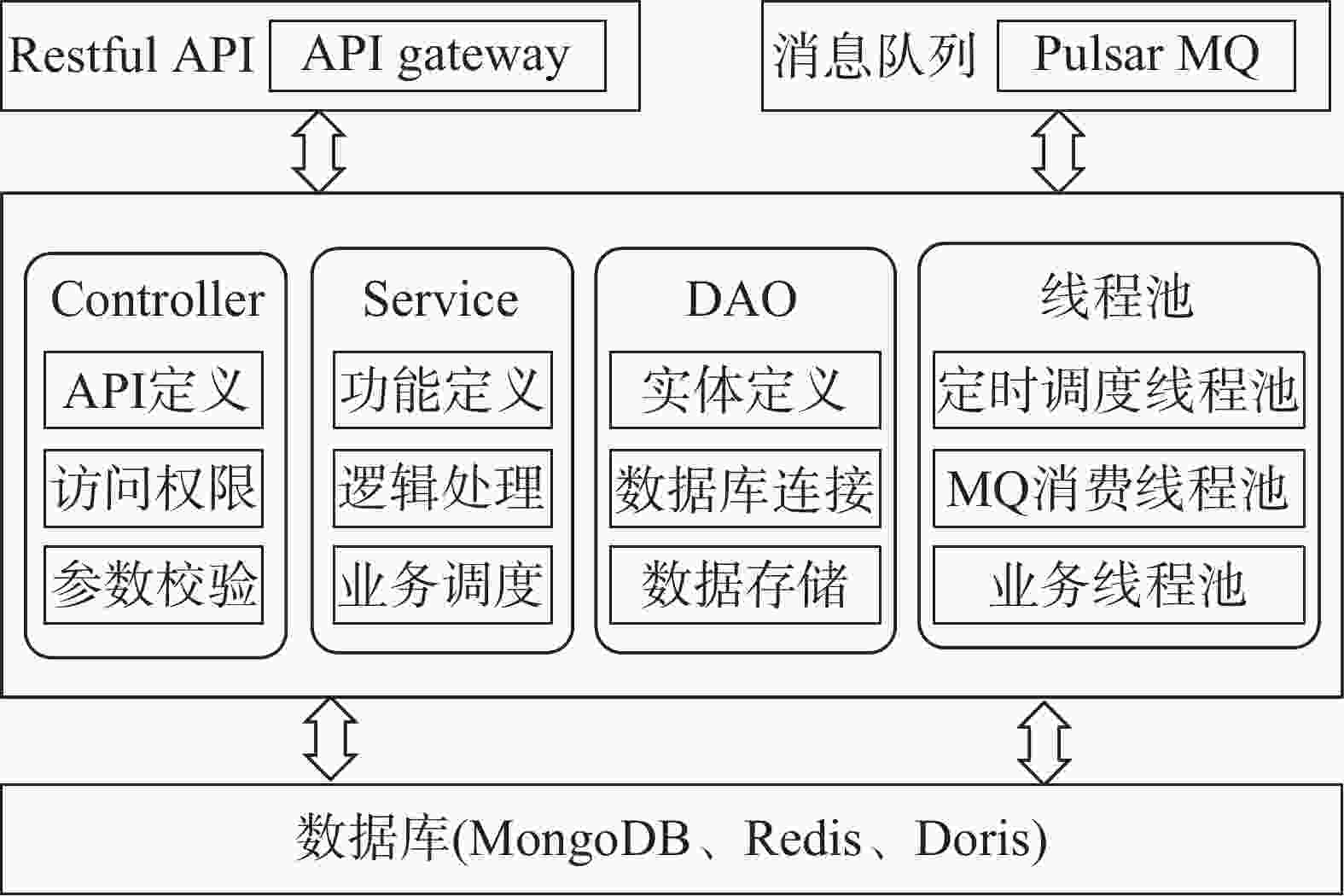

图 2 数据快照技术架构

Figure 2. Technical architecture of data snapshot

下载: 全尺寸图片幻灯片

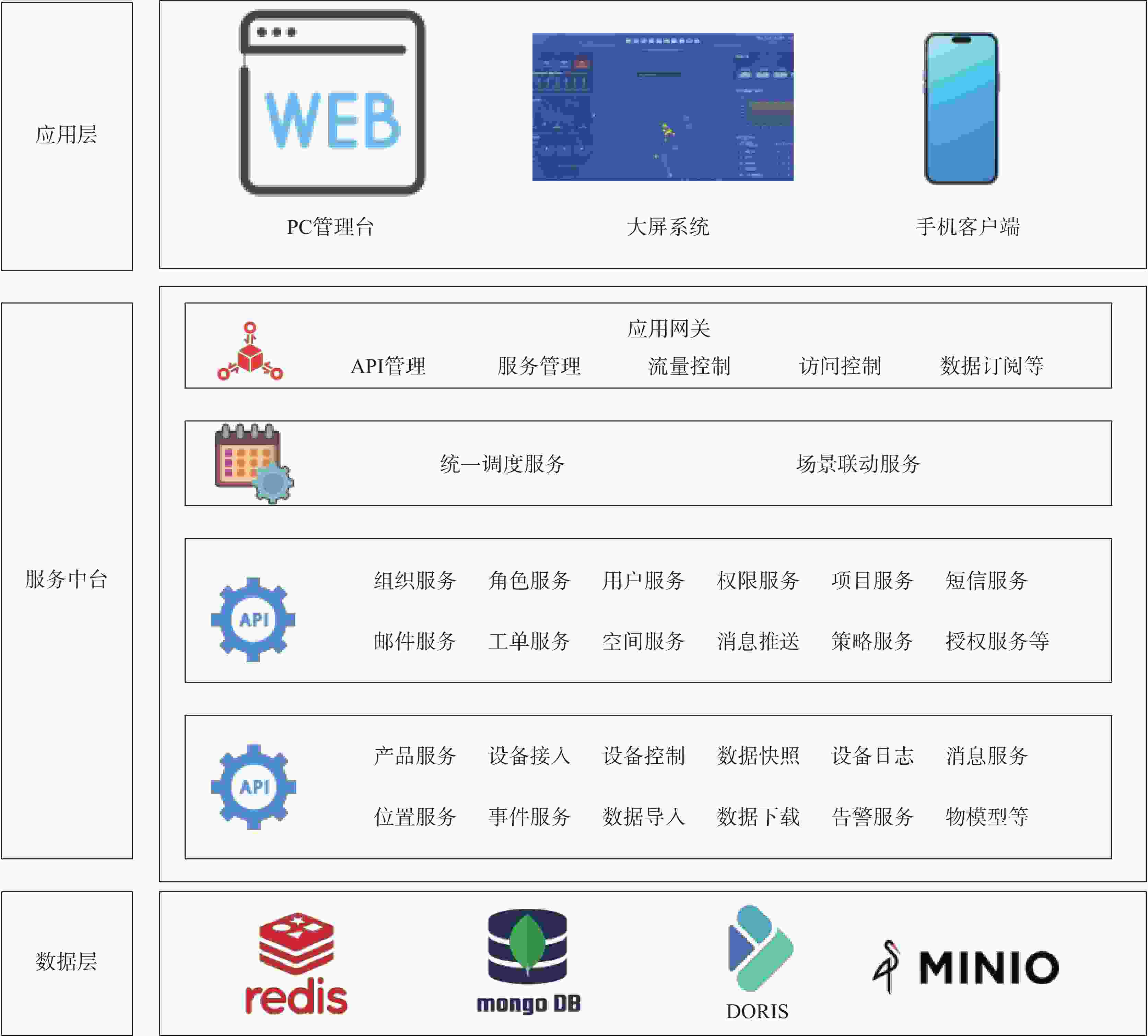

图 3 系统架构图

Figure 3. System architecture diagram

下载: 全尺寸图片幻灯片

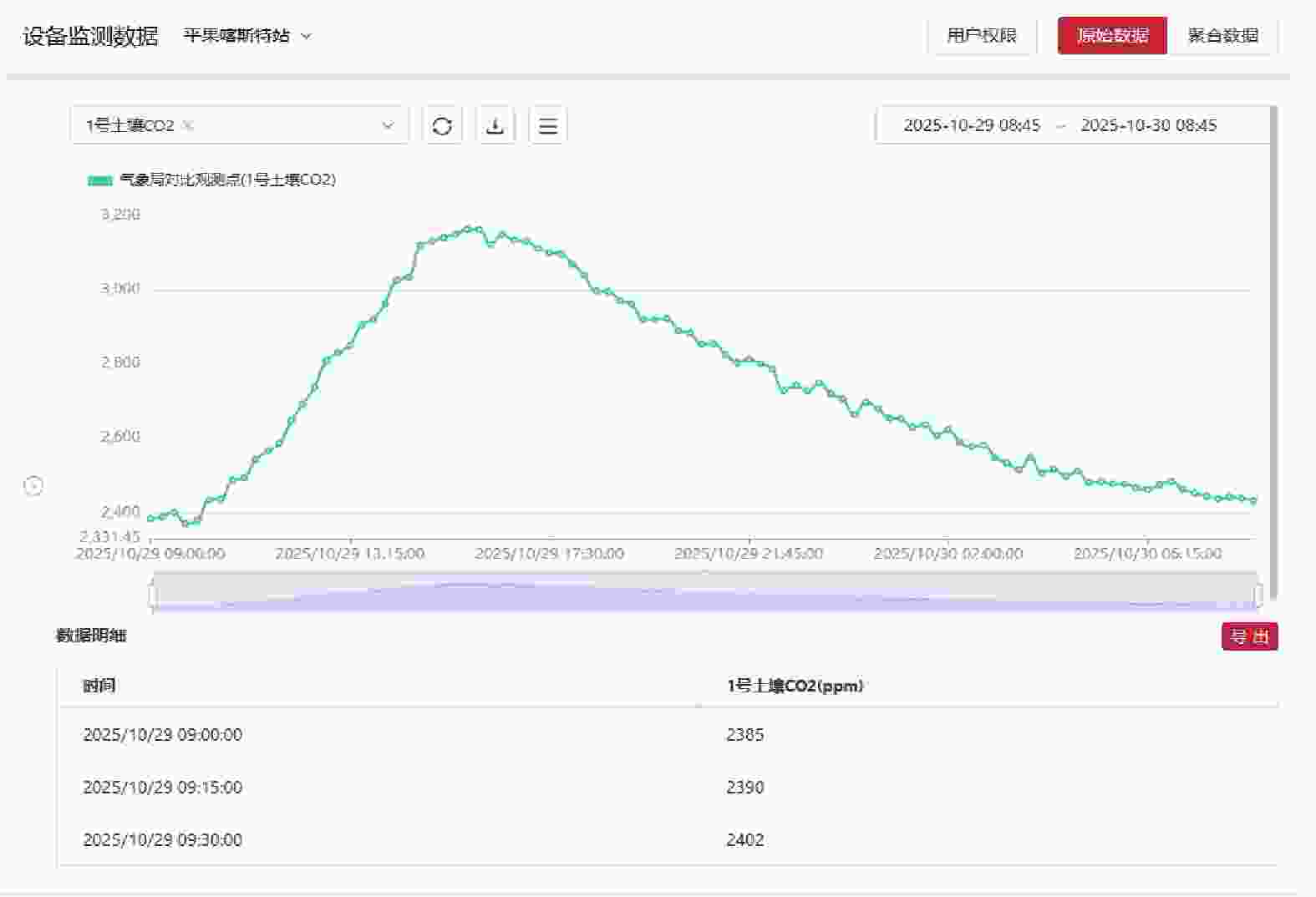

图 4 管理台-智慧运维

Figure 4. Management console-intelligent operations

下载: 全尺寸图片幻灯片

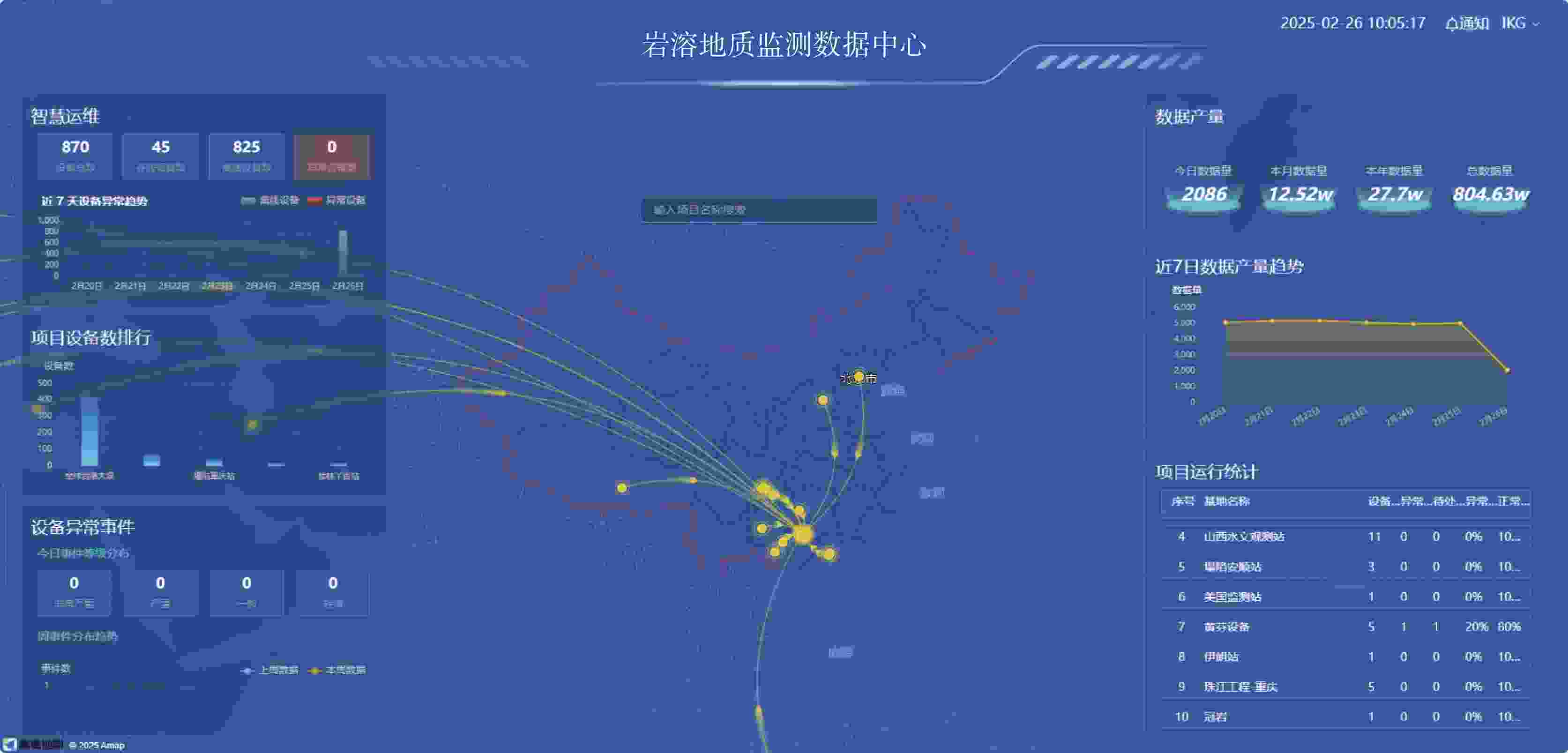

图 5 大屏首页

Figure 5. Large screen-homepage

下载: 全尺寸图片幻灯片

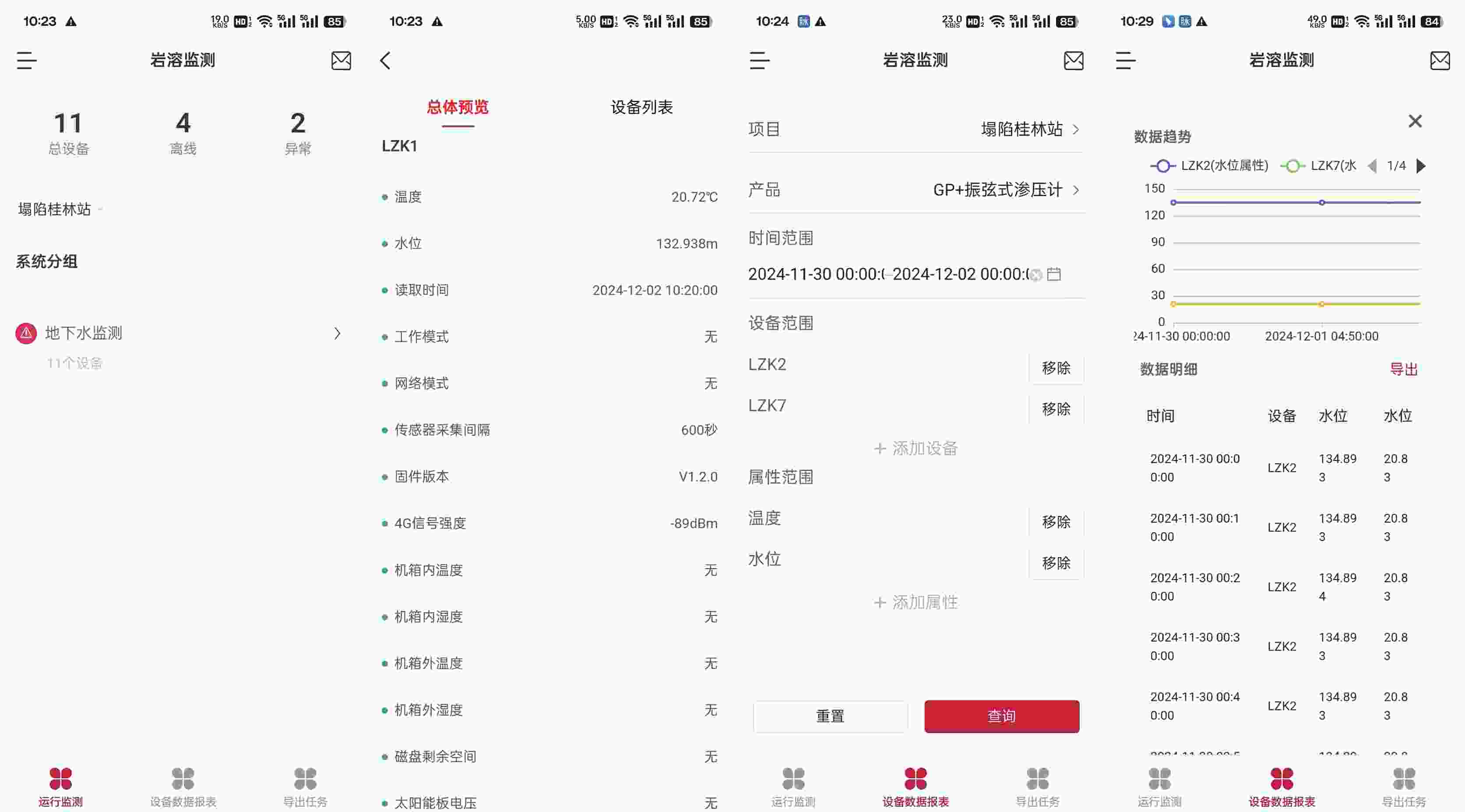

图 6 APP运行界面

Figure 6. APP operation interface

下载: 全尺寸图片幻灯片

表 1 LZK1数据采集统计

Table 1. LZK1 data collection statistics

统计时间计划采集数实际采集数缺失数据量数据完整率

2025年7月 4464 4464 0 100%

2025年6月 4464 4457 7 99.84%

2025年5月 4320 4319 1 99.97%

下载: 导出CSV
