综合探测技术在岩溶水库渗漏分析中的应用

樊宏伟; 杨星宇; 周火明; 郭喜峰; 黄奇波

doi:10.11932/karst20260206

综合探测技术在岩溶水库渗漏分析中的应用

doi: 10.11932/karst20260206

1.
长江科学院重庆分院, 重庆 400026
2.
中国地质科学院岩溶地质研究所, 广西桂林 541004

基金项目: 湖南省重大水利科技项目（XSKJ2023059-02）；重庆水利科技项目（CKSLK2022009）

详细信息

作者简介:
樊宏伟(1998-)，男，硕士，工程师，主要从事水工建筑物健康诊断、地球物理探测方面工作。E-mail：192302837@qq.com

通讯作者:
周火明(1966-)，男，硕士，教授级高级工程师，主要从事岩体力学、工程地质与水文地质勘测工作。E-mail：1152259016@qq.com。

中图分类号: TV697.3; P631
计量
- 文章访问数: 22
- HTML浏览量: 8
- PDF下载量: 13
- 被引次数: 0
出版历程
- 收稿日期: 2024-12-29
- 录用日期: 2025-06-03
- 修回日期: 2025-03-01
- 刊出日期: 2026-04-01

Application of comprehensive detection techniques in leakage analysis of karst reservoirs

1.
Chongqing Branch of Changjiang River Scientific Research Institute, Chongqing 400026, China
2.
Institute of Karst Geology , Chinese Academy of Geological Sciences, Guilin, Guangxi 541004, China

摘要

摘要: 通过区域岩溶水文地质调查、地球物理探测和地质钻探对太平水库库尾岩溶渗漏进行探测，对太平水库渗漏原因和渗漏特征提出新认识：水库区域范围宝塔组（O₂b）灰岩地层中发育一条NE－SW向横穿太平水库的地下河，在距离水库3.2 km的老龙洞出口排泄。左右岸落水洞发生塌陷后，库水通过岩溶管道快速渗漏至地下河，是导致库水位急剧下降的原因。地球物理探测结果显示库尾左右岸均有明显异常区域，且从左岸至右岸异常区域的高程逐渐降低, 符合地下河岩溶发育一般特征。结合钻孔验证结果认为, 太平水库库尾地下河发育高程为1516.36 （左岸）~1513.36 m（右岸）。研究成果可为太平水库后续防渗工作提供指导，并对岩溶地区类似水库的渗漏探测工作提供借鉴。
- 太平水库 /
- 岩溶渗漏 /
- 地下河 /
- 水文地质 /
- 地球物理探测 /
- 地质钻探
Abstract: The reservoir is located in Fengdu county, Chongqing Municipality. After impoundment, karst collapses occurred successively on both the left and right banks at the reservoir tail. Reservoir water rapidly leaked through sinkholes within the collapse pits, causing a sharp decline in the water level and severely impacting normal functioning of the reservoir.To identify the cause and characteristics of the leakage, this study employed a combination of regional karst hydrogeological surveys, geophysical exploration, and geological drilling techniques to systematically investigate the leakage problem at the reservoir tail. The following new insights were obtained: (1) Regional karst hydrogeological surveys indicate the presence of a NE–SW trending limestone belt of the middle Ordovician Baota formation (O₂b) traversing the reservoir tail. Karst development is highly pronounced within this layer, commonly featuring solution fissures, caves, and conduits. Field surveys identified multiple sinkholes distributed in a bead-like pattern along the strike of this limestone formation. Tracer tests confirmed the existence of an underground river flowing through the reservoir in a NE–SW direction, with its outlet at Laolong cave, located 3.2 km southwest of the reservoir. The longitudinal gradient of this underground river system is steep, with a vertical drop of approximately 130 m. The development of various karst features at the reservoir tail and the direction of groundwater flow are both influenced by this underground river system. Reservoir impoundment induced the collapses of sinkholes on both banks, allowing reservoir water to directly access into the underground river and discharge at Laolong cave. This has been identified as the fundamental cause of the sudden drop in the reservoir water level. (2) Controlled Source Audio-Frequency Magnetotellurics (CSAMT) and the High-Density Resistivity (HDR) method were selected as geophysical exploration techniques to characterize the spatial distribution of the underground river. These two methods complemented and mutually validated each other's findings. Three CSAMT survey lines were deployed. The results revealed a relatively enclosed low-resistivity zone extending from the left bank to the right bank, with elevations ranging from 1,510 m to 1,500 m, showing a gradual decrease in elevation from left to right. Additionally, three HDR survey lines were conducted. The results indicated underground river elevations of approximately 1,530 m at the low adjacent valley on the left bank, approximately 1,515 m at the left bank of the reservoir, and approximately 1,500 m at survey line yd-4 on the right bank mountain. The gradient of the karst conduit within the reservoir area is inferred to be 1.5% to 2.0%. The alignment of anomalous zones identified by both methods generally follows a NE–SW direction, consistent with the bedrock strike. Furthermore, the elevation of these anomalous zones gradually decreases from the left bank to the right bank, further confirming that the underground river primarily develops along the bedrock strike, flowing from NE to SW. (3) Geological boreholes were drilled based on geophysical anomalies. These boreholes revealed significant vertical karst development within the Baota formation limestone at the reservoir tail. Borehole CZK1 intersected a karst cave; the elevated position of this conduit and its proximity to a sinkhole on the right bank suggest that it is a branch conduit connecting the right bank sinkhole to the underground river. Borehole CZK3 encountered a cavity nearly three-meter high, located near the bottom of the Baota formation limestone at elevations between 1,519.26 m and 1,516.36 m. Water level monitoring in the boreholes indicated shallow water levels within the conduits and significant silt accumulation, supporting the interpretation that this feature represents the underground river karst conduit. (4) Based on integrated geophysical exploration and geological drilling, the elevation of the karst conduit floor of the underground river in the reservoir area ranges from 1,516.36 m on the left bank to 1,513.36 m on the right bank. The estimated conduit dimensions are approximately 2.7 m in width and 2.9 m in height. Near the reservoir head and surrounding areas, the Shizipu formation (O₂s) serves as a relatively impermeable layer. On the left bank, the underground river conduit near the reservoir tail passes through the Baota Formation limestone, where the burial depth of the relatively impermeable layer increases closer to the tail. Weakly karstified rock masses on this side act as the lower impermeability boundary. The recommended anti-seepage floor elevation for the left bank is approximately 1,516.0 m. (5) During the investigation phase of karst reservoirs, comprehensive regional karst hydrogeological surveys must be conducted to accurately characterize groundwater flow paths. Only through this approach can the impoundment conditions of the reservoir be clearly understood. In reservoir leakage investigations, relying solely on a single geophysical method or a single borehole to identify leakage pathways and directions is suggested be avoided.This study has elucidated the causes, pathways, and key channel characteristics of leakage at the reservoir. The findings provide a direct foundation for the subsequent design of anti-seepage engineering measures for this reservoir and offer valuable reference for the detection and prevention of similar leakage issues in reservoirs located in karst regions.
- Taiping reservoir /
- karst leakage /
- underground water /
- hydrogeology /
- geophysical detection /
- geological drilling

HTML

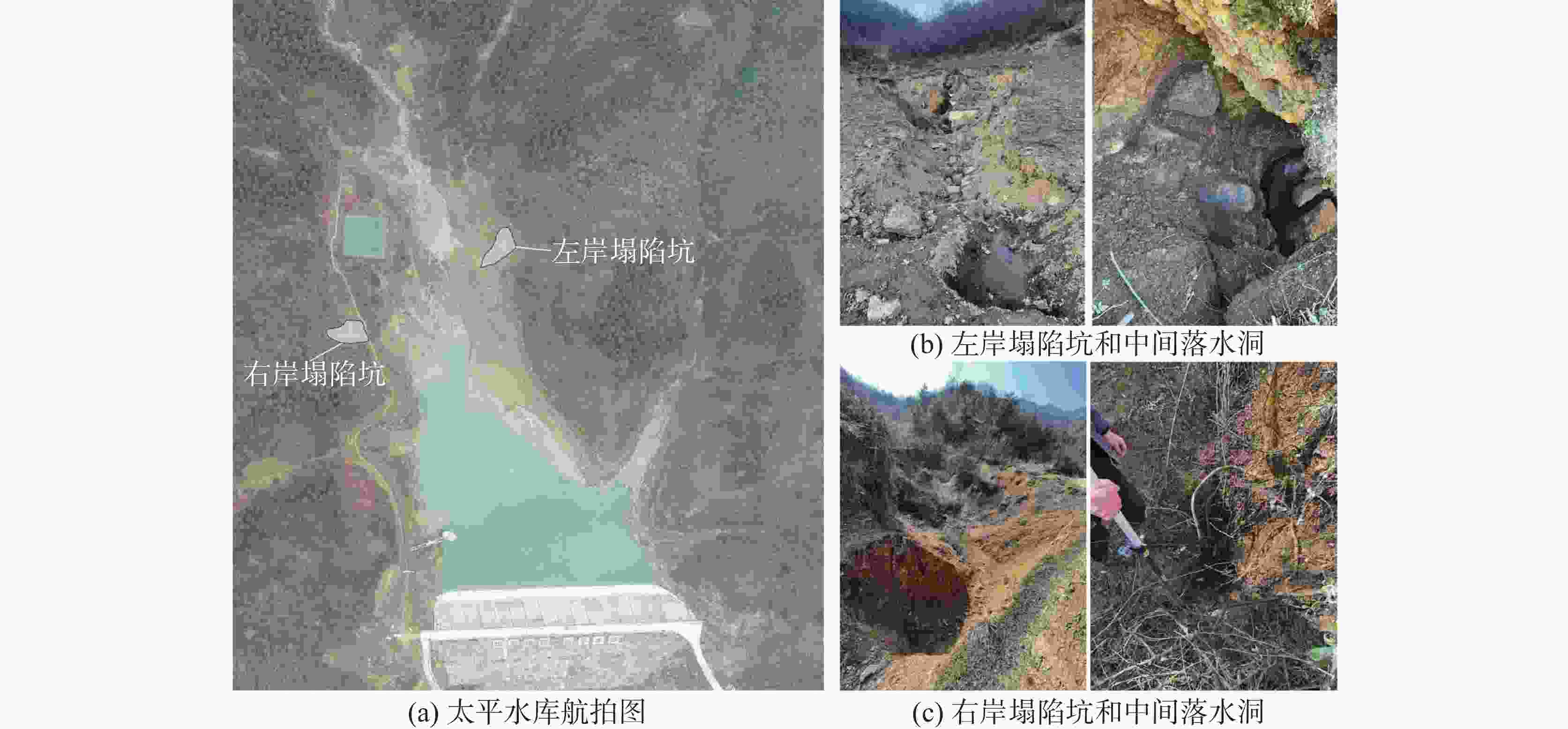

图 1 太平水库现状图

Figure 1. Natural landscape map of the reservoir

下载: 全尺寸图片幻灯片

图 2 太平水库区域落水洞分布图

Figure 2. Distribution of sinkholes in the Taiping reservoir area

下载: 全尺寸图片幻灯片

图 3 太平水库区域地质简图

Figure 3. Regional geological map of the Taiping reservoir area

下载: 全尺寸图片幻灯片

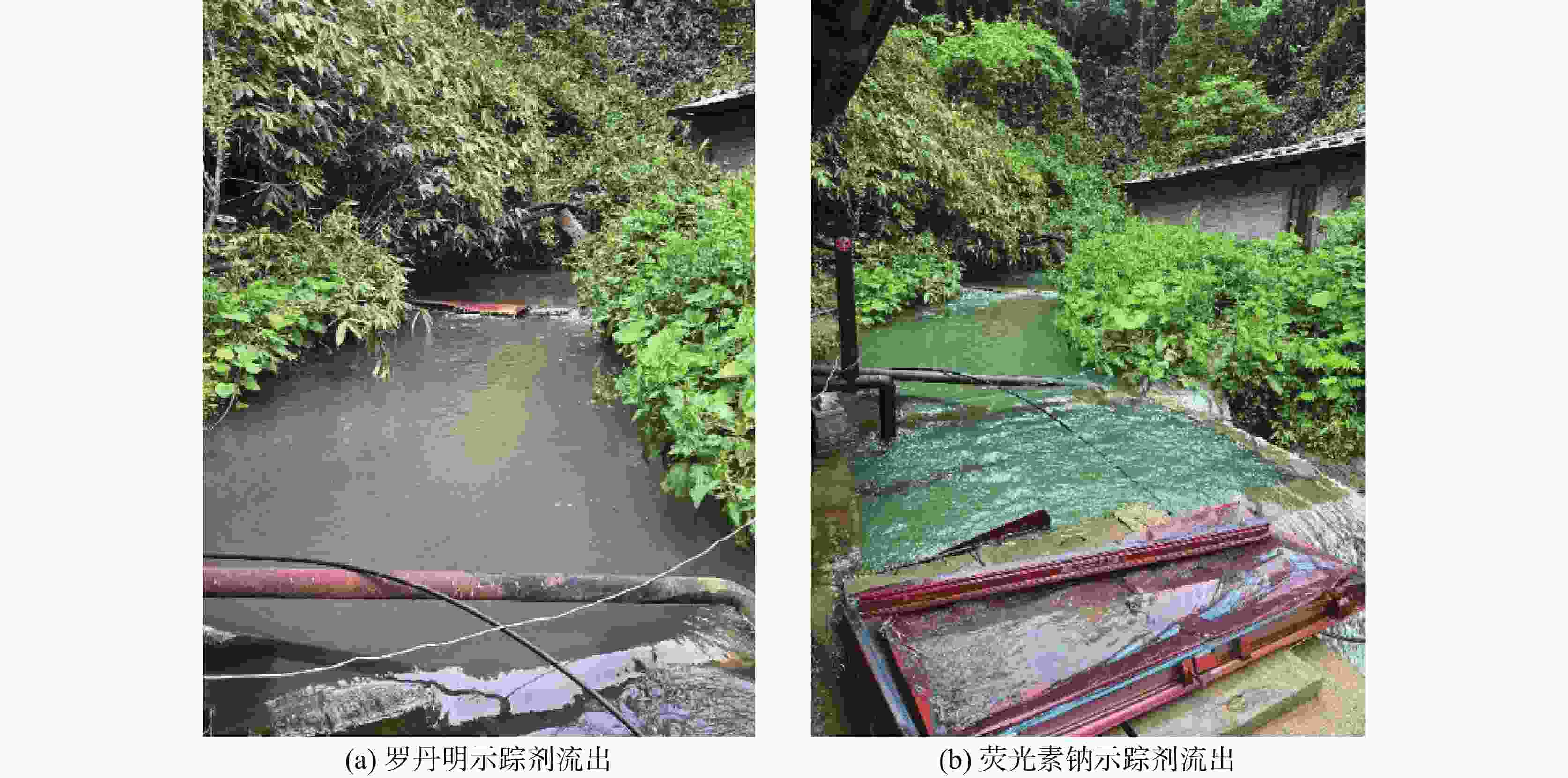

图 4 示踪剂在老龙洞流出

Figure 4. Tracer flowing out from Laolong Cave

下载: 全尺寸图片幻灯片

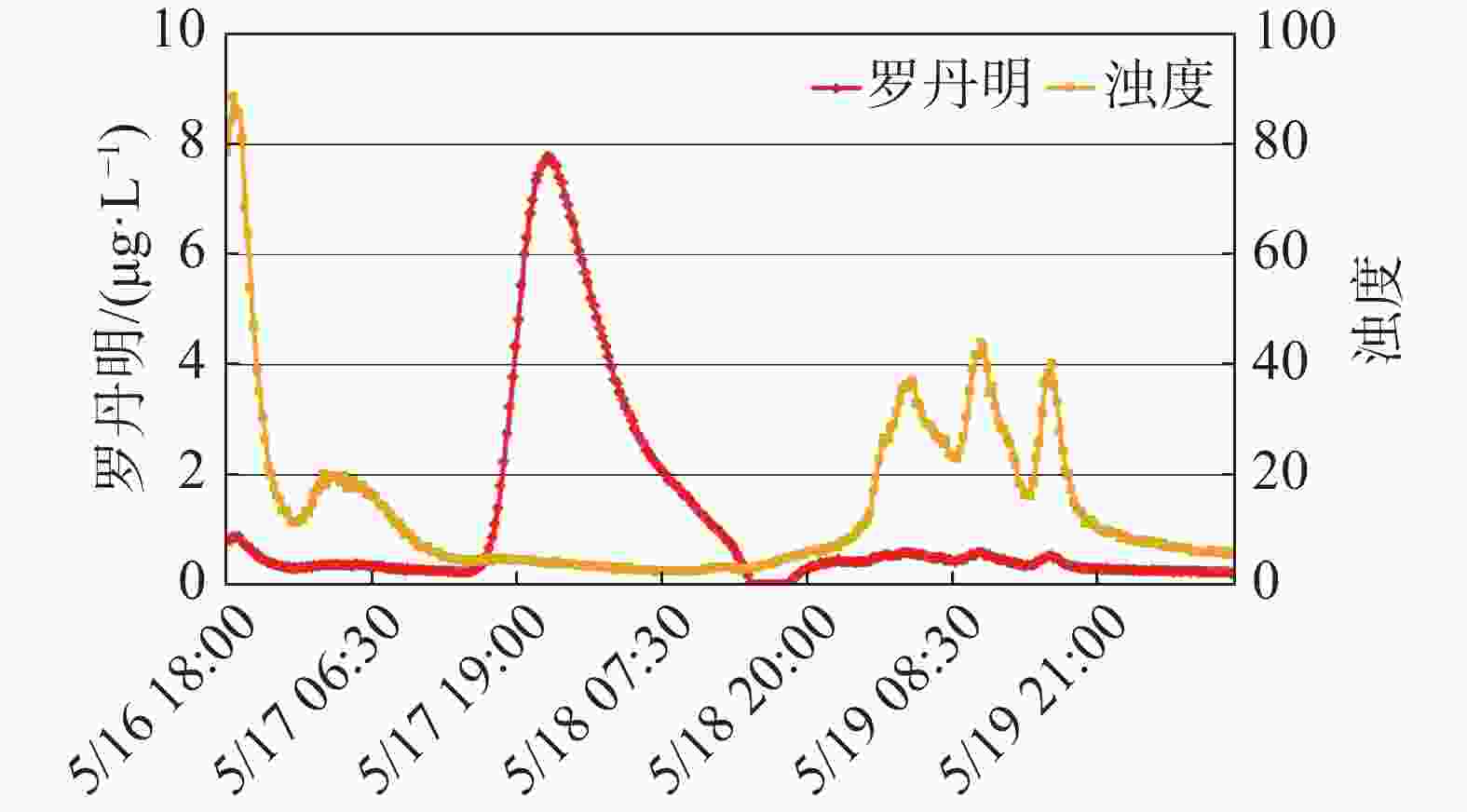

图 5 罗丹明穿透曲线

Figure 5. Penetration curve of rhodamine

下载: 全尺寸图片幻灯片

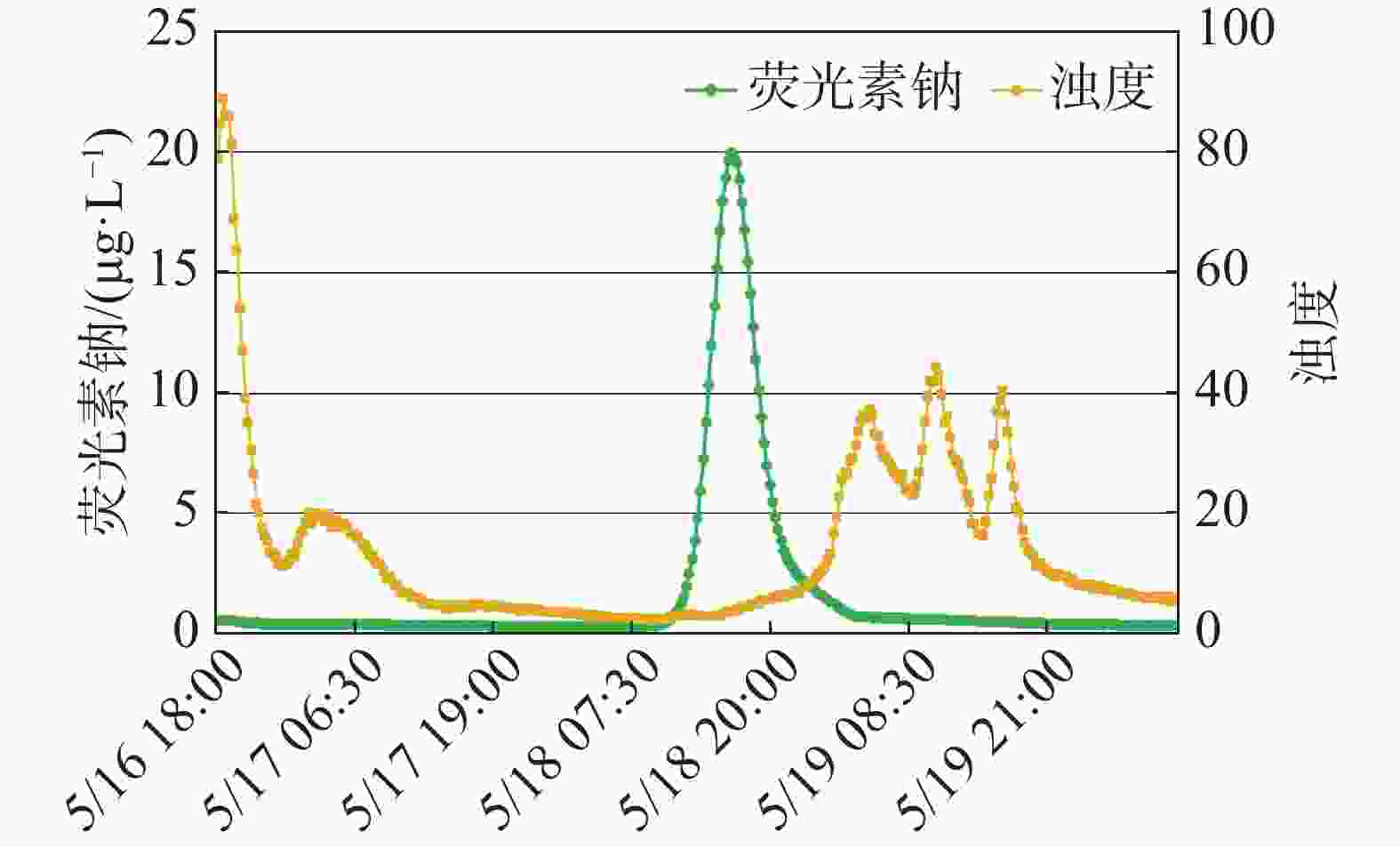

图 6 荧光素钠穿透曲线

Figure 6. Penetration curve of fluorescein sodium

下载: 全尺寸图片幻灯片

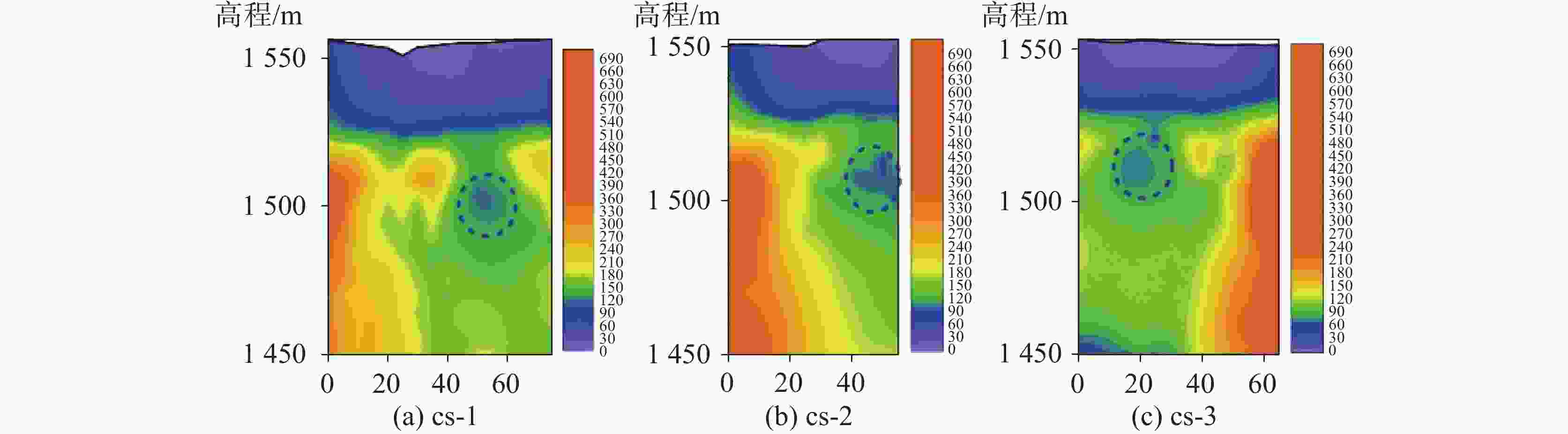

图 7 可控源音频大地电磁法探测结果

Figure 7. Detection results of CSAMT

下载: 全尺寸图片幻灯片

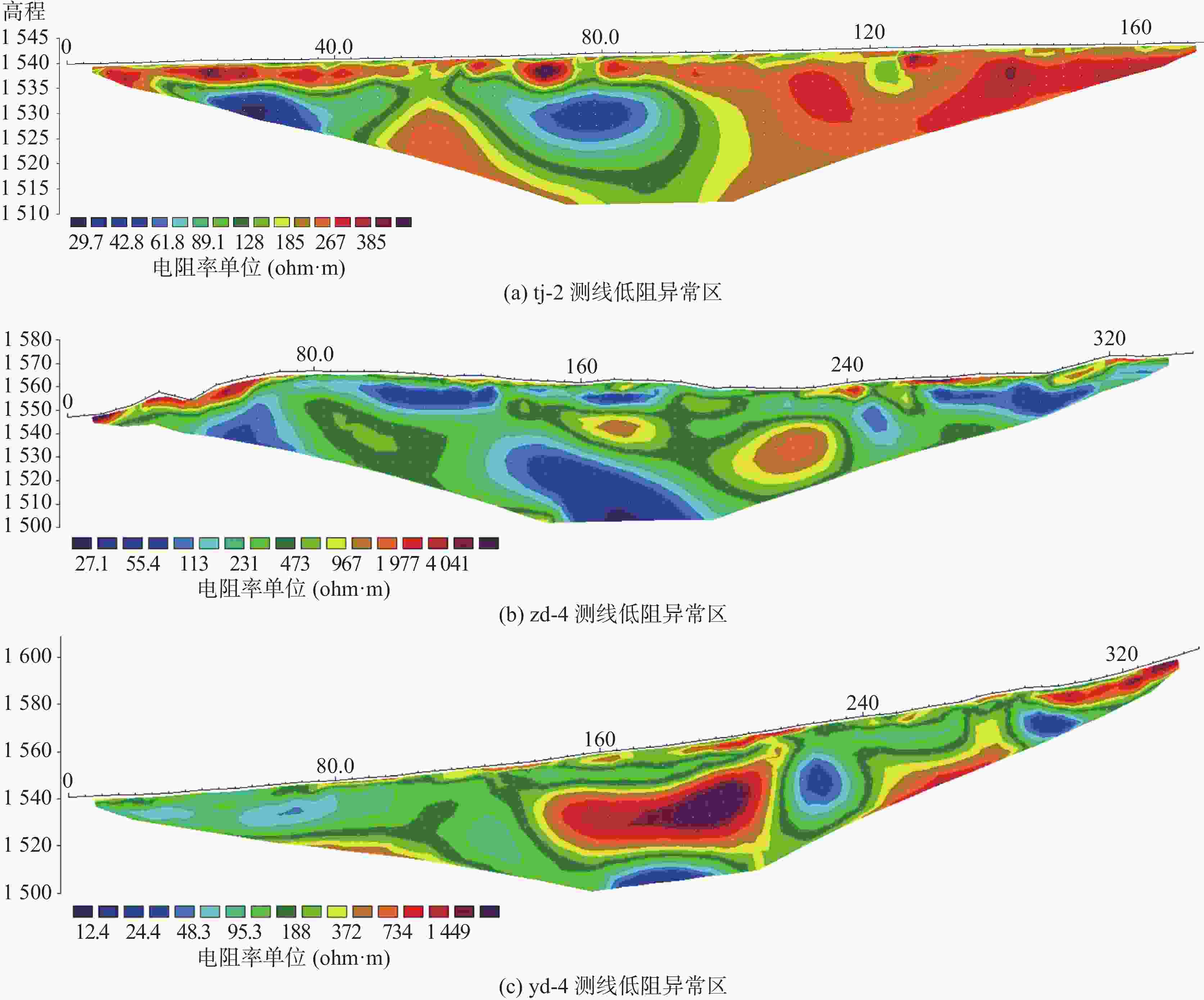

图 8 高密度电法探测结果

Figure 8. Detection results of HDR

下载: 全尺寸图片幻灯片

图 9 物探线布置与岩溶发育的平面分布图

Figure 9. Plan layout of geophysical prospecting lines and karst development

下载: 全尺寸图片幻灯片

图 10 钻孔岩芯及岩溶管道钻孔电视图

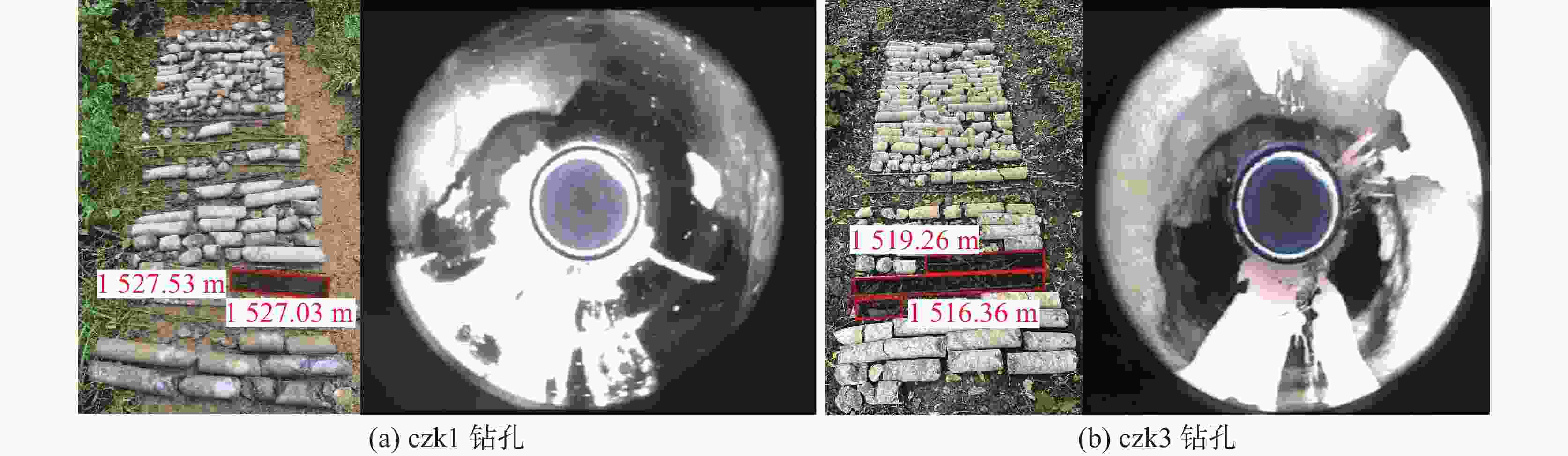

Figure 10. TV Images of drilled cores and boreholes in karst conduits

下载: 全尺寸图片幻灯片

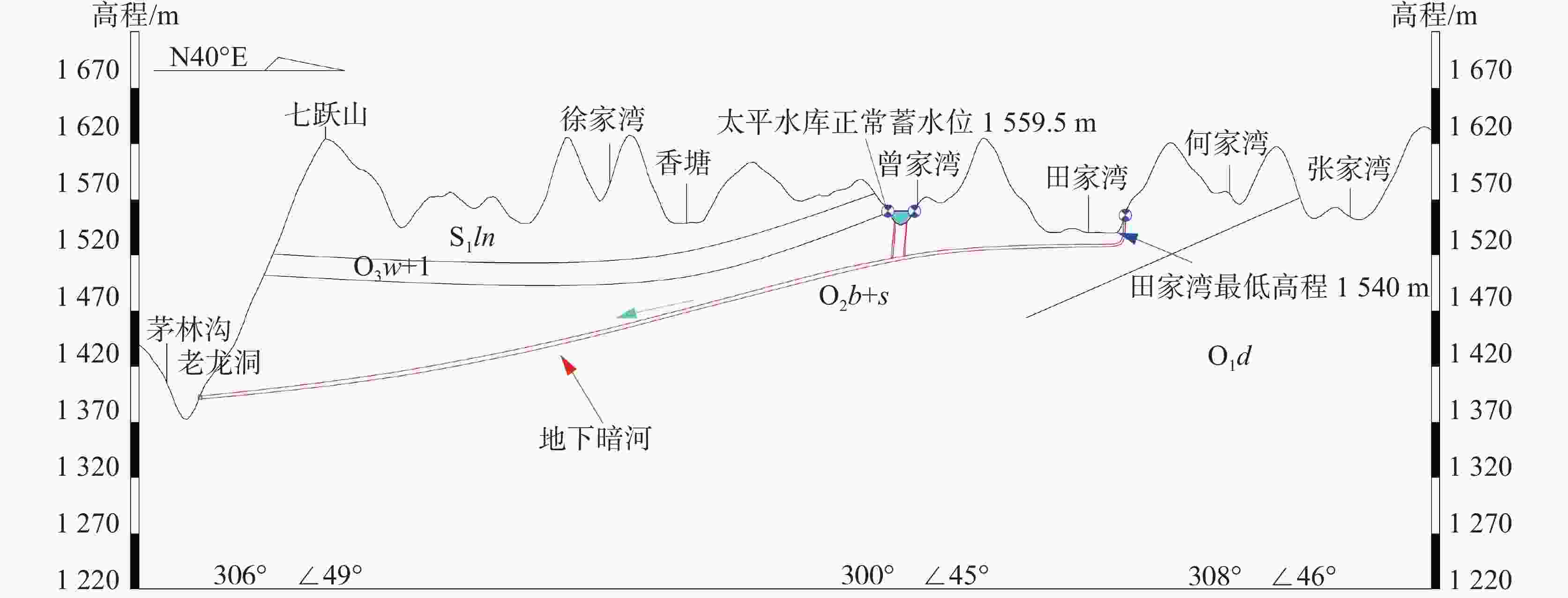

图 11 地下河在左岸地层中的位置分布示意图

Figure 11. Schematic diagram of underground river distribution within the left bank- strata

下载: 全尺寸图片幻灯片

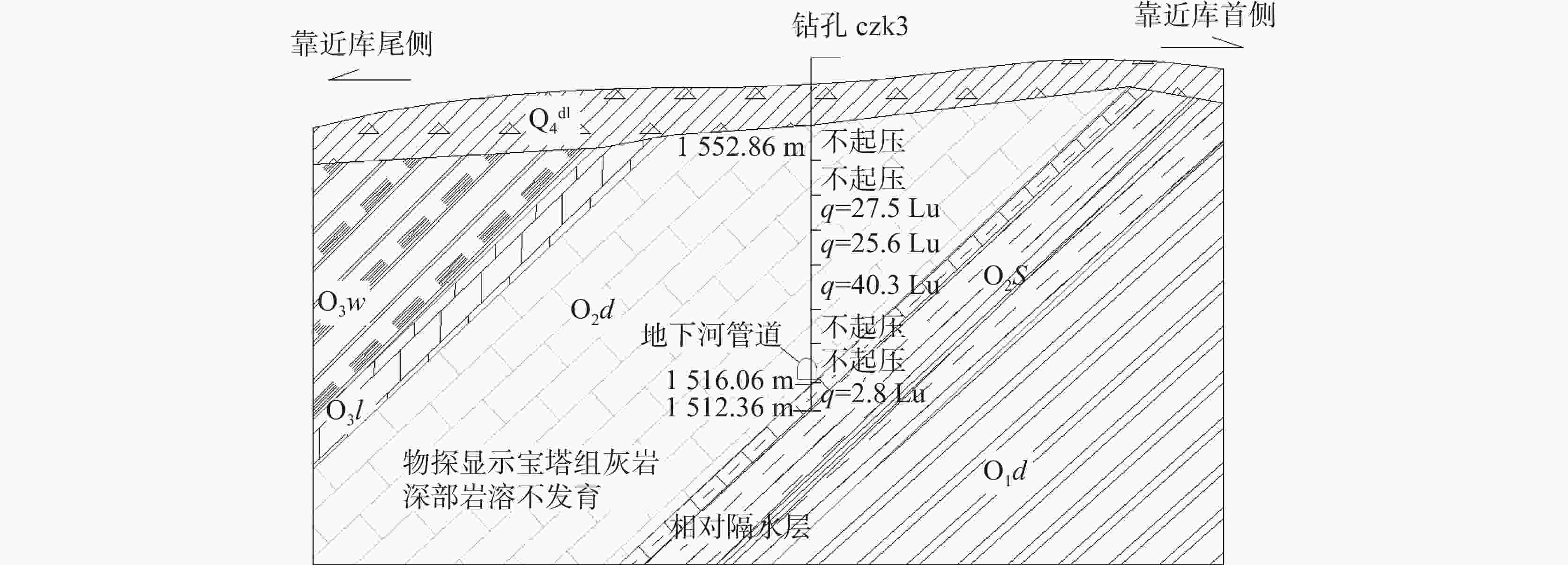

图 12 太平水库区域地下河发育情况

Figure 12. Development of underground rivers in the Taiping reservoir area

下载: 全尺寸图片幻灯片

表 1 水库库区出露地层岩性表

Table 1. Lithology of the reservoir area

系	统	组	地层代号		地层厚度/m	岩性简述
第四系			Q		0~20.0	冲洪积层，主要为红褐色、黄褐色粉质黏土夹碎石；残坡积层为灰黄色粉质黏土夹全风化页岩
志留系	下统	龙马溪组	S₁ln		486.0~613.0	上段为灰绿、黄绿色泥质胶结的粉砂岩、粉砂质页岩及页岩，下段黄绿色粉砂质页岩及页岩；主要分布于库尾
奥陶系	上统	五峰组	O₃w		11.6~12.8	灰褐色页岩，黑色炭质页岩，含碳量高，手摸染手，在陈家湾冲沟处出露
	上统	临湘组	O₃l		4.2~6.1	灰至深灰色泥灰岩，纹理状构造，局部含白云质；主要分布在库尾
	中统	宝塔组	O₂b		28.8~40.1	灰白色、灰色裂纹状、龟裂纹灰岩，分布在库尾
	中统	十字铺组	O₂s		10.0~20.4	灰至深灰色泥质灰岩，钙质泥岩，局部夹灰黄色粉砂质页岩，分布在库尾
	下统	大湾组	O₁d³	O₁d^3-3	3.5~16.3	黄褐色页岩，薄层状构造，分布于库首
				O₁d^3-2	14.8	深灰色页岩，含钙质胶结，局部含生物化石
				O₁d^3-1	20.0	灰黄色、灰绿色薄层状页岩，薄层状构造，夹深褐色生物碎屑薄层
			O₁d²		19.2	灰白色灰岩，厚层构造
			O₁d¹		87.0	上部黄绿色页岩，中部深灰色泥质生物灰岩，下部灰岩页岩互层，分布于库首

下载: 导出CSV

表 2 示踪剂投放信息表

Table 2. Information on the tracer delivery

示踪剂	投放位置	投放点高程/m	运移距离/m	投放量/g
荧光素钠	田家湾落水洞	1554.79	4360	300
罗丹明	水库左岸落水洞	1548.80	3370	310

下载: 导出CSV

表 3 地球物理探测测线布设参数

Table 3. Layout parameters for geophysical detection lines

探测技术	测线名称	布置位置	测线长/m	探测方向
可控源音频大地电磁法	cs-1	河床右岸	75.0	库首至库尾
	cs-2	河床中间	55.0	库首至库尾
	cs-3	河床左岸	65.0	库尾至库首
高密度电法	tj-2	左侧田家湾	172.5	库首至库尾
	zd-4	库尾左岸	345.0
	yd-4	右岸	345.0

下载: 导出CSV

表 4 钻孔揭示岩溶发育情况表

Table 4. Karst development revealed by boreholes

孔号	孔口高程/m	钻进深度/m	溶蚀发育高程/m	掉钻高程/m	钻孔漏水位置/m	地下水位/m
czk1	1560.73	45.4	1544.13~1536.43 1531.73~1526.73	1538.13~1537.23 1527.53~1527.03	1543.93	1527.20
czk2	1551.87	30.7	1547.42~1539.62	无掉钻	全返水	1546.32
czk3	1559.66	47.3	1552.86~1544.96 1530.26~1516.36	1552.56~1552.06 1548.96~1548.66 1548.16~1547.86 1545.36~1544.96 1526.16~1525.96 1519.26~1516.36	1552.00	1516.44

下载: 导出CSV
