Identification and development characteristics analysis of underwater rock-cells in the karst bank slope of the Wu Gorge section,Three Gorges Reservoir Area
-
摘要: 三峡库区长期性水位波动引起的岩溶岸坡溶蚀劣化是危岩崩塌灾害的重要诱因，查明涉水危岩带基底岩腔发育特征是重大高位崩塌灾害隐患识别的技术基础。文章选取三峡库区巫峡段为研究区域，采用多波束测深系统结合三维声呐点云数据融合分析技术，构建了一种库区岩溶岸坡水下岩腔隐患探测与识别技术方法，查明了研究区水下岩腔空间分布规律和发育特征。结果表明：（1）巫峡段共发育水下岩腔24处，66.7%与涉水危岩带共生，其中箭穿洞、黄岩窝及曲子滩危岩带发育密度最高。（2）水下岩腔平面形态有倒置漏斗形和椭圆形两类，前者受竖向构造节理扩展过程控制，后者受“溶蚀–崩塌”灾变耦合过程控制。（3）水下岩腔的发育受到地层岩性、斜坡结构和褶皱构造的多因素协同控制，岩性上集中于三叠系嘉陵江组三段（T1j3）薄–中层灰岩夹泥质灰岩（占比62.5%），构造上在神女峰背斜、青石背斜核部地层接触带以及神女溪—官渡口向斜南翼形成了3个优势发育区，斜坡结构上以水平坡（41.7%）和斜交坡（29.2%）为主，大规模岩腔主要发育在斜交坡中。研究结果精准地掌握了三峡库区巫峡段危岩消落带水下岩腔发育状况，为后续开展针对性危岩监测、加固等防护措施提供了科学依据。
-
关键词:
- 多波束声呐 /
- 水下地形测量 /
- 危岩体 /
- 消落带 /
- 岩溶岸坡水下岩腔识别
Abstract:The Wu Gorge section of the Three Gorges Reservoir Area is located in the border zone between the Daba Mountains in northeastern Chongqing and the mountains in western Hubei, administratively under the jurisdiction of Wushan county in Chongqing, about 400 kilometers away from the Chongqing urban area. The area is located in the karst mountainous area, affected by dissolution, unloading and geological tectonics, with a complicated geological environment, which has formed a large number of columnar or plate-like steeply standing dangerous rock bodies. Under the cyclic fluctuation of reservoir water level (145–175 m), stress release of rock body and rainfall-groundwater seepage coupling, the rock body of the bank slope undergoes multiple deterioration processes such as chemical erosion/dissolution, mechanical transportation and stress corrosion, which leads to strong deterioration of the damage of the rock body at the base of the hazardous rock body.With regard to the deterioration mechanism of karst bank slopes in the reservoir area, studies have revealed the control effect of water level fluctuation on the deterioration of rock bodies by means of on-site investigation, in-situ testing, and indoor experiments. The results reveal that reservoir water fluctuation accelerates the differential dissolution of carbonate rocks by changing the CO2 partial pressure and water-rock contact time; in addition, hydraulic hollowing results in the continuous transportation of weak interlayers and fissure fill, forming a rock-cell structure extending into the mountain mass. Although existing studies have already explained the chemical-mechanical coupling mechanism of rock degradation in the draw down zone of bank slopes, there is still a lack of systematic knowledge about the development characteristics of submerged rock-cells on bank slopes and their influence on the long-term stability of the upper critical rocks. Relevant studies have shown that the basal rock cavity structure of high-steep slopes is both a sensitive indicator of the accumulation of rock damage and a key potential boundary of rock destabilization, and the morphology of the basal rock cavity and the depth of the cavity development have a significant controlling effect on the fracture damage mode and destabilization mechanism of large-scale collapses. However, due to the limitation of detection technology, it is difficult to obtain the distribution and geometrical parameters (e.g., cavity size and cavity depth) of cavities in the submerged section (below 145 m) of the bank slope drawdown zone in the traditional geological surveys, which restricts the understanding of the long-term stability of water-related hazardous rocks. In recent years, Multi-Beam Echo Sounding System (MBES) has provided a new way to recognize complex underwater structures with high accuracy by using high-density topographic data acquisition capability. In this paper, the Wu Gorge section of the Three Gorges Reservoir Area is selected as the study area, and the MBES combined with three-dimensional sonar point cloud data fusion analysis technology is used to construct a technical method for detecting and identifying underwater rock cavities in karst slopes in the reservoir area, and identify the spatial distribution pattern and developmental characteristics of the underwater rock cavities in the study area. The results show that: (1) A total of 24 underwater rock cells are developed in the Wu Gorge, with 66.7% coexisting with water-related unstable rock zones, particularly in the Jianchuandong, Huangyanwo, and Quzitan unstable rock zones exhibiting the highest density. (2) The planar morphologies of underwater rock cells are classified as inverted funnel-shaped and elliptical, with the former controlled by vertical tectonic joint propagation and the latter governed by a coupled "dissolution-collapse" catastrophic process. (3) The development of underwater rock cells is influenced by multiple factors, including lithology, slope structure, and fold tectonics. Lithologically, they are concentrated in the third member of the Jialingjiang Formation (T1j3) of the Triassic period, comprising thin to medium-bedded limestone interbedded with argillaceous limestone (accounting for 62.5%). Tectonically, three predominant developmental zones are formed at the contacts of the Shennvfeng anticline, Qingshi anticline core strata, and the southern wing of the Shennvxi-Guandukou syncline. In terms of slope structure, horizontal slopes (41.7%) and oblique slopes (29.2%) dominate, with large-scale underwater rock cells primarily developing on oblique slopes. These findings provide precise insights into the developmental status of underwater rock cells in the Wu Gorge of the Three Gorges Reservoir Area, offering a scientific basis for subsequent targeted rockfall monitoring, reinforcement, and other protective measures. -

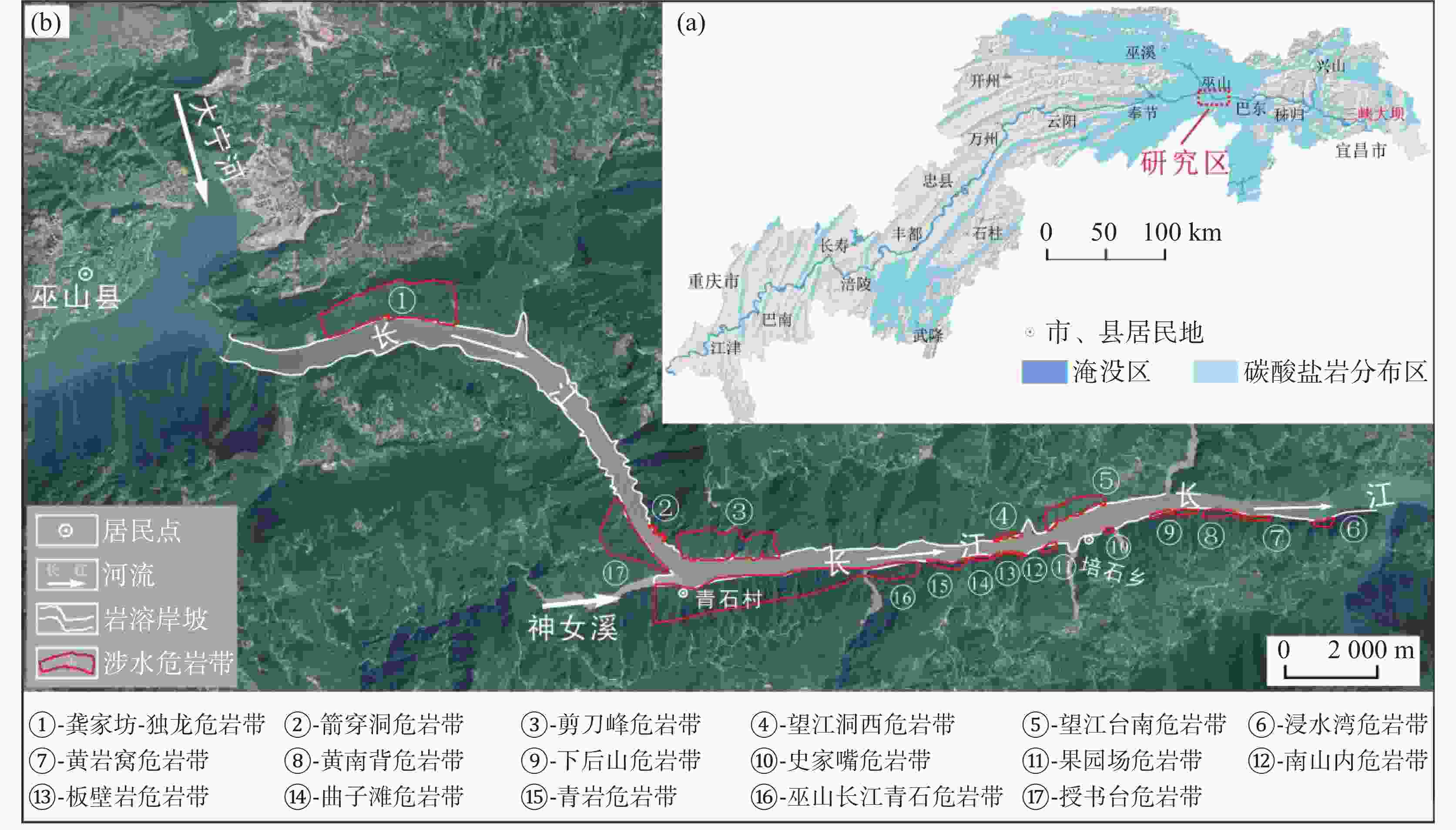

图 1 区域岩溶分布图（a）；巫峡段概况图（b）
Figure 1. Regional karst distribution map(a) ; Regional overview of the Wu Gorge(b)

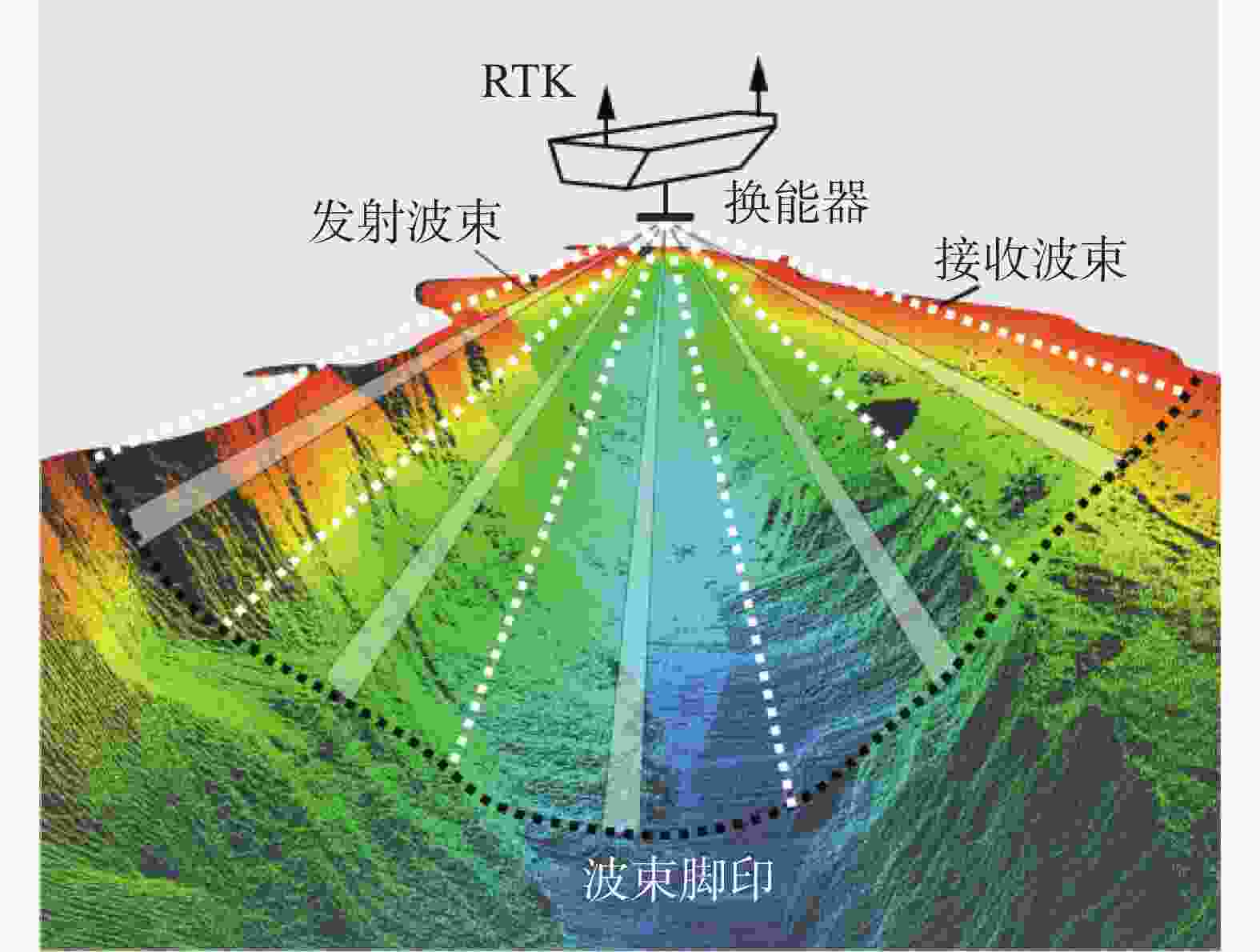

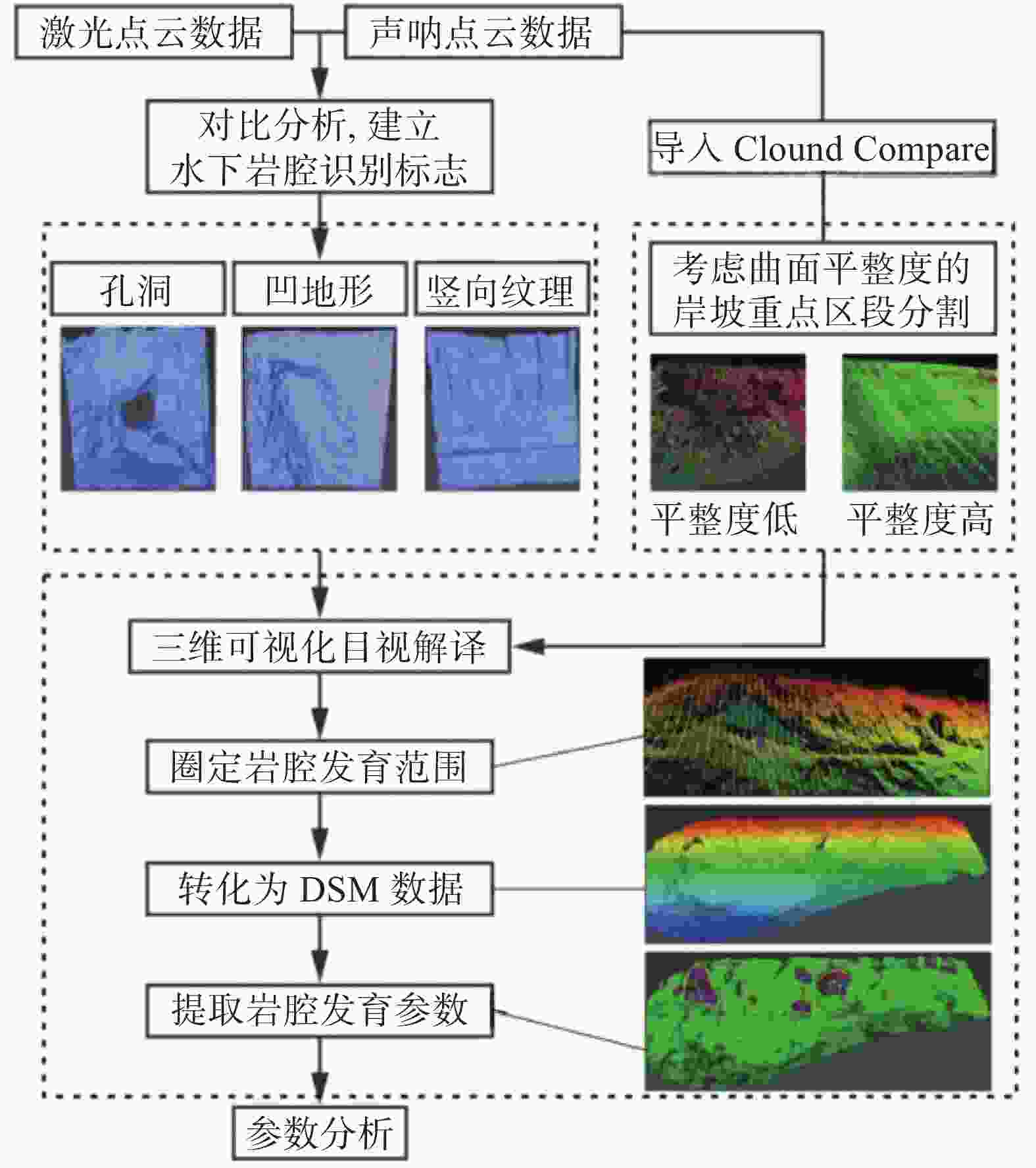

图 3 水下岩腔识别过程示意图
Figure 3. Schematic diagram of the identification process of underwater rock-cells

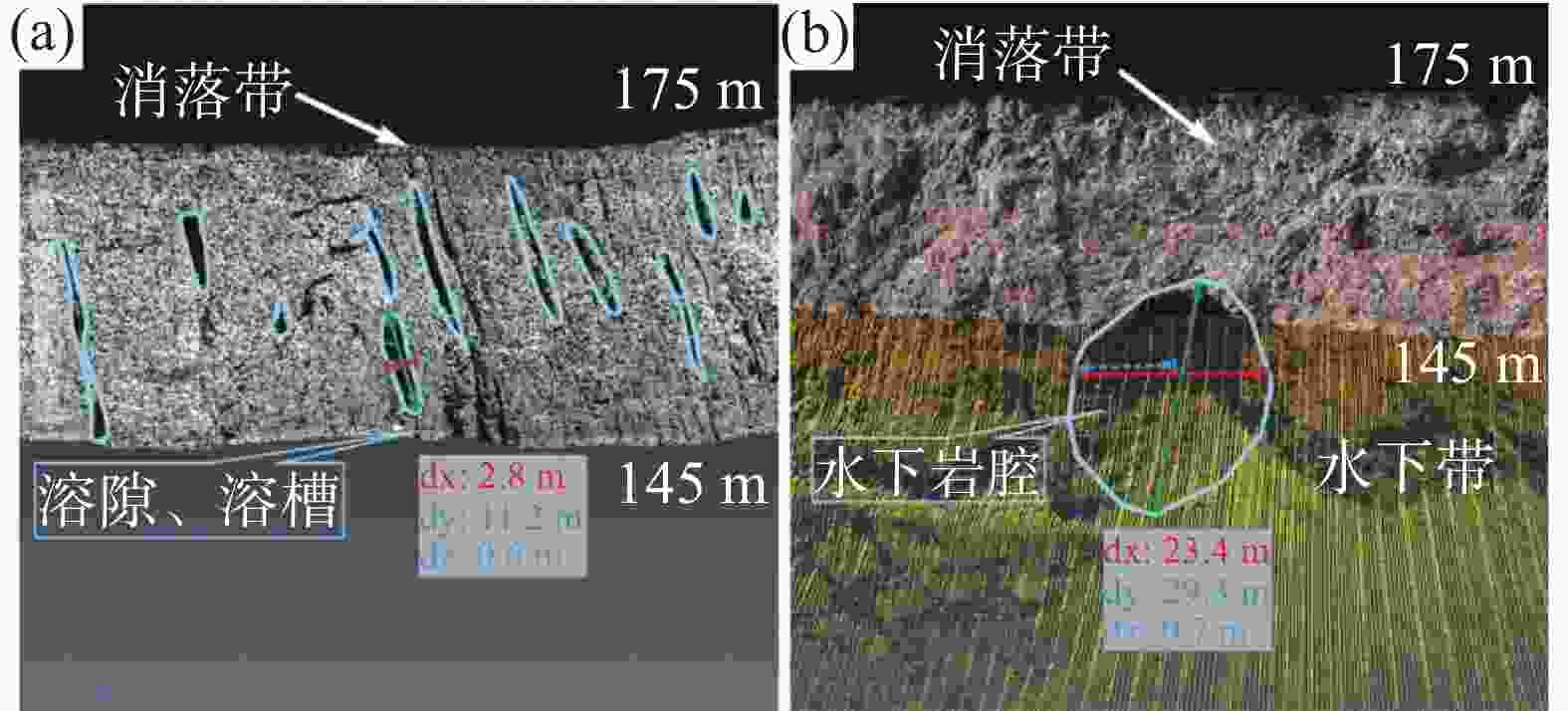

图 4 水下岩腔识别和参数提取
Figure 4. Identification and parameter extraction of underwater rock-cells

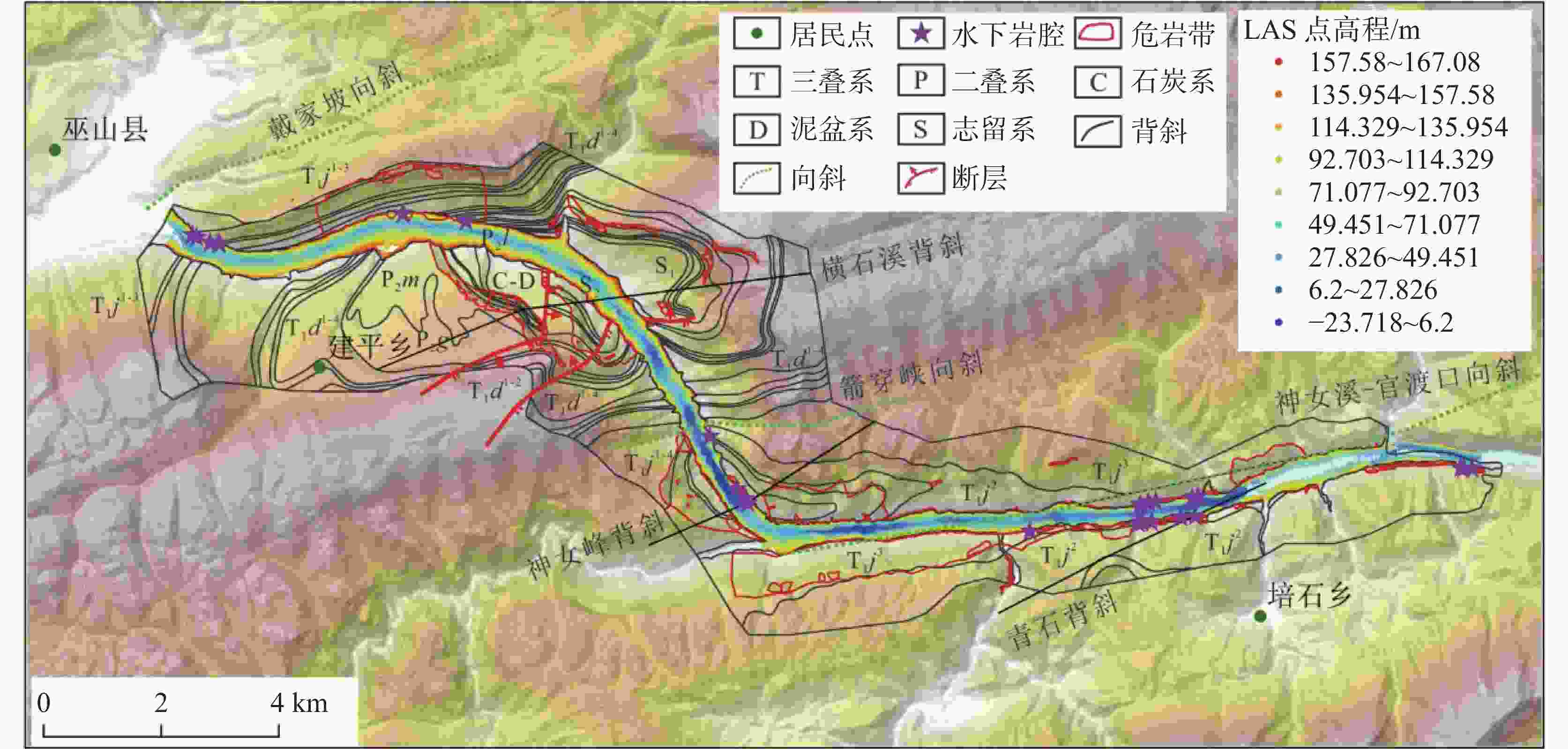

图 5 岩溶岸坡水下岩腔分布图
Figure 5. Distribution map of underwater rock-cellst in the karst bank slopes

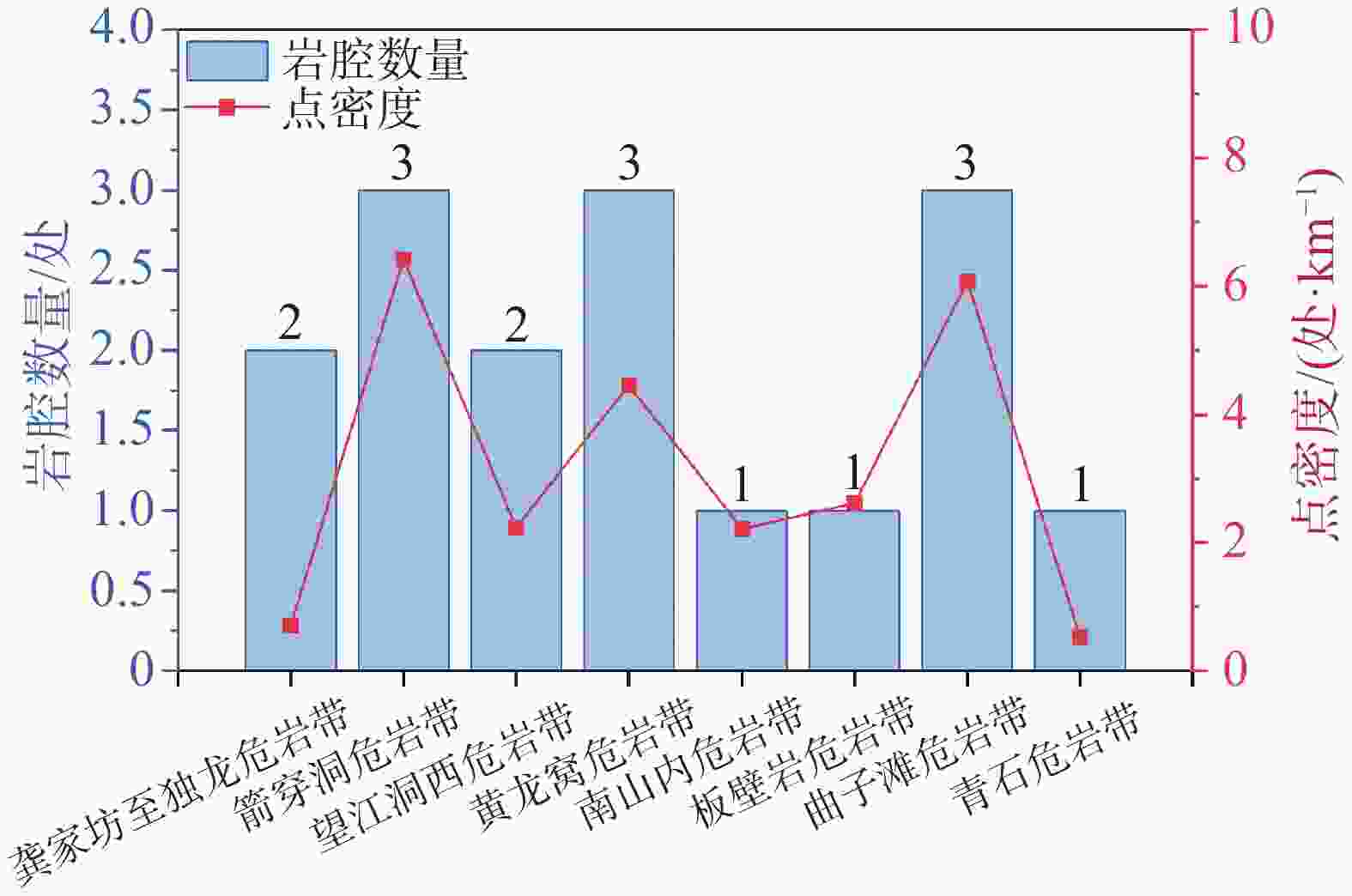

图 6 涉水危岩带水下岩腔分布图
Figure 6. Distribution map of underwater rock-cells in water-related unstable rock zones

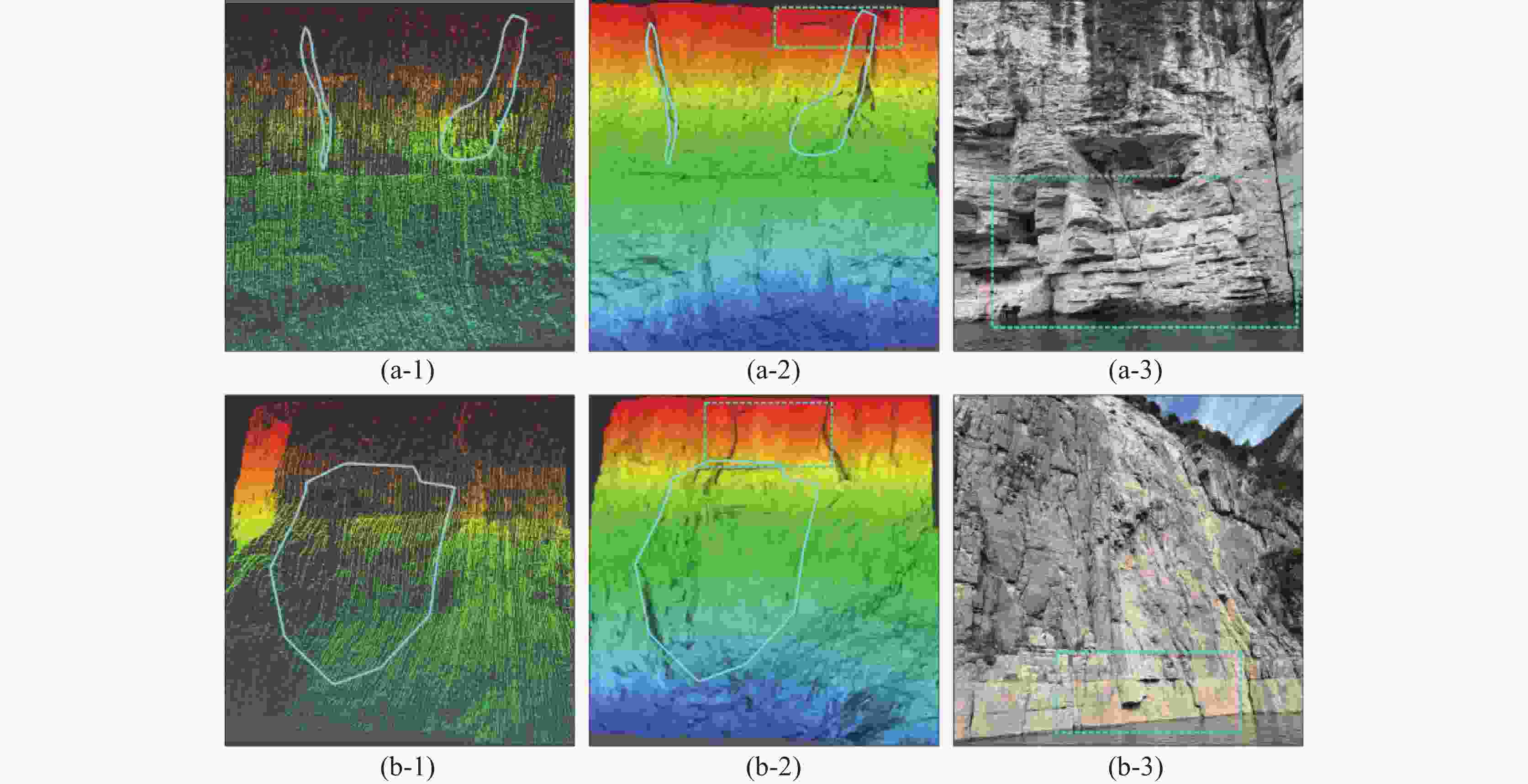

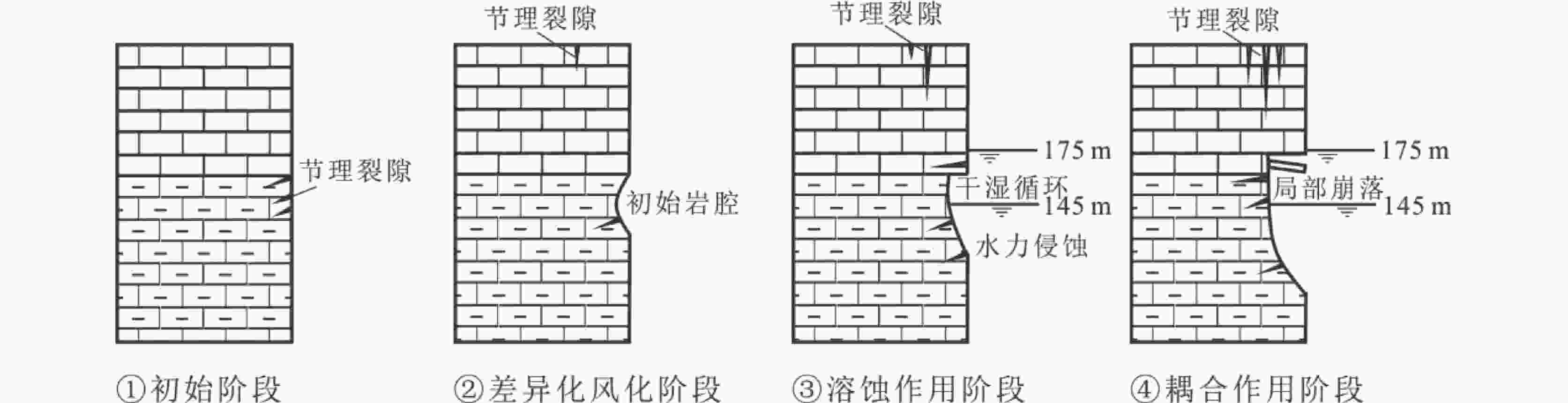

图 7 水下岩腔发育形态特征
Figure 7. Morphological characteristics of underwater rock-cells development

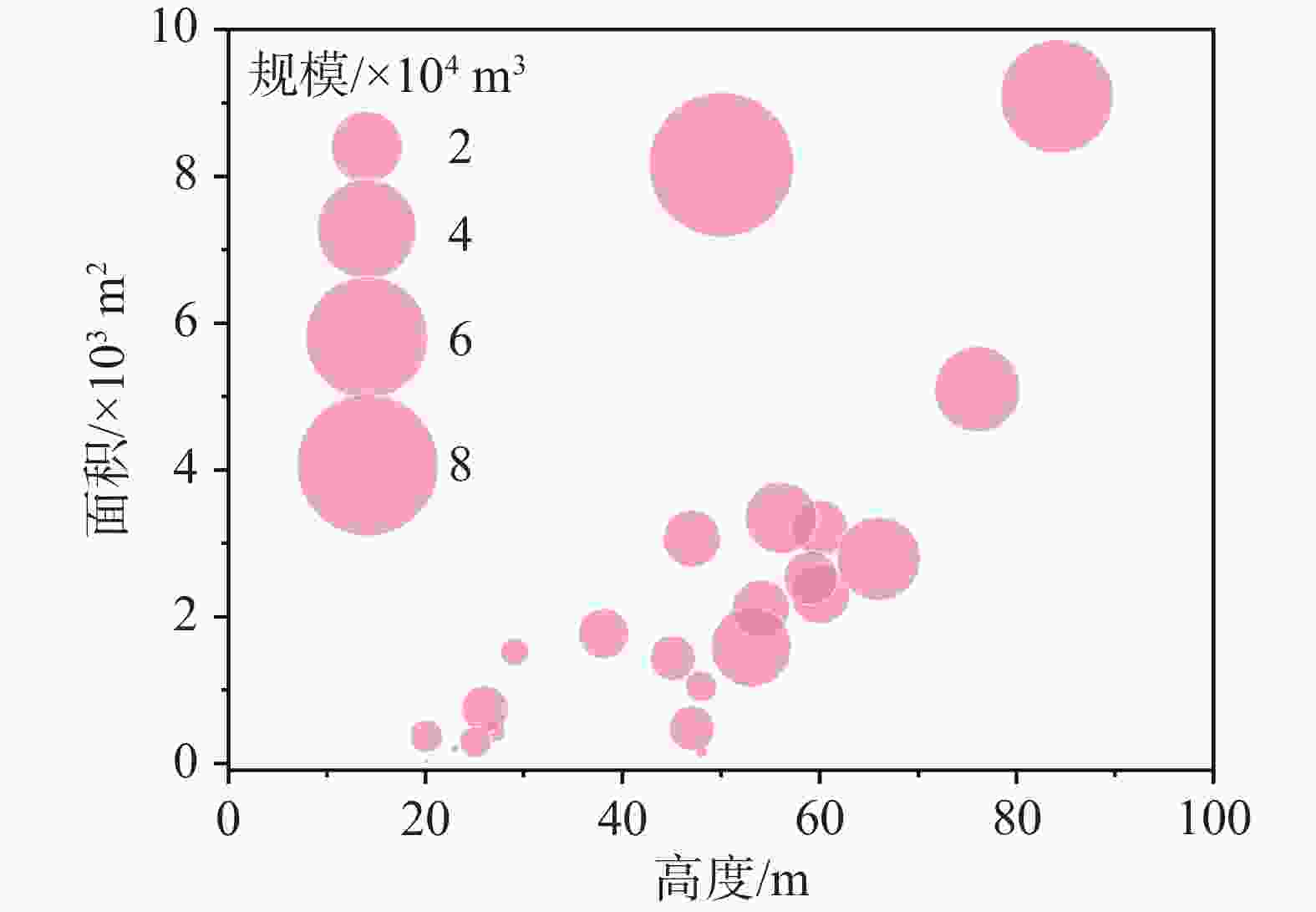

图 8 水下岩腔几何形态参数
Figure 8. Geometrical morphological parameters of underwater rock-cells

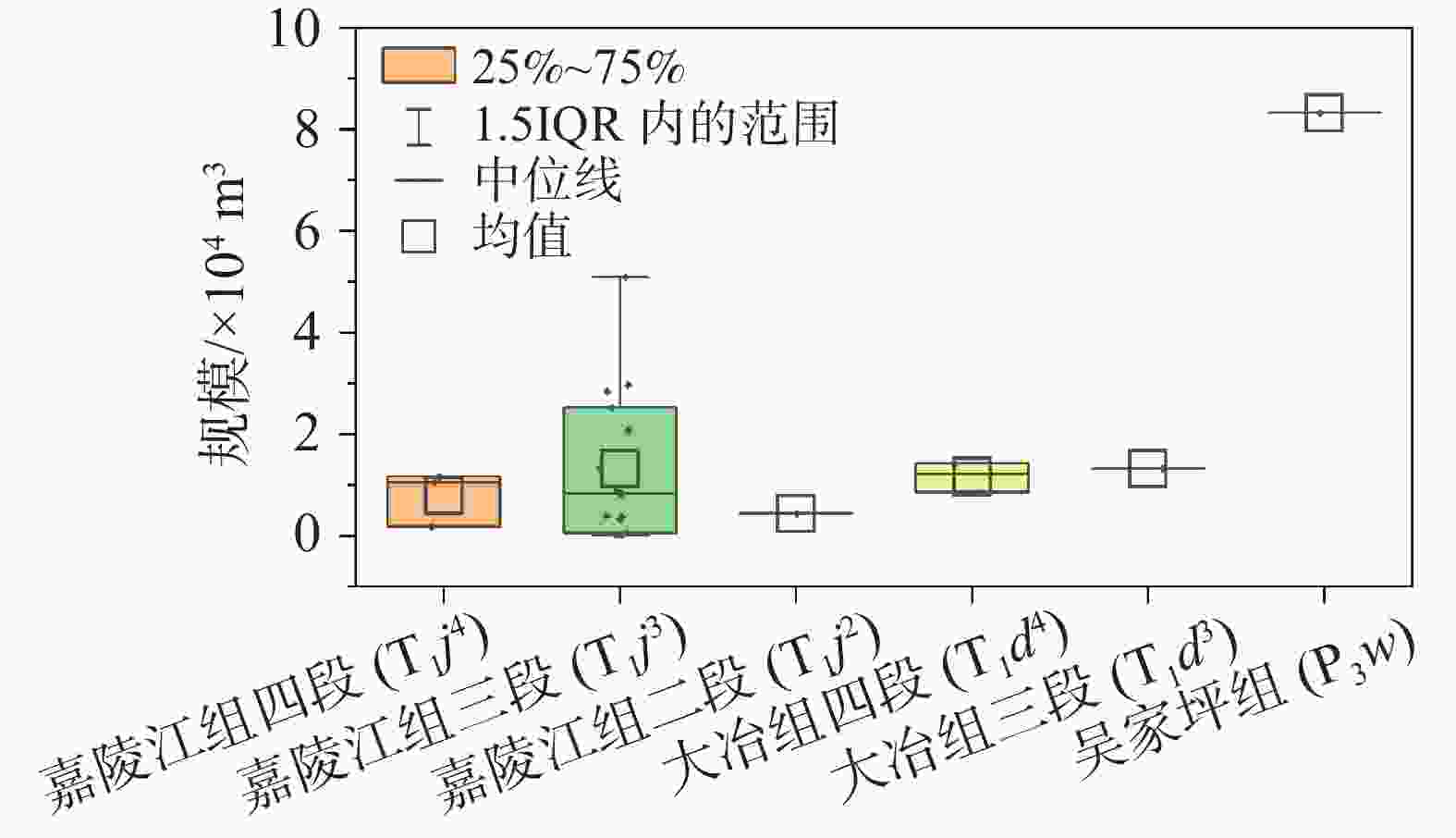

图 9 水下岩腔发育规模影响因素
Figure 9. Influencing factors on the development scale of underwater rock-cells

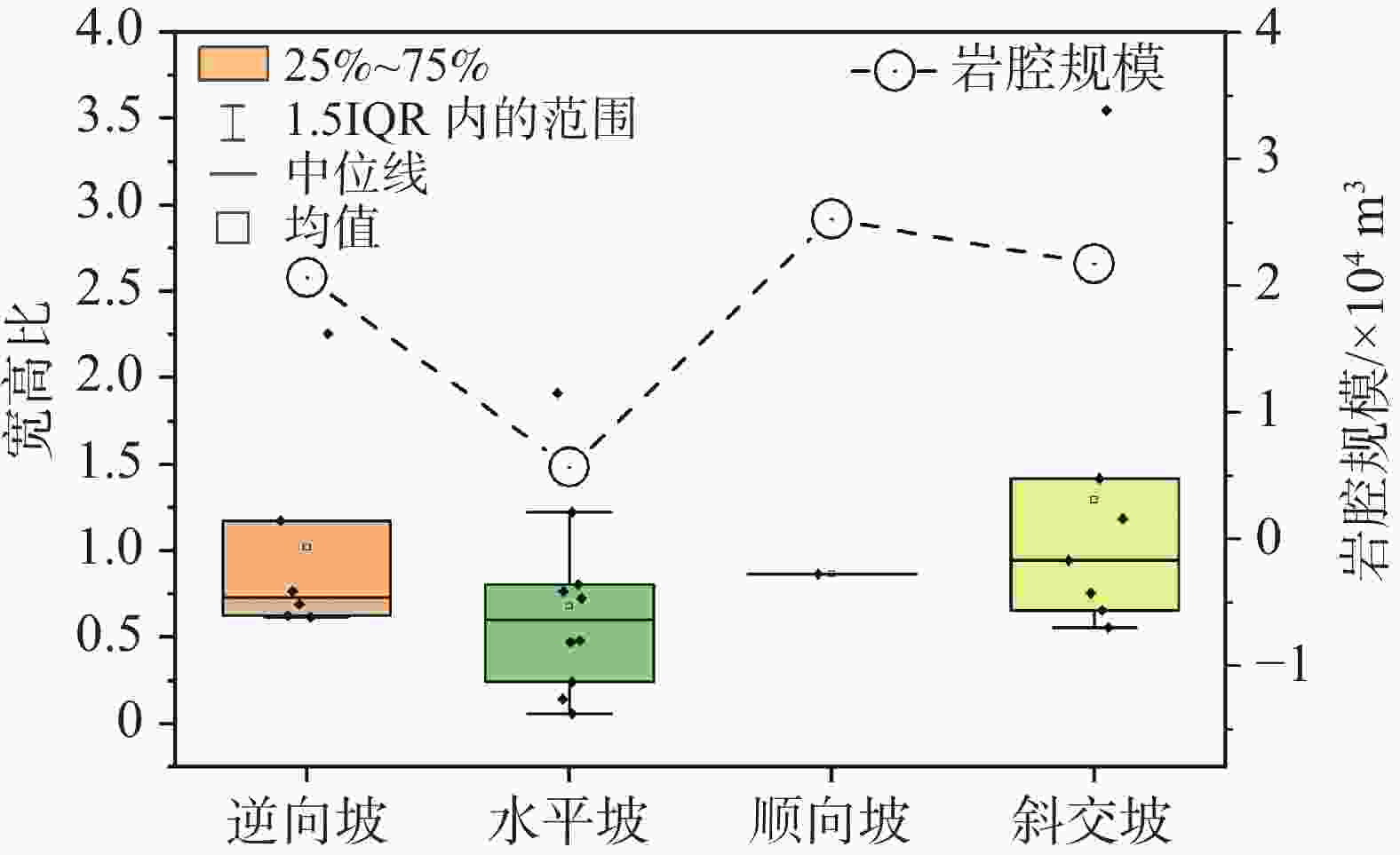

图 10 水下岩腔形态影响因素
Figure 10. Influencing factors on the morphology of underwater rock-cells

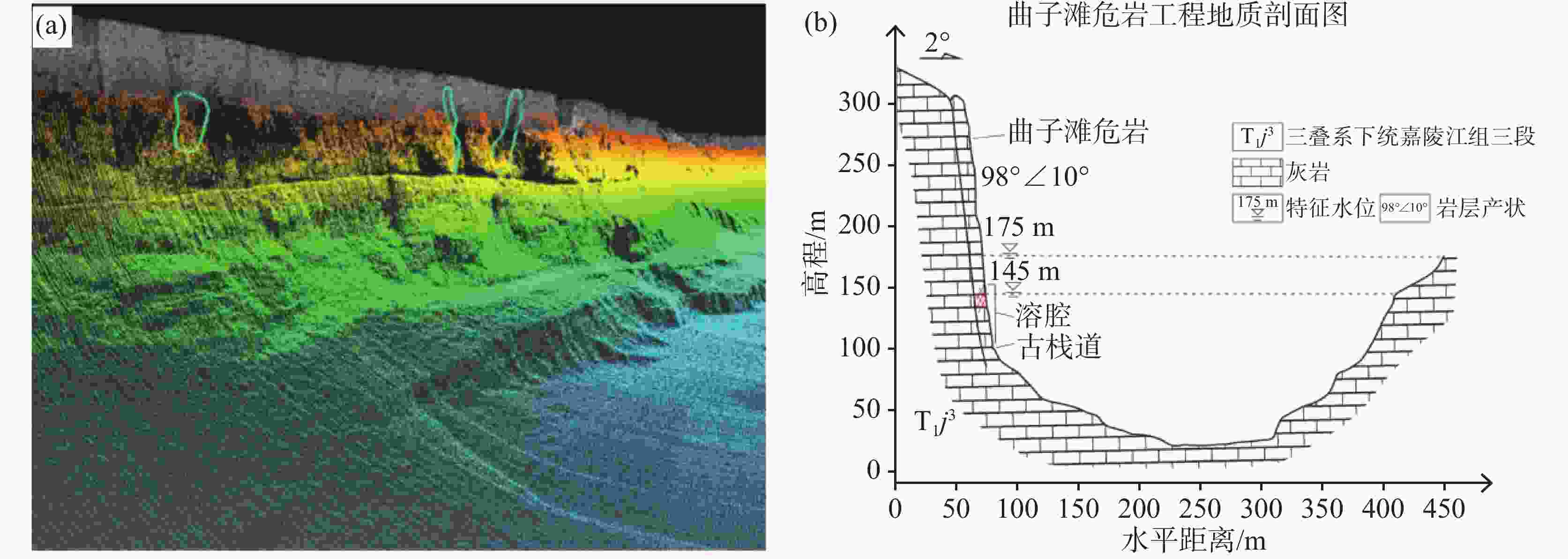

图 11 曲子滩危岩带水下岩腔特征示意图
Figure 11. Schematic diagram of the underwater rock-cells characteristics in Quzitan unstable rock zones

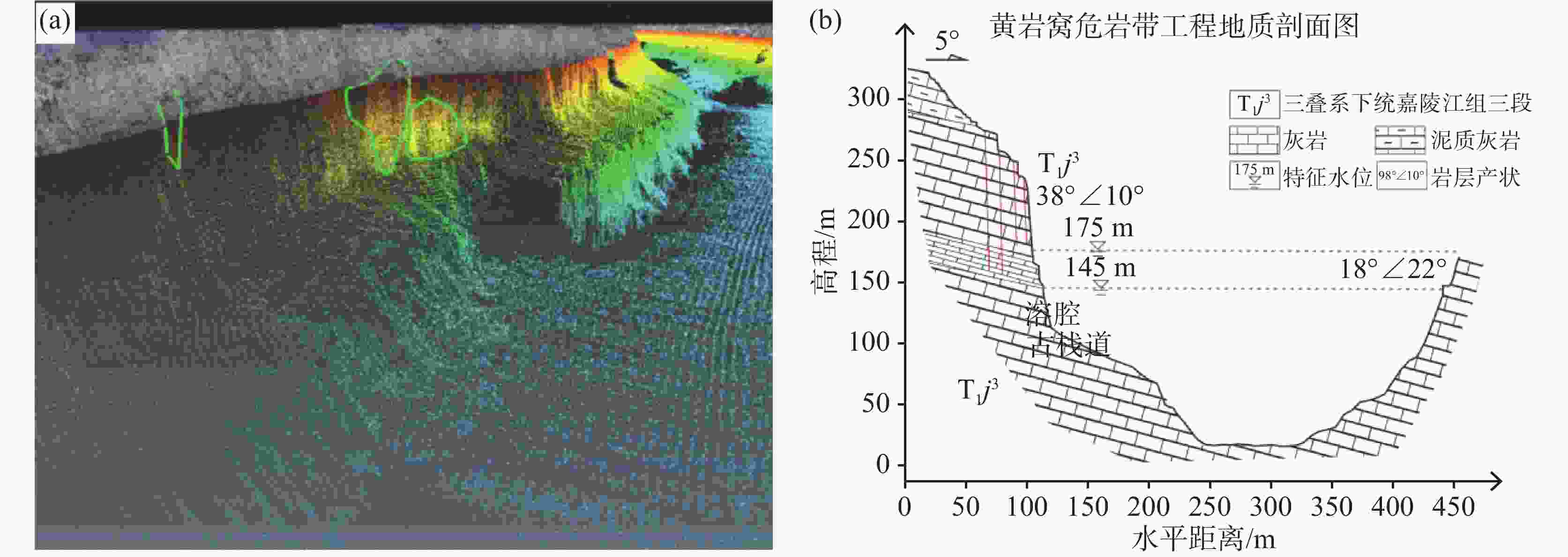

图 12 黄岩窝危岩带水下岩腔特征示意图
Figure 12. Schematic diagram of the underwater rock-cells characteristics in Huangyanwo unstable rock zones

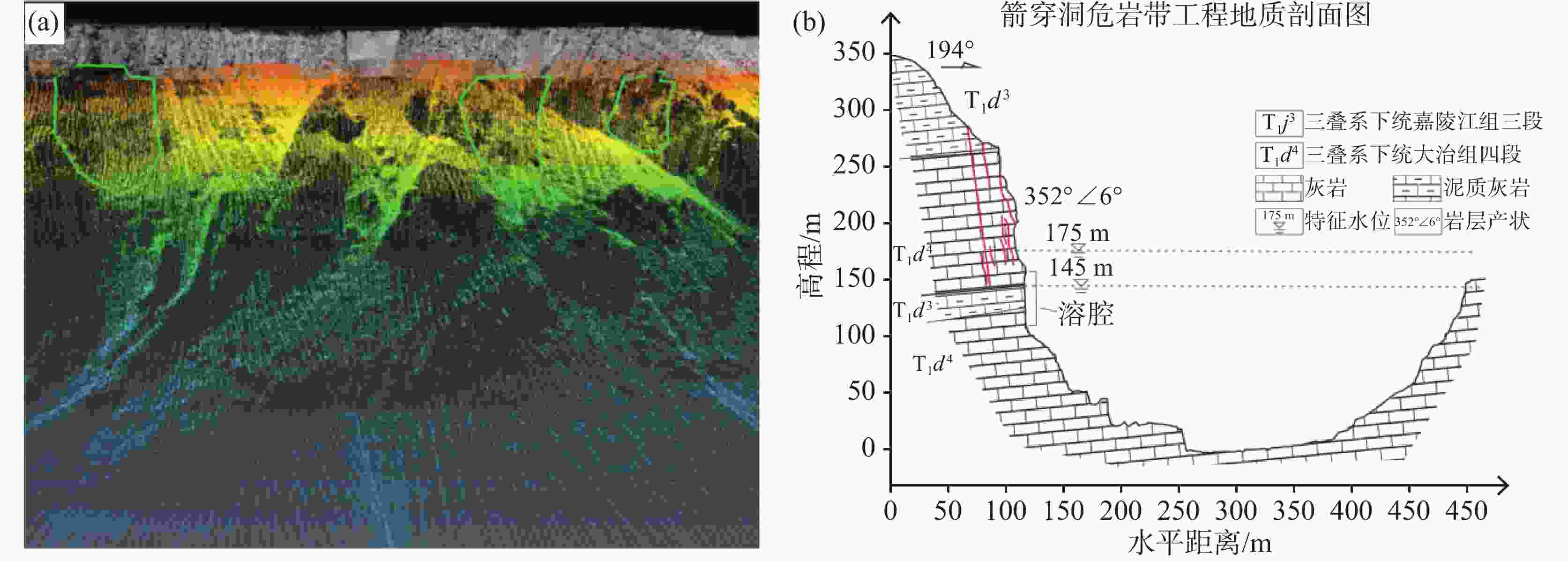

图 13 箭穿洞危岩带水下岩腔特征示意图
Figure 13. Schematic diagram of the underwater rock-cells characteristics in Jianchuandong unstable rock zones
-
[1] 赵志男, 李滨, 贺凯, 殷跃平, 高杨. 西南山区柱状危岩体基座压裂溃屈断裂力学解析[J]. 岩石力学与工程学报, 2022, 41(S2): 3132-3140.Zhao Zhinan, Li Bin, He Kai, Ying Yueping, Gao Yang. Fracture mechanical analysis of collapse down of columnar dangerous rock base in southwest mountainous area[J]. Chinese Journal of Rock Mechanics and Engineering, 2022, 41(S2): 3132-3140. [2] 黄波林, 殷跃平, 李滨, 秦臻, 张鹏. 三峡工程库区岩溶岸坡岩体劣化及其灾变效应[J]. 水文地质工程地质, 2020, 47(4): 51-61.Huang Bolin, Yin Yueping, Li Bin, Qin Zhen, Zhang Peng. Rock mass deterioration and its catastrophic effect of karst bank slope in the Three Gorges Project Reservoir area[J]. Hydrogeology & Engineering Geology, 2020, 47(4): 51-61. [3] 张钟远, 谭磊, 赵鹏, 余姝, 白林丰, 曾德强, 靳鹏. 三峡库区瞿塘峡至巫峡段消落带灰岩质量劣化特征[J]. 中国岩溶, 2025, 44(2): 250-260.Zhang Zhongyuan, Tan Lei, Zhao Peng, Yu Shu, Bai Linfeng, Zeng Deqiang, Jin Peng. Deterioration characteristics of limestone quality in the Qutangxia to Wuxia section of the Three Gorges Reservoir area [J]. Carsologica Sinica, 2025, 44(2):250-260. [4] 黄波林, 殷跃平, 李滨, 冯万里, 秦臻, 张鹏. 库区城镇滑坡涌浪风险评价与减灾研究[J]. 地质学报, 2021, 95(6): 1949-1961.Huang Bolin, Yin Yueping, Li Bin, Feng Wanli, Qin Zhen, Zhang Peng. Study of risk assessment and mitigation for landslide-induced impulse wave near towns in reservoir areas [J]. Acta Geologica Sinica, 2021, 95(6): 1949-1961. [5] 殷跃平, 黄波林, 李滨, 张枝华, 闫国强, 郑嘉豪. 三峡库区消落带溶蚀岩体劣化指标研究[J]. 地质学报, 2021, 95(8): 2590-2600. doi: 10.3969/j.issn.0001-5717.2021.08.021Yin Yueping, Huang Bolin, Li Bin, Zhang Zhihua, Yan Guoqiang, Zheng Jiahao. Research on deterioration index of karst rock mass in water level fluctuating zone of Three Gorges Reservoir area[J]. Acta Geologica Sinica, 2021, 95(8): 2590-2600. doi: 10.3969/j.issn.0001-5717.2021.08.021 [6] 杨何, 汤明高, 许强, 霍宇翔, 向育才, 邓文锋. 三峡库区消落带岸坡岩体劣化特性测试及质量评价[J]. 水利学报, 2020, 51(11): 1360-1371.Yang He, Tang Minggao, Xu Qiang, Huo Yuxiang, Xiang Yucai, Deng Wenfeng. Deterioration characteristic test and quality evaluation of bank slope rock mass in hydro-fluctuation belt of Three Gorges Reservoir Area[J]. Journal of Hydraulic Engineering, 2020, 51(11) : 1360-1371. [7] 邓华锋, 骆祚森, 张景昱, 周美玲, 李建林. 库岸边坡消落带水-岩作用研究进展与展望[J]. 三峡大学学报(自然科学版), 2023, 45(5): 95-104.Deng Huafeng, Luo Zuosen, Zhang Jingyu, Zhou Meiling, Li Jianlin. Progress and prospects of research on water-rock interaction in reservoir bank slope[J]. Journal of China Three GorgesUniversity (Natural Sciences), 2023, 45(5): 95-104. [8] 殷跃平. 新三峡库区长期地质安全战略研究[J]. 中国水利, 2024(22): 26-35. doi: 10.3969/j.issn.1000-1123.2024.22.007Yin Yueping. Studies on long-term geological safety strategy in the new Three Gorges Reservoir area[J]. China Water Resources, 2024(22): 26-35. doi: 10.3969/j.issn.1000-1123.2024.22.007 [9] 刘新荣, 王浩, 郭雪岩, 罗新飏, 周小涵, 许彬. 考虑消落带岩体劣化影响的典型危岩岸坡稳定性研究[J]. 岩土力学, 2024, 45(2): 563-576.Liu Xinrong, Wang Hao, Guo Xueyan, Luo Xinyang, Zhou Xiaohan, Xu Bin. Stability oftypical perilous rock bank slope considering the influenceof deterioration of rock mass in fluctuation belt[J]. Rockand Soil Mechanics, 2024, 45(2): 563-576. [10] 吕玉香, 杜春兰, 刘东升, 何丙辉, 张枝华, 曾玉. 三峡库区水位变动影响下危岩稳定性研究进展[J/OL]. 土木与环境工程学报(中英文), 2024-10-21. https://link.cnki.net/urlid/50.1218.TU.20241017.2035.002.Lyu Yuxiang, Du Chunlan, Liu Dongsheng, He Binghui, Zhang Zhihua, Zeng Yu. State-of-the-art review of dangerous rocks stability under theinfluence of water level fluctuations in the Three GorgesReservoir area [J/OL]. Journal of Civil and Environmental Engineering, 2024-10-21. https://link.cnki.net/urlid/50.1218.TU.20241017.2035.002. [11] Huang B, Zhang Z, Yin Y, Fei M. A case study of pillar-shaped rock mass failure in the Three Gorges Reservoir Area, China [J]. Quarterly Journal of Engineering Geology & Hydrogeology, 2016, 49(3): 192-202. [12] 刘新荣, 熊飞, 李滨, 杨忠平, 周小涵. 水力作用下岩质斜坡破坏机制和稳定性分析研究现状[J]. 中国岩溶, 2020, 39(4): 547-558.Liu Xinrong, Xiong Fei, Li Bin, Yang Zhongping, Zhou Xiaohan. Current situation of research on failure mechanism and stability of rock slopes under hydraulic action[J]. Carsologica Sinica, 2020, 39(4): 547-558. [13] 周云涛. 三峡库区危岩稳定性断裂力学计算方法[J]. 岩土力学, 2016, 37(S1): 495-499.Zhou Yuntao. A method for calculating the stability of unstable rocks on Three Gorges Reservoir by fracture mechanics[J]. Rock and Soil Mechanics, 2016, 37(S1): 495-499. [14] 唐红梅, 闫凝, 周福川, 王林峰. 三峡库区公路陡高边坡拉裂–滑塌型危岩破坏机制分析[J]. 重庆师范大学学报(自然科学版), 2021, 38(2): 38-47.Tang Hongmei, Yan Ning, Zhou Fuchuan, Wang Linfeng. Analysis on the failure mechanism of tensile fracture −sliding of unstable rock with steep slope in the Three Gorges reservoir area[J]. Journal of Chongqing Normal University (Natural Science), 2021, 38(2): 38-47. [15] 周云涛, 石胜伟, 张勇, 蔡强, 梁炯, 程英建. 岩腔后退近水平砂-泥岩互层危岩稳定性研究[J]. 工程地质学报, 2017, 25(5): 1220-1229.Zhou Yuntao, Shi Shengwei, Zhang Yong, Cai Qiang, Liang Jiong, Cheng Yingjian. Stability of unstable rock in nearly-horizontal sandstone-mudstone stratum due to enlarged rock-cell[J]. Journal of Engineering Geology, 2017, 25(5): 1220-1229. [16] 周云涛, 蔡强, 谢忠胜, 梁炯. 基于岩腔后退的危岩断裂破坏分析: 以重庆市万州区太白岩危岩为例[J]. 防灾减灾工程学报, 2023, 43(1): 138-148.Zhou Yuntao, Cai Qiang, Xie Zhongsheng, Liang Jiong. Fracture failure analysis of unstable rocks due to rock-cell retreating: A case study of unstable rocks in Taibaiyan, Wanzhou District, Chongqing Municipality, China[J]. Journal of Disaster Prevention and MitigationEngineering, 2023, 43(1): 137-147. [17] 许强, 董秀军, 朱星, 邓博, 戴可人. 基于实景三维的天-空-地-内滑坡协同观测[J]. 工程地质学报, 2023, 31(3): 706-717.Xu Qiang, Dong Xiujun, Zhu Xing, Deng Bo, Dai Keren. Landslide collaborative observation technology based on real scene 3D view from Space-AirGround-Interior perspective [J]. Journal of Engineering Geology, 2023, 31(3): 706-717. [18] 黄海宁, 李宝奇, 刘纪元, 刘正君, 韦琳哲, 赵爽. 声呐图像水下目标识别综述与展望[J]. 电子与信息学报, 2024, 46(5): 1742-1760. doi: 10.11999/JEIT231207Huang Haining, Li Baoqi, Liu Jiyuan, Liu Zhengjun, Wei Linzhe, Zhao Shuang. Sonar Image Underwater Target Recognition: A Comprehensive Overview and Prospects[J]. Journal of Electronics & Information Technology, 2024, 46(5): 1742-1760. doi: 10.11999/JEIT231207 [19] Ge Yan, Heqin Cheng, Zeyu Jiang, Lizhi Teng, Ming Tang, Tian Shi, Yuehua Jiang, Guoqiang Yang, Quanping Zhou. Recognition of Fluvial Bank Erosion Along the Main Stream of the Yangtze River[J]. Engineering, 2022(12): 50-61. [20] 刘传正, 李铁锋, 温铭生, 王晓朋, 杨冰. 三峡库区地质灾害空间评价预警研究[J]. 水文地质工程地质, 2004(4): 9-19. doi: 10.3969/j.issn.1000-3665.2004.04.002Liu Chuanzheng, Li Tiefeng, Weng Mingsheng, Wang Xiaopeng,Yang Bing. Assessment and early warning on geo-hazards in the Three Gorges Reservoir region of Changjiang River[J]. Hydrogeology Engineering, 2004(4): 9-19. doi: 10.3969/j.issn.1000-3665.2004.04.002 [21] 毕奔腾, 杨辰, 李景文, 姜建武, 周立新. 基于数字高程模型的中国岩溶地貌研究进展及前景分析[J]. 中国岩溶, 2022, 41(2): 318-328. doi: 10.11932/karst20220211Bi Benteng, Yang Chen, Li Jingwen, Jiang Jianwu, Zhou Lixin. Research progress and prospect of karst geomorphology in China based on digital elevation model[J]. Carsologica Sinica, 2022, 41(2): 318-328. doi: 10.11932/karst20220211 [22] Dewez T J B, Girardeau-Montaut D, Allanic C. Facets : A cloudcompare plugin to extract geological planes from unstructured 3D point clouds[J]. ISPRS-International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences, 2016, XLI-B5: 799-804. [23] 殷坤龙, 周春梅, 柴波. 三峡库区巫峡段反倾岩石边坡的破坏机制及判据[J]. 岩石力学与工程学报, 2014, 33(8): 1635-1643.Yin Kunlong, Zhou Chunmei, Chai Bo. Reservoir area failure mechanism and criterion of counter-tilt rock slopes at Wuxia gorge section in three gorges[J]. Chinese Journal of Rock Mechanics and Engineering, 2014, 33(8): 1635-1643. [24] 林超, 唐宁, 王术桁. 三峡库区缓倾角软弱基座型斜坡破坏过程及防治措施研究[J]. 成都大学学报(自然科学版), 2016, 35(3): 305-308.Lin Chao, Tang Ning, Wang Shuheng. Destruction process of low-angle and soft foundation slope in Three Gorges Reservoir Area and its countermeasures[J]. Journal of Chengdu University (Natural Science Edition), 2016, 35(3): 305-308. [25] 陈小婷, 黄波林, 李滨, 张鹏, 秦臻. 三峡水库碳酸盐岩区岩溶作用与斜坡破坏[J]. 中国岩溶, 2020, 39(4): 567-576.Chen Xiaoting, Huang Bolin, Li Bin, Zhang Peng, Qin Zhen. Karstification and slope failure in carbonate areas of Three Gorges Reservoir[J]. Carsologica Sinica, 2020, 39(4): 567-576. [26] 张国栋, 夏文中, 何钰铭, 危灿. 三峡库区碳酸岩岸坡消落带岩体劣化特性[J]. 山地学报, 2024, 42(1): 70-80.Zhang Guodong, Xia Wenzhong, He Yuming, Wei Can. Rock mass deterioration in the hydro-fluctuation belt of carbonate riverside in the Three Gorges Reservoir of the Yangtze River, China[J]. Mountain Research, 2024, 42(1): 70-80. -
