Numerical study on hydraulic failure characteristics of deep-buried solution-fissured limestone as an inrush prevention layer
-
摘要: 岩溶区深埋巷道与围岩内水体之间的防突水岩层是阻隔地下水向巷道开挖临空面突涌的关键层。溶隙发育降低防突层岩体厚度和完整性，对防突层抵御地下水突涌造成不良影响。为研究溶隙发育对深埋灰岩防突层水力破坏特征的影响，在测定灰岩物理力学参数的基础上开展不同类型溶隙灰岩防突层在地应力和逐级水压作用下的数值研究。结果表明：（1）深埋溶隙灰岩防突层岩盘在高地应力和逐级水压加载下表现出四个变形破坏阶段：弹性变形阶段、塑性变形阶段、残余强度阶段和破坏阶段；（2）深埋灰岩防突层岩盘岩溶率越高，防突层岩盘水力破坏的临界水压力越小，研究获得了防突层岩盘破坏临界水压和岩溶率的关系曲线；（3）无溶隙发育的防突层岩盘在水压力作用下更容易在上表面周缘发生张拉破坏，在下表面周缘发生拉剪混合破坏，在下表面中心区域发生张拉破坏；（4）溶隙发育影响应力应变在防突岩盘内的分布，发育溶隙的防突层岩盘在水压力作用下更容易在溶隙带边缘与尖端处发生拉剪混合破坏，在岩盘下表面周缘发生压剪破坏，下表面中心区域发生张拉破坏；（5）多个邻近的溶隙尖端拉剪变形易相互贯通形成连续的拉剪破裂带。水压作用下防突岩盘因溶隙发育的不同可发生张拉破坏、拉剪破坏、压剪破坏或组合破坏。Abstract:
In tunnel engineering in karst areas, the tunnel mud and water inrush is one of the most common geological disasters. These events significantly impact tunnel construction, safe operation, and the safety of personnel and equipment, particularly in tunnels with large burial depths located in water-rich karst areas. Numerous factors affect tunnel mud and water inrush, including tunnel burial depth, groundwater pressure, surrounding rock stress, and the characteristics of the water inrush prevention layer-such as its thickness, karstification rate, fissure density, and mechanical strength. The water inrush prevention layer refers to the rock mass situated between the tunnel and groundwater, serving as the critical barrier that prevents groundwater from rushing toward the tunnel free face. The strength of the rock mass in this inrush prevention layer determines its capacity to resist groundwater pressure. Key factors affecting its overall strength include the thickness, karstification rate, fissure density, and mechanical strength of the prevention layer. The development of solution-fissures within this rock mass reduces its effective thickness and structural integrity, thereby diminishing its ability to withstand groundwater inrush toward the tunnel free face. To investigate the impact of the development of solution fissures in the limestone inrush prevention layer on its failure characteristics under hydraulic action in deep tunnels, limestone samples were collected, and tests were conducted to determine the physical and mechanical parameters of rock. The true density, tensile strength, elastic modulus, Poisson’s ratio, cohesion, and internal friction angle of the limestone material were obtained. Four different models for water inrush prevention were designed with the use of finite difference numerical simulation software. These models are square-rectangular in shape, with cylindrical holes cut opposite each other in the middle of the upper and lower surfaces, but not completely through. The remaining middle layer forms a disc-shaped batholite that serves as the water inrush prevention layer. Shallow circular holes and strip-shaped grooves are cut on the upper surface of this disc-shaped water inrush prevention layer, representing the solution fissures developed within the water inrush prevention layer. The circular holes and strip-shaped grooves differ among the four models, representing varying karstification rates. Based on this, the models were assigned the measured physical and mechanical parameters. Numerical simulations of the model for inrush prevention batholitel were conducted under fixed geostress at a depth of 1,000 m, with gradually increasing water pressure at an interval of 50 m after constraining the bottom and surrounding areas of the model. The maximum shear stress and maximum shear strain increment of the model’s force response are used as the criteria to analyze the characteristics of each stage of the model’s force deformation and failure, as well as the stress-strain distribution contour maps. The similarities and differences among the four models were compared. The research findings show that: (1)The deep-buried solution-fissured limestone used as inrush prevention batholitel undergoes four stages of deformation and failure under high geostress and gradually increasing water pressure: elastic deformation, plastic deformation, residual strength, and failure. (2) The higher the karstification rate of the deep-buried limestone used as an inrush prevention batholite, the lower the critical water pressure required to cause hydraulic failure of this batholite. A relationship curve between the critical water pressure for failure of the inrush prevention batholite and the karstification rate has been established. (3) Under the effect of water pressure, the inrush prevention batholite without solution fissures is more susceptible to tensile failure near the upper surface, mixed tensile-shear failure around the lower surface, and tensile failure in the central area of the lower surface. (4) The development of solution fissures affects the distribution of stress and strain within the inrush-prevention batholite. Under the effect of water pressure, the inrush-prevention batholite with solution fissures is more prone to mixed tensile and shear failure at the edges and tips of the solution fissure zones, compressive shear failure at the periphery of the lower surface of the batholite, and tensile failure in the central area of the lower surface. (5) Tensile and shear deformations at multiple adjacent solution fissure tips tend to interconnect, forming a continuous tensile and shear fracture zone. Under water pressure, the inrush prevention batholite may experience tensile failure, tensile-shear failure, compressive-shear failure, or a combination of these failure modes, depending on the development of the solution fissures. The research findings offer valuable insights into the deformation and failure characteristics of hydraulic fracturing in deeply buried rock formations, aiding in the prevention of water inrush. -

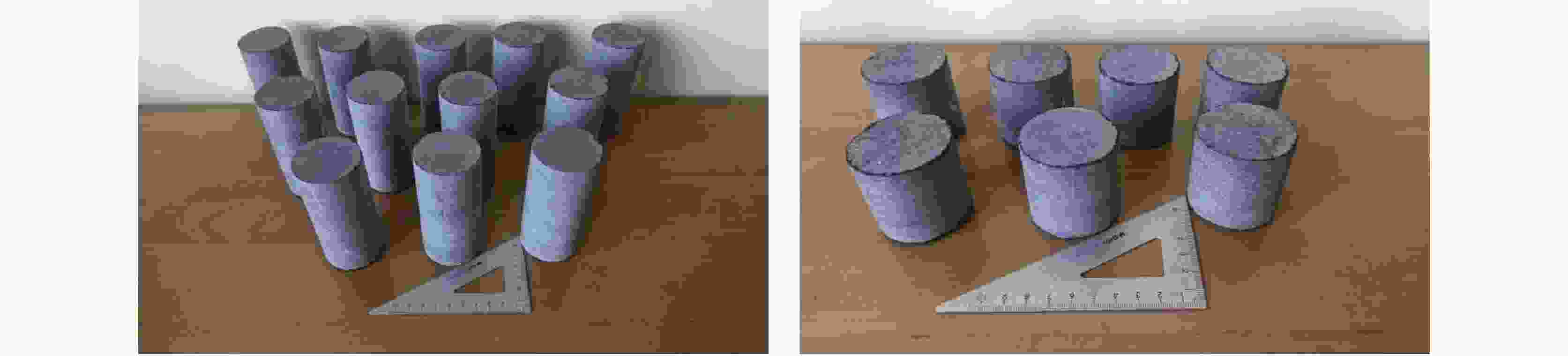

图 1 下石炭统尧云岭组泥质灰岩圆柱样品（左：d 50×h 100 mm 右：d 50×h 50 mm）
Figure 1. Specimen of argillaceous limestone from the Lower Carboniferous Yaoyunling Formation, presented in cylindrical form (left: d 50×h 100 mm; right: d 50× h50 mm)

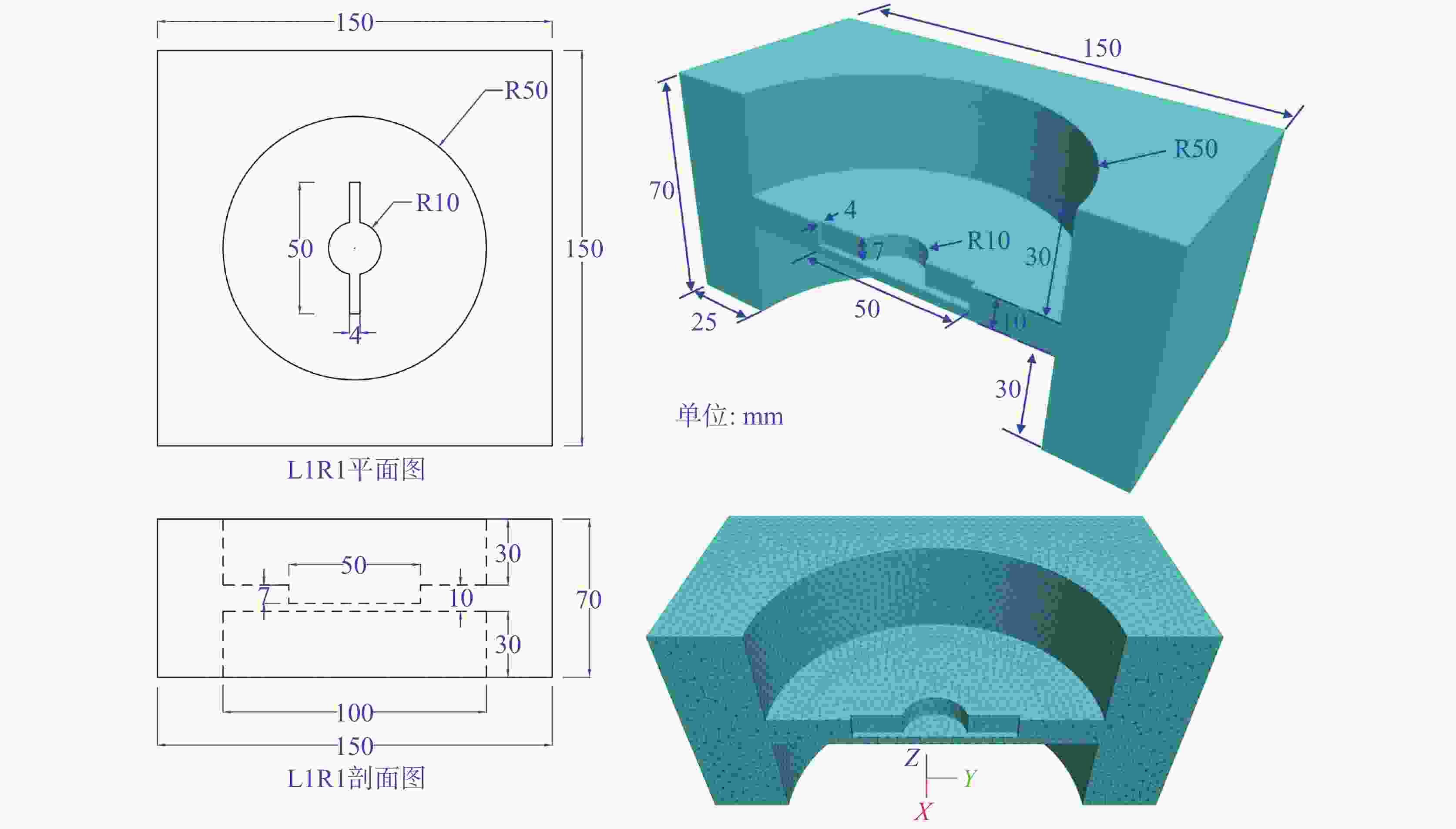

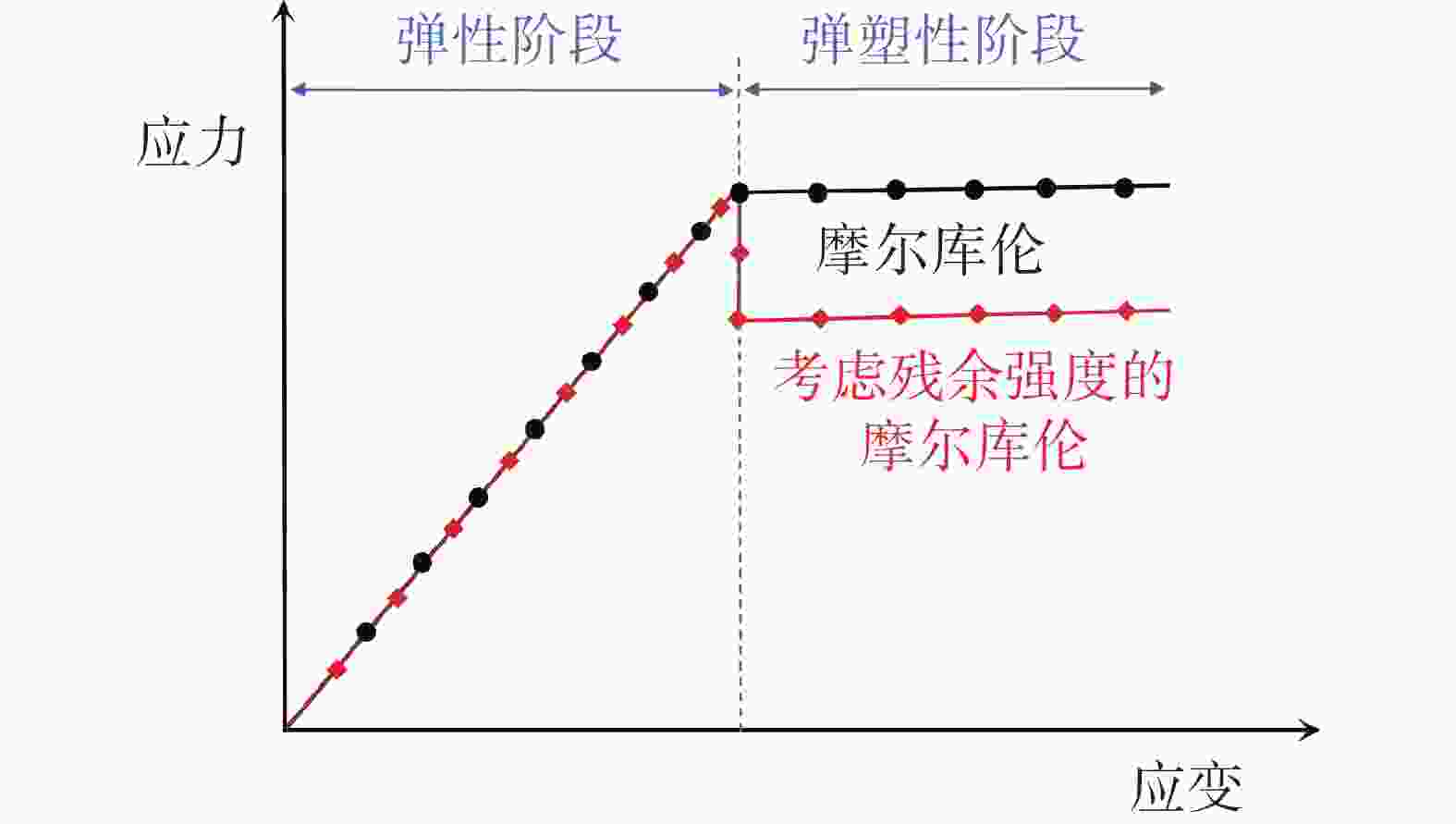

图 3 考虑残余强度的摩尔库伦模型本构关系示意图
Figure 3. Constitutive relation of the Mohr-Coulomb model considering residual strength

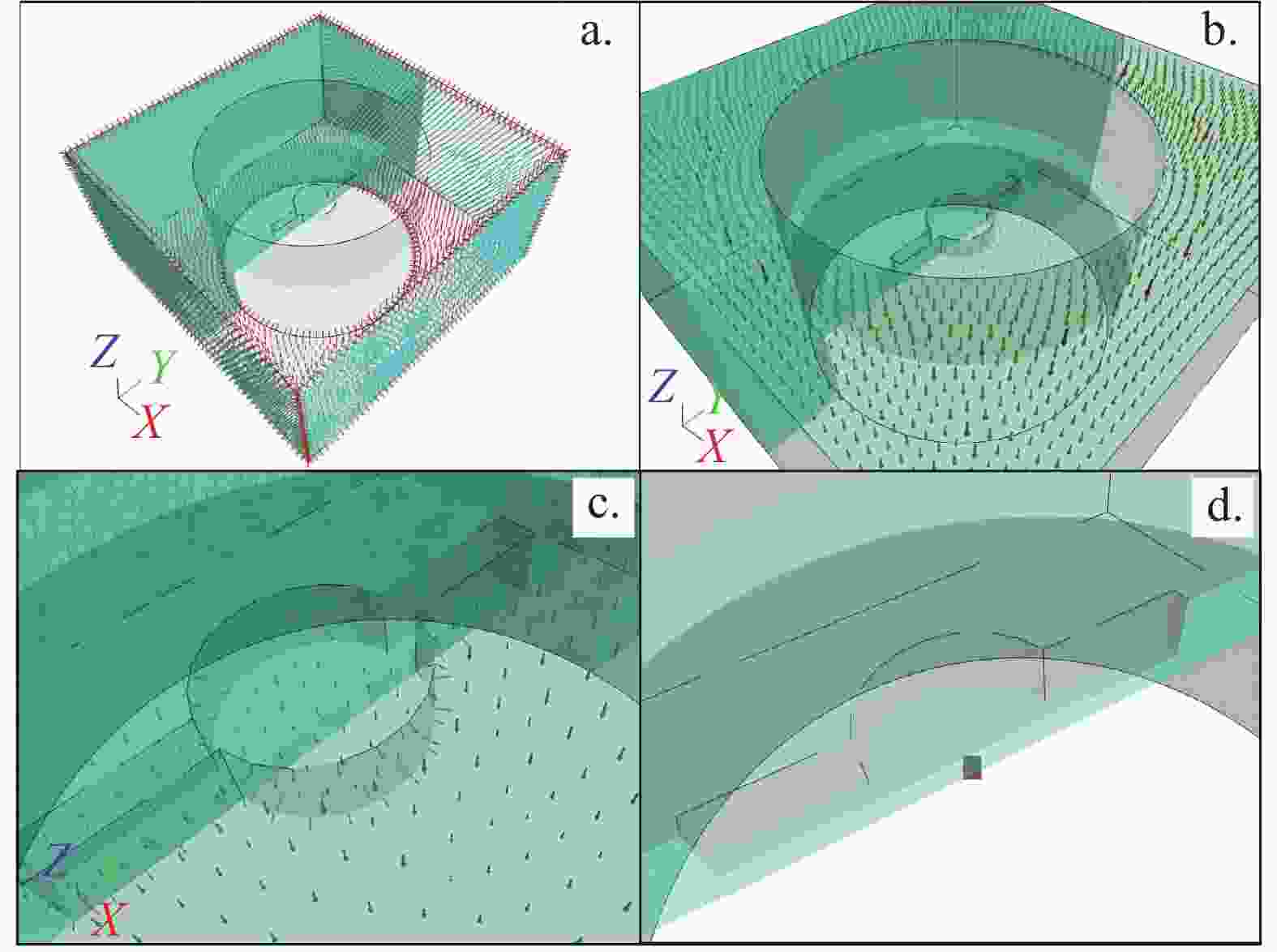

图 4 模型约束及应力加载示意图（(a)模型四周及底部固定约束，(b)模型顶部施加地应力，(c)圆盘施加水压力，(d)监测点位置）
Figure 4. Schematic diagram of model constraints and stress loading (a) fixed constraints around and at the bottom of the model; (b) ground stress applied on the top of the model;(c) water pressure applied by the disc rock; (d) location of monitoring points
图 5 模型地应力加载和逐级水压力加载应力路径图
Figure 5. Stress path diagram of model ground stress loading and stepwise water pressure loading

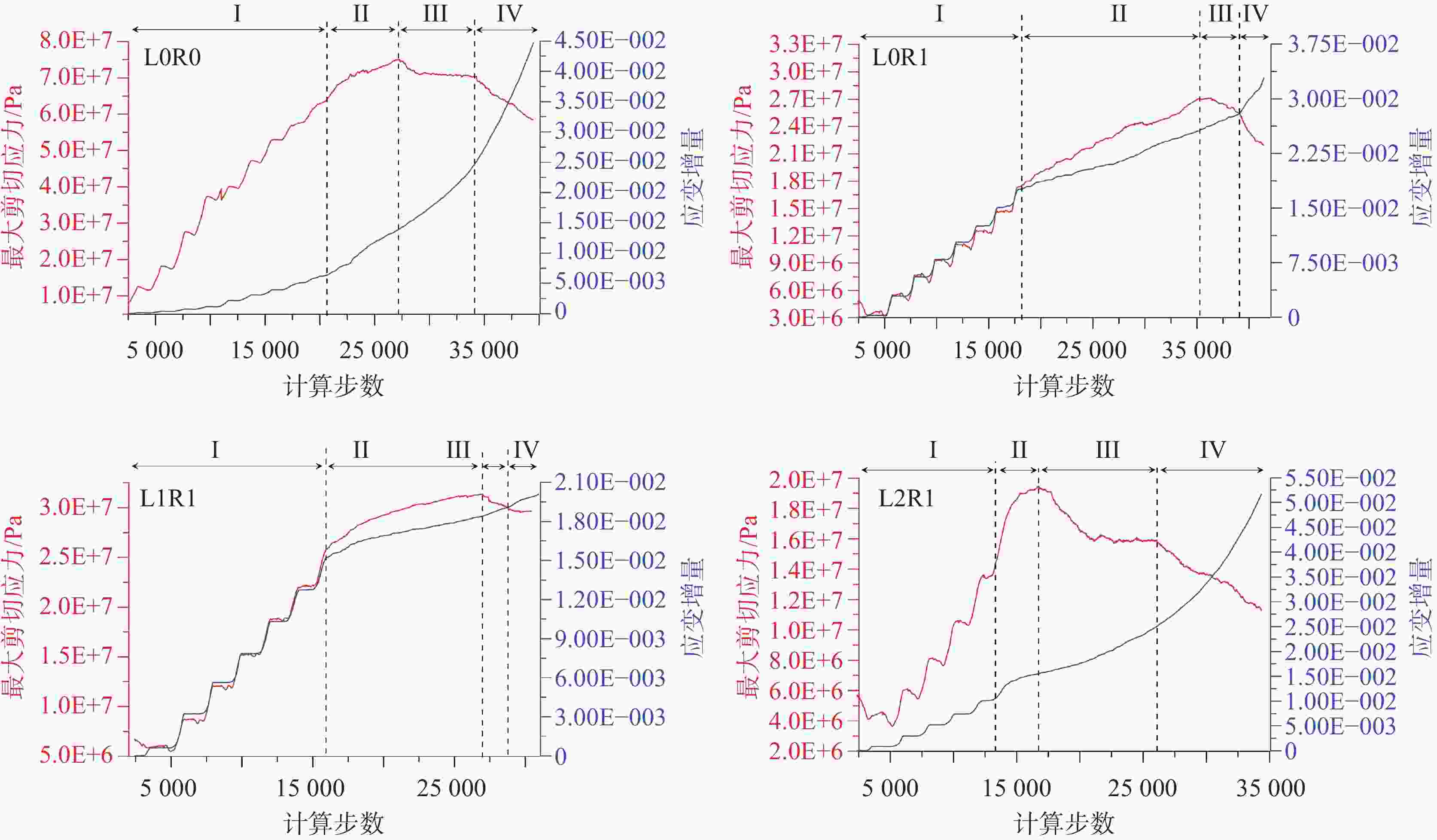

图 6 模型最大剪应力曲线和应变增量曲线
Figure 6. Maximum shear stress curve and strain increment curve of the model
图 7 模型临界破坏水压与岩溶率关系
Figure 7. Relationship between critical failure water pressure and karstification rate of the model

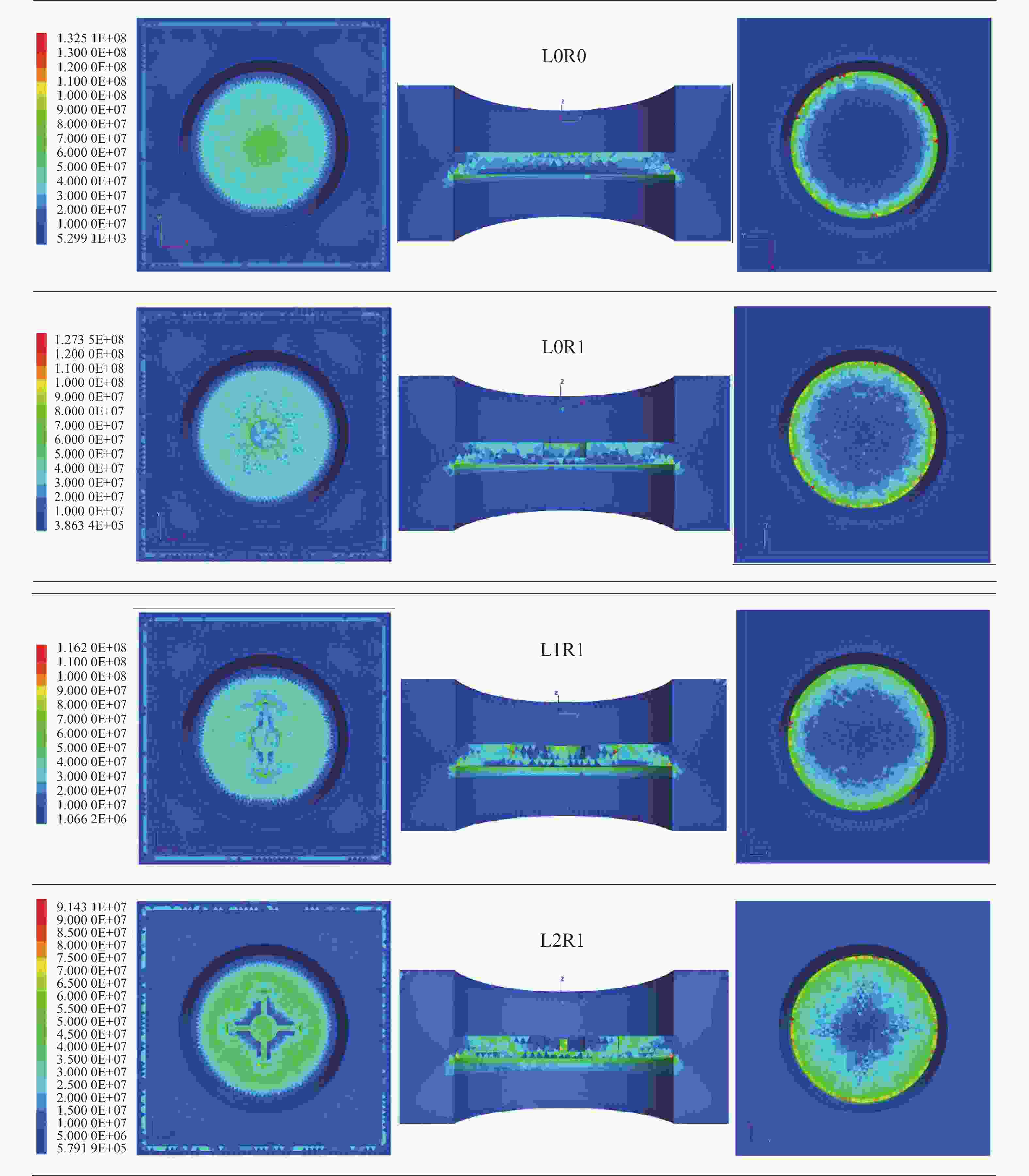

图 8 模型临界破坏水压作用下的最大剪切应力分布云图
Figure 8. Nephogram of maximum shear-stress distribution in the model under critical failure water pressure
图 9 模型临界破坏水压作用下的体应变增量分布云图
Figure 9. Nephogram of volumetric strain increment distribution in the model under critical failure water pressure
表 1 下石炭统尧云岭组泥质灰岩力学性能参数测试数据汇总表
Table 1. Summary of test data for mechanical property parameters of argillaceous limestone from the lower Carboniferous Yaoyunling Formation
巴西劈裂实验 破坏前 破坏后 抗拉强度/MPa 岩样1-1
3.91 单轴压缩实验 破坏前 破坏后 弹性模量/MPa 泊松比 岩样2-1
6.82 0.247 三轴压缩实验 破坏前 破坏后 黏聚力c /MPa 内摩擦角/φ 岩样3-1
14.69 49.13°
下载: 导出CSV
表 2 四个溶隙灰岩防突层模型
Table 2. Four models for solution-fissured limestone used as inrush prevention layer
模型编号 L0R0 L0R1 L1R1 L2R1 平面图
剖面图
立体图
面岩溶率/% 0 4.00 5.53 7.07 体岩溶率/% 0 2.80 3.87 4.95
下载: 导出CSV
-
