高密度电法在莱芜岩溶地面塌陷区的应用与效果

孙虹洁; 王志辉; 赵振华; 罗振江

doi:10.11932/karst20250609

高密度电法在莱芜岩溶地面塌陷区的应用与效果

doi: 10.11932/karst20250609

孙虹洁^{1, 2,},
王志辉³,
赵振华^{1, 2, ,},
罗振江^{1, 2}

1.
山东省地矿工程勘察院（山东省地质矿产勘查开发局八〇一水文地质工程地质大队）, 山东济南 250014
2.
山东省地下水环境保护与修复工程技术研究中心, 山东济南 250014
3.
中国地质科学院, 北京 100037

基金项目: 济南市政府采购招标项目[JNCZ(BDS)-GK-2020-0107]；山东省地矿工程勘察院科技创新团队项目（2023JBGS801-4）

详细信息

作者简介:
孙虹洁（1993－），女，高级工程师，从事水工环地质工作。E-mail：sunhongjie214@163.com

通讯作者:
赵振华（1982－），男，正高级工程师，从事水工环地质工作。E-mail：16607713@qq.com。

中图分类号: P631.3；P642.26
计量
- 文章访问数: 5
- HTML浏览量: 1
- PDF下载量: 0
- 被引次数: 0
出版历程
- 收稿日期: 2024-01-29
- 录用日期: 2025-11-28
- 修回日期: 2024-11-28
- 刊出日期: 2025-12-25

Application and effectiveness of high-density electrical method in the karst ground subsidence zone of Laiwu

SUN Hongjie^{1, 2
,},
WANG Zhihui³,
ZHAO Zhenhua^{1, 2
, ,},
LUO Zhenjiang^{1, 2}

1.
Shandong Provincial Geo-mineral Engineering Exploration Institute(801 Institute of Hydrogeology and Engineering Geology, Shandong Provincial Bureau of Geology & Mineral Resources), Jinan, Shandong 250014, China
2.
Shandong Engineering Research Center for Environmental Protection and Remediation on Groundwater, Jinan, Shandong 250014, China
3.
Chinese Academy of Geological Sciences, Beijing 100037, China

摘要

摘要: 文章采用施伦贝格装置布设测网，对山东莱芜集中性地面塌陷区域勘查所采集的数据利用RES2Dmod构建岩溶地电模型进行了数值模拟，推测出数条断裂构造带并圈定了二维和三维结果中的岩溶低阻异常区及充填物情况，对隐伏岩溶及充填物的探测效果较好。通过钻探揭露，验证了高密度电阻率法具有对异常响应明显、精度高、准确性好的特点，其施伦贝格装置具有较好的垂向和水平分辨率，这对于岩溶发育区的潜在地面塌陷探测、预测具有较好的应用价值。
- 高密度电阻率法 /
- 岩溶地面塌陷 /
- 施伦贝格装置 /
- 正反演 /
- 探测预测
Abstract: Frequent karst subsidence in China’s carbonate regions poses a significant geological hazard that requires urgent attention. This issue often arises from excessive groundwater extraction for domestic, irrigation, industrial, and mining purposes, inducing declining water levels and sharp fluctuations that exacerbate of karst subsidence. The resultant risks include severe safety concerns and substantial property damage for residents in affected areas, posing a serious threat to personal safety and infrastructure development. Since the 1970s, karst collapse incidents have been frequent in Laiwu District, Jinan City, causing significant risks and property damage to nearby inhabitants. Therefore, focusing on Laiwu as the research area is crucial for conducting surveys of karst subsidence regions using physical exploration methods and establishing a comprehensive karst geological database. This database is instrumental in identifying vulnerable areas prone to karst subsidence and developing effective preventative and control measures. Given the higher prevalence of karst collapse risks near fracture tectonic zones, a detailed understanding of karst development features beneath known collapse areas and within fracture zones is essential for a comprehensive assessment of karst collapse characteristics.Located in the central mountainous region of Shandong Province, Laiwu is surrounded by mountains, with a broader expanse of terrain in the west, presenting a basin-like tilt from east to west. Geologically, the area can be categorized into four types: erosion-tectonic middle mountainous areas, erosion-tectonic low mountainous zones, erosion-tectonic hilly regions, and intermontane plains. The surface-exposed strata and borehole data in and around the study area predominantly consist of Paleozoic Cambrian, middle and lower Ordovician, Carboniferous, Permian, Mesozoic upper Jurassic, Cenozoic Paleocene, and Quaternary formations. The study zone is delineated into northern and southern sections. The northern section encompasses the Dawangzhuang–Zhailizhen area, while the southern section extends from Mengjiazhuang village in the east to Xiquanhe village in the south, and from Xiquanhe village in the west to Menggongqing village in the north. Topographically, the study site features a northward-protruding semicircular basin with gentle slopes descending from east to west, characterized by mild gradients in the south and steeper inclines in the north. The terrain inclines northward, eastward, and southward, converging toward the basin’s center to form a horseshoe shape that opens westward, bisected by the east-west course of the Dawenhe River running through the central basin. The local climate is classified as a mid-temperate continental monsoon climate, exhibiting distinct seasonal changes with cool springs and autumns, cold winters, and hot summers. Significant variations in annual rainfall and its regional distribution are observed, with higher precipitation recorded in the southeast and northwest. The primary rivers in the study area include the Mouwenhe River and the Zhailihe River, along with the Fangxiahe River, the Simahe River (a tributary of the Mouwenhe River), and the Zhifenghe River (a tributary of the Zhailighe River). These tributaries exhibit seasonal flow patterns and short courses, experiencing rapid water level fluctuations during rainy periods and reduced flow or potential drying during dry spells. This investigation aims to evaluate the effectiveness of three geophysical exploration methods-the geo-radar, shallow seismic, and high-density resistivity-in the Laiwu karst collapse area. The main findings are summarized as follows, (1) The Schlumberger device exhibits a strong performance across four models, boasting exceptional horizontal and vertical resolution and effectively delineating the location, shape, and size of target bodies. Therefore, in the vicinity of concentrated ground collapse in Laiwu, Shandong Province, we deployed a network of Schlumberger devices for measurements, utilized RES2Dmod for data modeling, and conducted numerical simulations. (2) Several fracture tectonic zones were identified, along with karst regions characterized by low-resistance anomalies and various filling conditions. Both 2D and 3D results highlighted the method’s effectiveness, particularly in detecting hidden karst formations and infill materials, thereby providing a foundational and comparative framework for engineering case analyses. (3) Multiple fracture configurations were revealed through drilling, including those intersected by all measurement lines, confirming the robustness of the high-density resistivity method in detecting such structures. This method demonstrates distinct anomaly response characteristics, delivering high precision and accuracy. (4) The Schlumberger device’s excellent vertical and horizontal resolution offers significant practical value for detecting and predicting potential ground collapses in karst development regions. Rigorous verification through joint borehole assessments enhances the study’s credibility, indicating that the subsidence may result from diagonal erosion-induced migration of sand and soil particles from overlying layers into adjacent karst conduits or voids, ultimately leading to collapse pit formation. In conclusion, this study offers the following recommendations, (A) In karst collapse-prone areas, regular inspections are advised to detect subsurface voids beneath roadways. (B) Expanding the scope of gravity and magnetic surveys is encouraged to better characterize the distribution of fracture tectonics across the area.
- high-density resistivity method /
- karst ground subsidence /
- Schlemberg device /
- forward and inverse /
- detection and prediction

HTML

图 1 山东莱芜岩溶地面塌陷区分布及研究区位置图

Figure 1. Distribution of karst collapses and location of the study area

下载: 全尺寸图片幻灯片

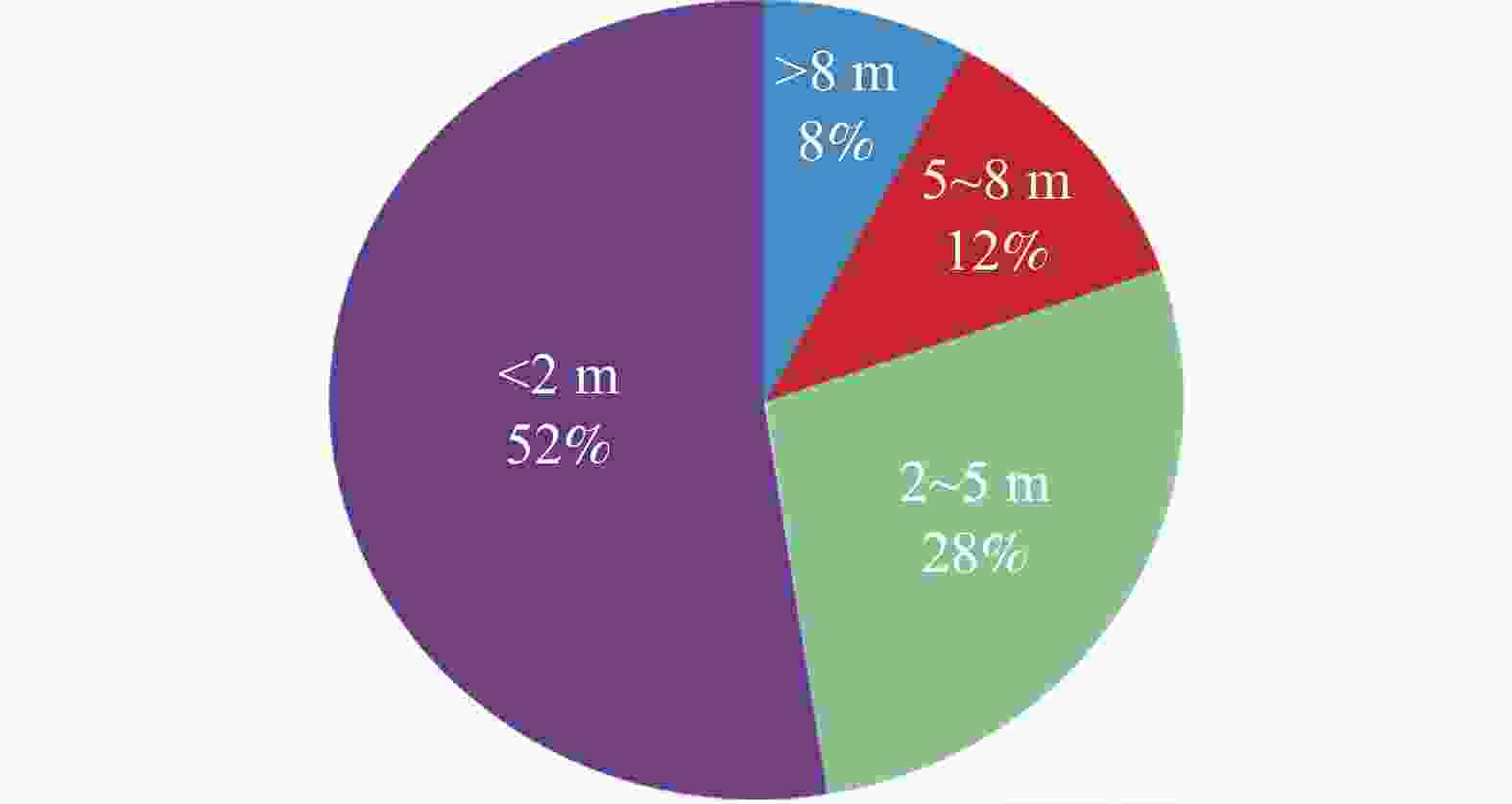

图 2 岩溶发育厚度饼状图

Figure 2. Pie chart of karst development thickness

下载: 全尺寸图片幻灯片

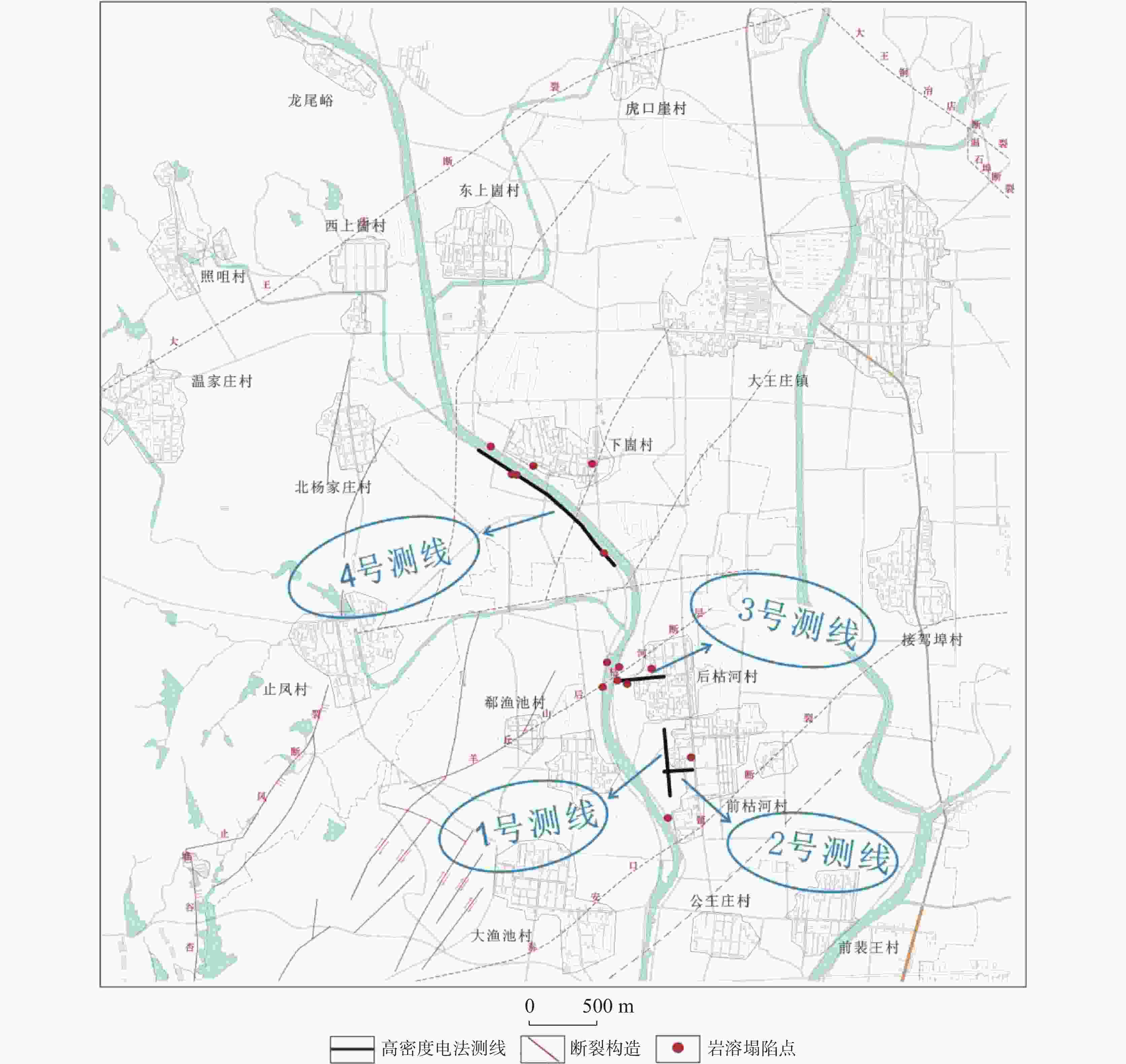

图 3 北研究区测线布置图

Figure 3. Layout of survey lines in the northern study area

下载: 全尺寸图片幻灯片

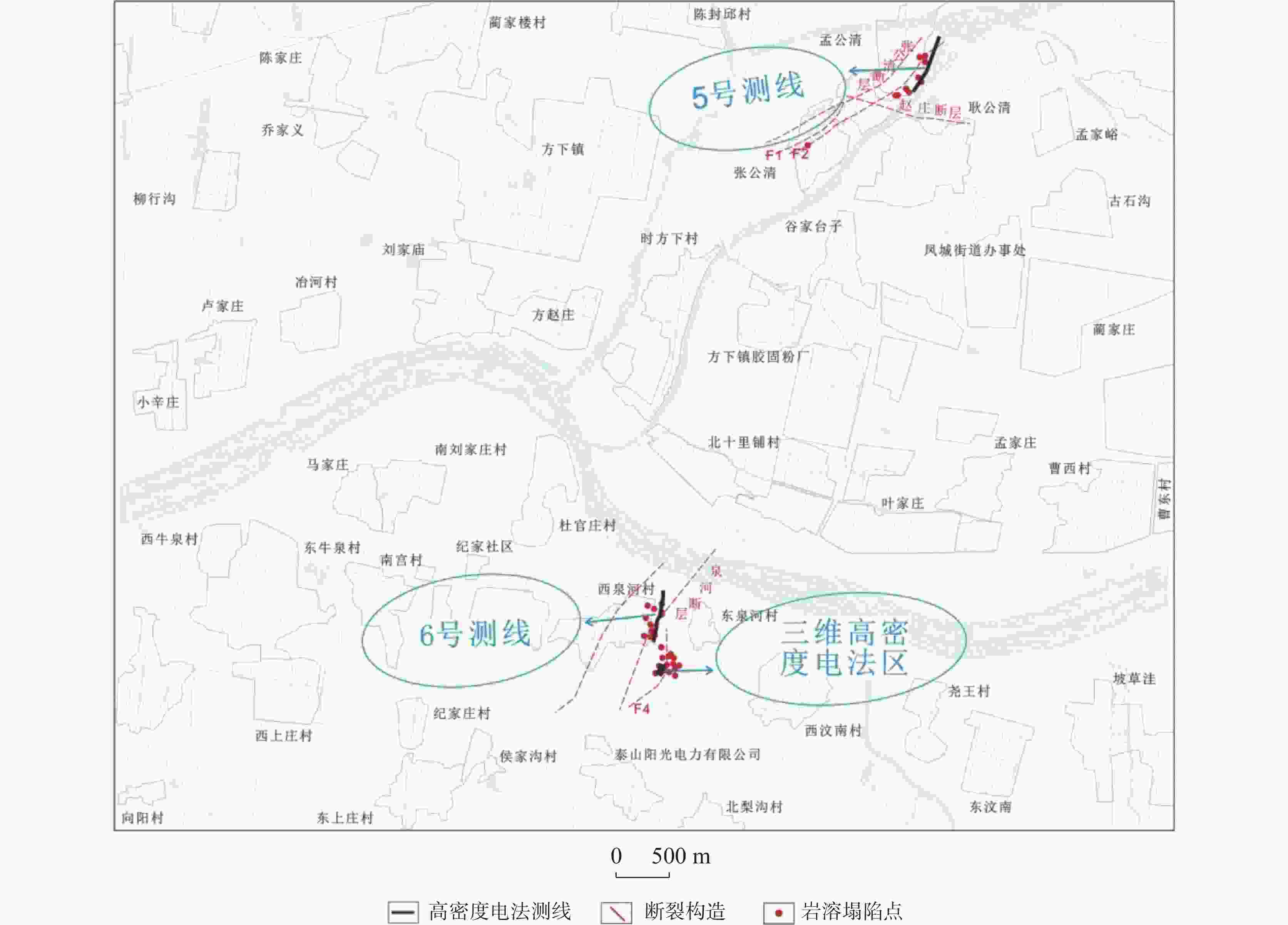

图 4 南研究区测线布置图

Figure 4. Layout of survey lines in the southern study area

下载: 全尺寸图片幻灯片

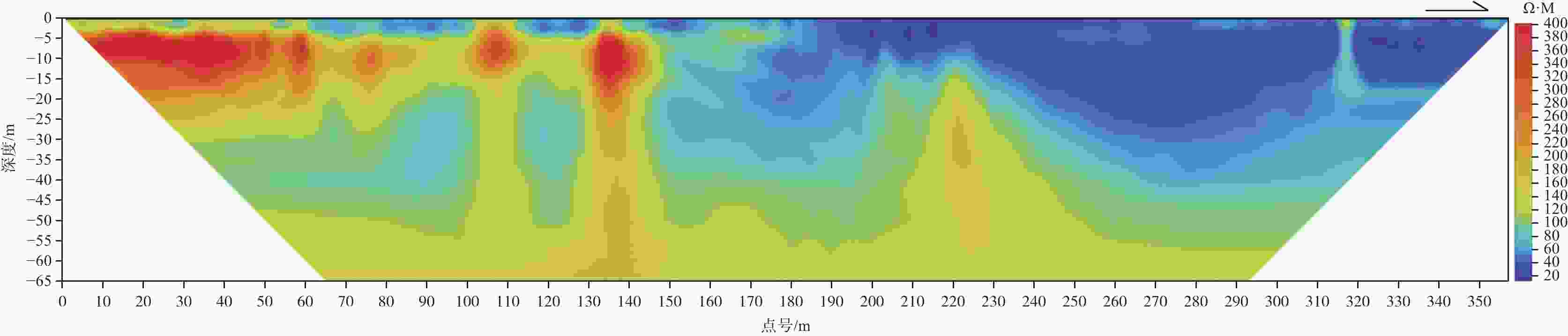

图 5 3号测线反演断面图

Figure 5. Inversion cross-section of Line 3

下载: 全尺寸图片幻灯片

图 6 3号剖面解释图

Figure 6. Interpretation of Profile 3

下载: 全尺寸图片幻灯片

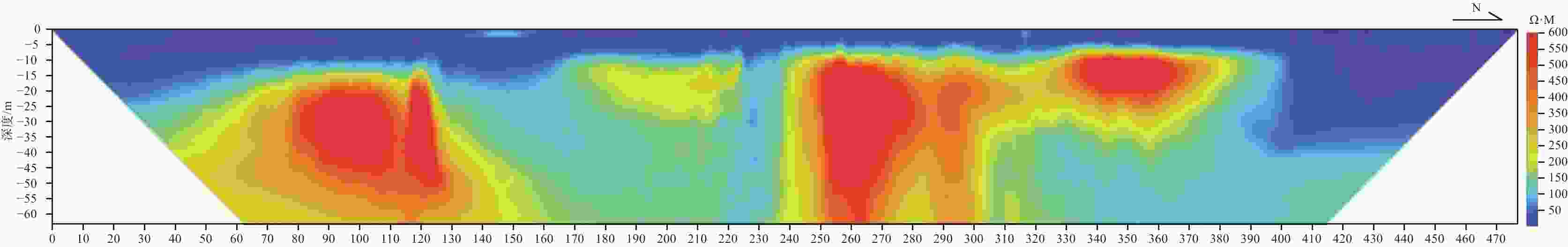

图 7 6号测线反演断面图

Figure 7. Inversion cross-section of Line 6

下载: 全尺寸图片幻灯片

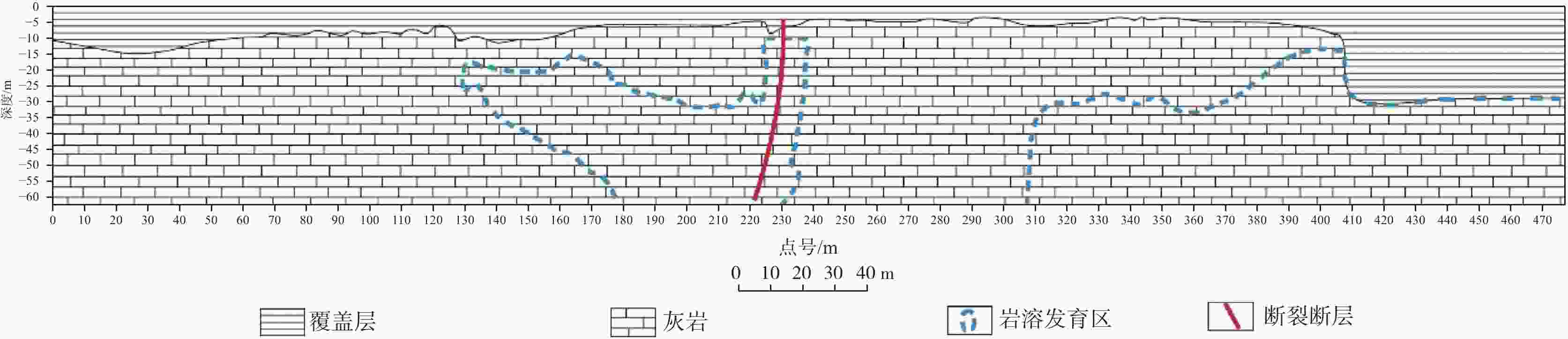

图 8 6号剖面解释图

Figure 8. Interpretation of Profile 6

下载: 全尺寸图片幻灯片

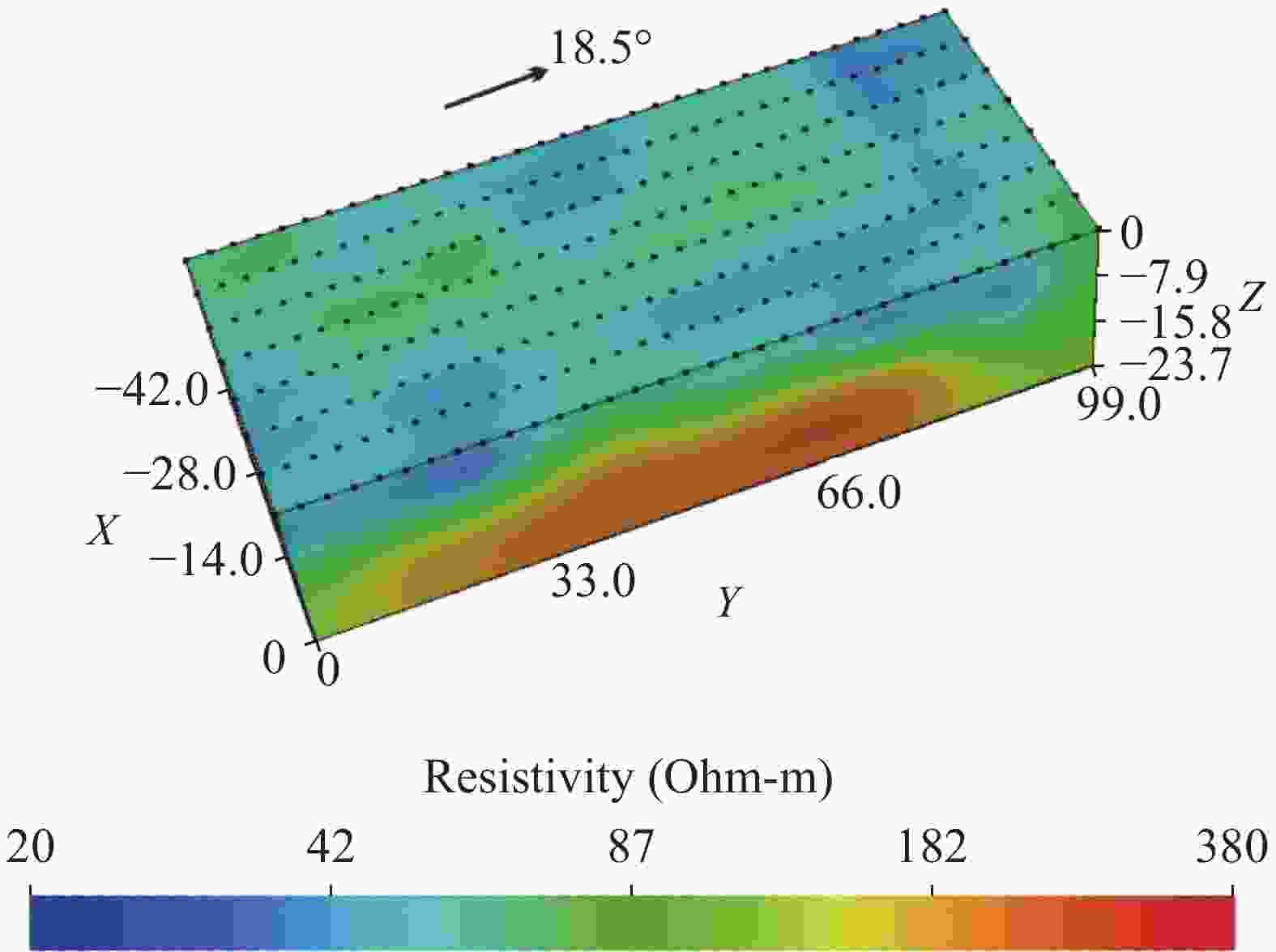

图 9 三维高密度电阻率法反演数据体可视化图

Figure 9. Visualisation of the inversion data body for the 3D high-density resistivity method

下载: 全尺寸图片幻灯片

图 10 三维高密度电阻率反演成果低阻分布图

Figure 10. Low resistance distribution of the results for 3D high-density resistivity inversion

下载: 全尺寸图片幻灯片

图 11 ZK01钻孔柱状图

Figure 11. Histogram of Drill Hole ZK01

下载: 全尺寸图片幻灯片

参考文献(18)

[1]	陈建新, 余革淼, 广东省碳酸盐岩地区形成岩溶地面塌陷的基本条件[J]. 西部探矿工程, 2005 (8): 191, 193.
[2]	高宗军. 岩溶地面塌陷形成机理与成因模式研究: 以山东泰安–莱芜为例[J]. 中国地质灾害与防治学报, 2008, 10(4): 38-43. GAO Zongjun. Study on the formation mechanism and genetic model of karst ground collapse-taking Taian-Laiwu in Shandong province as an example[J]. Chinese Journal of Geological Hazards and prevention, 2008, 10(4) : 38-43.
[3]	高宗军, 鲁统民, 王敏, 冯建国, 刘书江, 王姝. 基于岩溶水动态的岩溶地面塌陷预测预报方法[J]. 中国岩溶, 2019, 38(5): 739-745. doi: 10.11932/karst2019y09 GAO Zongjun, LU Tongmin, WANG Min, FENG Jianguo, LIU Shujiang, WANG Shu. Karst ground collapse prediction method based on karst water dynamic[J]. Carsologica Sinica, 2019, 38(5): 739-745. doi: 10.11932/karst2019y09
[4]	刘元晴, 周乐, 马雪梅, 吕琳, 郑一迪, 李伟, 孟顺祥. 莱芜盆地地下水开发利用中的环境地质问题及成因[J]. 干旱区资源与环境, 2020, 34(11): 118-124. doi: 10.13448/j.cnki.jalre.2020.307 LIU Yuanqing, ZHOU Le, MA Xuemei, LV Lin, ZHENG Yidi, LI Wei, MENG Shunxiang. Environmental geological problems and their causes in the exploitation and utilization of groundwater in the Laiwu Basin[J]. Resources and Environment in Arid Zones, 2020, 34(11): 118-124. doi: 10.13448/j.cnki.jalre.2020.307
[5]	张银松, 曹聪, 康世海, 刘家富. 重庆市中梁山地区隐伏塌陷特征及物探勘测的思路[J]. 中国岩溶, 2020, 39(6): 918-927. doi: 10.11932/karst20200611 ZHANG Yinsong, CAO Cong, KANG Shihai, LIU Jiafu. Characteristics of hidden karst collapse in the Zhongliangshan area of Chongqing and an approach of geophysical surveys[J]. Carsologica Sinica, 2020, 39(6): 918-927. doi: 10.11932/karst20200611
[6]	李富, 周洪福, 葛华. 不同类型滑坡体的高密度电阻率法勘察电性特征[J]. 物探与化探, 2019, 43(1): 215-221. doi: 10.11720/wtyht.2019.1087 LI Fu, ZHOU Hongfu, GE Hua. Investigation of electrical properties of different types of landslides by high-density resistivity method[J]. Geophysical and Geochemical Exploration, 2019, 43(1): 215-221. doi: 10.11720/wtyht.2019.1087
[7]	梁志宇. 高密度电法在隐伏岩溶勘查中的应用研究[D]. 桂林: 桂林理工大学, 2020. LIANG Zhiyu. Study on the application of high-density electrical method in concealed karst exploration[D]. Guilin: Guilin University of Technology, 2020.
[8]	马志飞, 刘鸿福, 叶章, 杨建军. 高密度电法不同装置的勘探效果对比[J]. 物探装备, 2009, 19(1): 52-55,67. MA Zhifei, LIU Hongfu, YE Zhang, YANG Jianjun. Comparison of exploration effects of different high-density electrical method devices[J]. Geophysical instruments, 2009, 19(1): 52-55,67.
[9]	张永伟. 高密度电法对地下空洞的探测数值模拟研究[D]. 南昌: 华东交通大学, 2014. ZHANG Yongwei. The numerical simulation research of high-density electrical method in underground cavity detection[D]. Nanchang: East China Jiaotong University, 2014.
[10]	Prins C, Thuro K, Krautblatter M. Testing the effectiveness of an inverse Wenner-Schlumberger array for geoelectrical karst void reconnaissance, on the Swabian Alb high plain, new line Wendlingen-Ulm, southwestern Germany[J]. Engineering Geology, 2019, 249: 71-76.
[11]	郭栋栋, 赵俐红, 高宗军. 高密度电法在泰安羊娄—旧县岩溶地面塌陷探测中的应用[J]. 地下水, 2011, 33(2): 108-110. GUO Dongdong, ZHAO Lihong, GAO Zongjun. High-density electrical method used in the application of karst collapse[J]. Groundwater, 2011, 33(2): 108-110.
[12]	郭栋栋, 赵俐红, 高宗军. 山东泰安羊娄岩溶地面塌陷的高密度电法探测应用[J]. 中国地质灾害与防治学报, 2012, 23(4): 104-108. GUO Dongdong, ZHAO Lihong, GAO Zongjun. Prospecting research of high density electrical method about kast ground collapse in Yanglou, Tai'an city Shandong province[J]. Chinese Journal of Geological Hazards and Prevention, 2012, 23(4): 104-108.
[13]	郑冰, 李柳德. 高密度电法不同装置的探测效果对比[J]. 工程地球物理学报, 2015, 12(1): 33-39. doi: 10.3969/j.issn.1003-1375.2023.01.014 ZHENG Bing, LI Liude. Comparison of detection effects of different devices in high-density electrical method[J]. Engineering geophysics, 2015, 12(1): 33-39. doi: 10.3969/j.issn.1003-1375.2023.01.014
[14]	胡开友. 基于高密度电法的地下水硝酸盐污染分布研究[D]. 济南: 山东大学, 2021. HU Kaiyou. Study on the distribution of nitrate pollution in groundwater based on high-density electrical method[D]. Jinan: Shandong University, 2021.
[15]	李美梅. 高密度电阻率法正反演研究及应用[D]. 北京: 中国地质大学(北京), 2010. LI Meimei. Study and application of high density resistivity method[D]. Beijing: China University of Geosciences (Beijing), 2010.
[16]	向阳, 李玉冰, 易利, 王腾飞, 王晨龙. 排列方式及电极距对高密度电法异常响应的影响分析[J]. 工程地球物理学报, 2011, 8(4): 426-432. doi: 10.3969/j.issn.1672-7940.2011.04.009 XIANG Yang, LI Yubing, YI Li, WANG Tengfei, WANG Chenlong. Analysis of the influence of arrangement and electrode distance on the abnormal response of high density electrometry[J]. Engineering Geophysics, 2011, 8(4): 426-432. doi: 10.3969/j.issn.1672-7940.2011.04.009
[17]	张淼淼, 石显新. 不同空间方位异常体的直流电阻率法分析[J]. 科学技术与工程, 2022, 22(2): 481-487. ZHANG Miaomiao, SHI Xianxin. Analysis of anomalous bodies in different spatial orientations by direct current resistivity method[J]. Science Technology and Engineering, 2022, 22(2): 481-487.
[18]	吴亚楠, 杨云涛, 焦玉国, 刘志涛, 王延岭, 翟代廷, 周绍智, 魏凯, 程凤. 山东省岩溶地面塌陷发育特征及诱因分析[J]. 中国岩溶, 2023, 42(1): 128-138,148. WU Yanan, YANG Yuntao, JIAO Yuguo, LIU Zhitao, WANG Yanling, ZHAI Daiting, ZHOU Shaozhi, WEI Kai, CHENG Feng. Development characteristics and inducement analysis of karst ground collapse in Shandong Province[J]. Carsologica Sinica, 2023, 42(1): 128-138,148.
