深埋公路隧道溶洞处置效果分析与隧道结构响应规律研究

崔炫 胡强

崔 炫,胡 强.深埋公路隧道溶洞处置效果分析与隧道结构响应规律研究[J].中国岩溶,2022,41(1):34-46. doi: 10.11932/karst2022y001
引用本文: 崔 炫,胡 强.深埋公路隧道溶洞处置效果分析与隧道结构响应规律研究[J].中国岩溶,2022,41(1):34-46. doi: 10.11932/karst2022y001
CUI Xuan,HU Qiang.Research on treatment effect of karst cave in deep-buried highway tunnel and response law of tunnel structure[J].Carsologica Sinica,2022,41(01):34-46. doi: 10.11932/karst2022y001
Citation: CUI Xuan,HU Qiang.Research on treatment effect of karst cave in deep-buried highway tunnel and response law of tunnel structure[J].Carsologica Sinica,2022,41(01):34-46. doi: 10.11932/karst2022y001

深埋公路隧道溶洞处置效果分析与隧道结构响应规律研究

doi: 10.11932/karst2022y001
详细信息
    作者简介:

    崔炫(1987-),男,高级工程师, 主要从事隧道设计工作或研究。E-mail: 7937803@qq.com

  • 中图分类号: U455.49

Research on treatment effect of karst cave in deep-buried highway tunnel and response law of tunnel structure

  • 摘要: 卡罗Ⅱ号隧道为贵州省平塘至罗甸高速公路控制工程,施工时揭示溶洞发育于右幅隧道的拱底部位,左右线隧道中部岩柱薄易于坍塌,特提出洞渣回填以及桥梁跨越两种处置手段并在技术及经济方面进行比选,综合确定洞渣回填为该溶洞处理方式。为验证回填方案的合理性,以有限元软件Midas GTS建立溶洞回填前后隧道开挖施工模型,分析出溶洞处理前后围岩位移、锚杆轴力以及围岩塑性区变化规律,同时监测典型断面的累计拱顶沉降、收敛变形情况,结果表明:溶洞回填后,围岩位移、锚杆轴力峰值有较大降低,中部岩柱以及下部溶腔塑性区发展由于回填得以控制,溶洞回填可有效抑制围岩变形,施工期间也并未出现突泥、涌水灾害事故,其回填方案有较高的可行性。

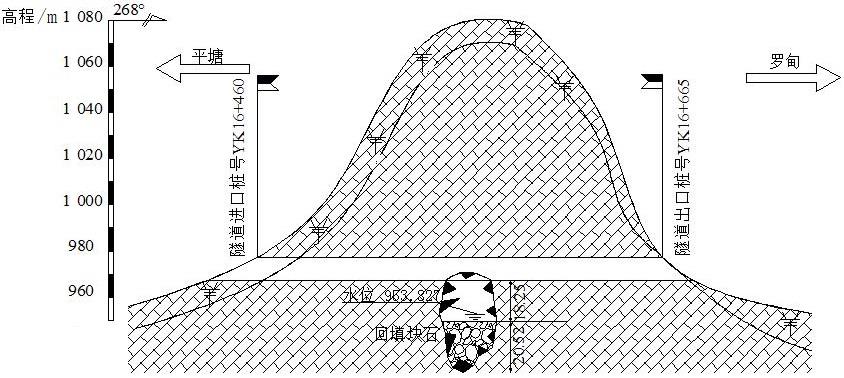

  • 图  1  隧道地质剖面

    Figure  1.  Geological section of tunnel

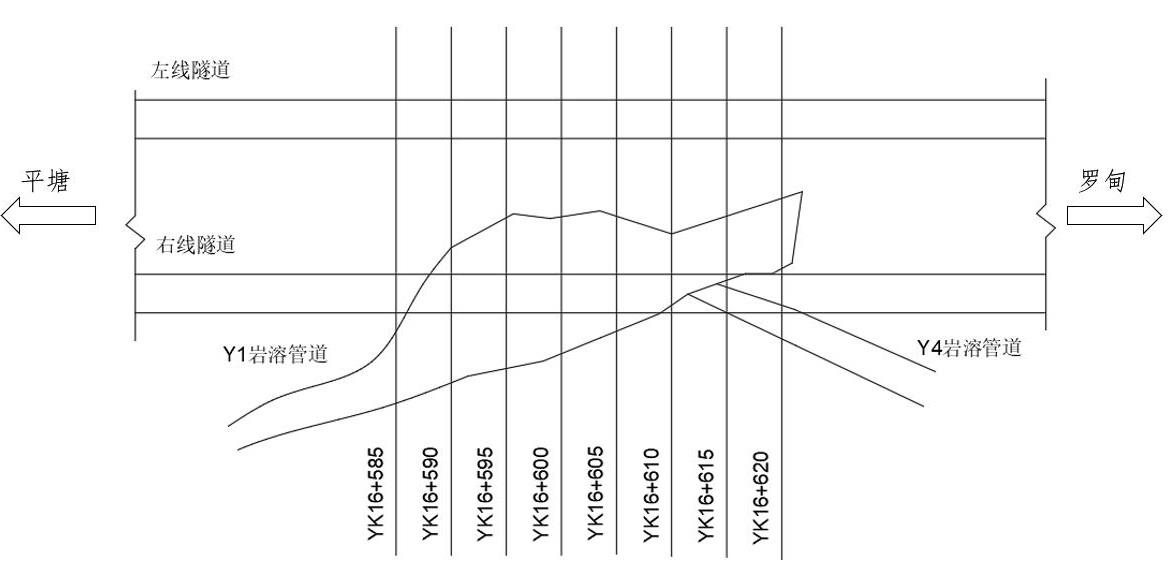

    图  2  隧道平面图

    Figure  2.  Geological plan of tunnel

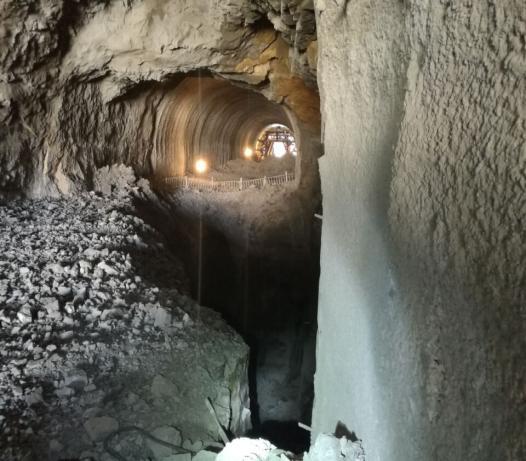

    图  3  卡罗Ⅱ号隧道溶洞溶腔形态图

    Figure  3.  Morphology of karst cavity of Karo Ⅱ tunnel

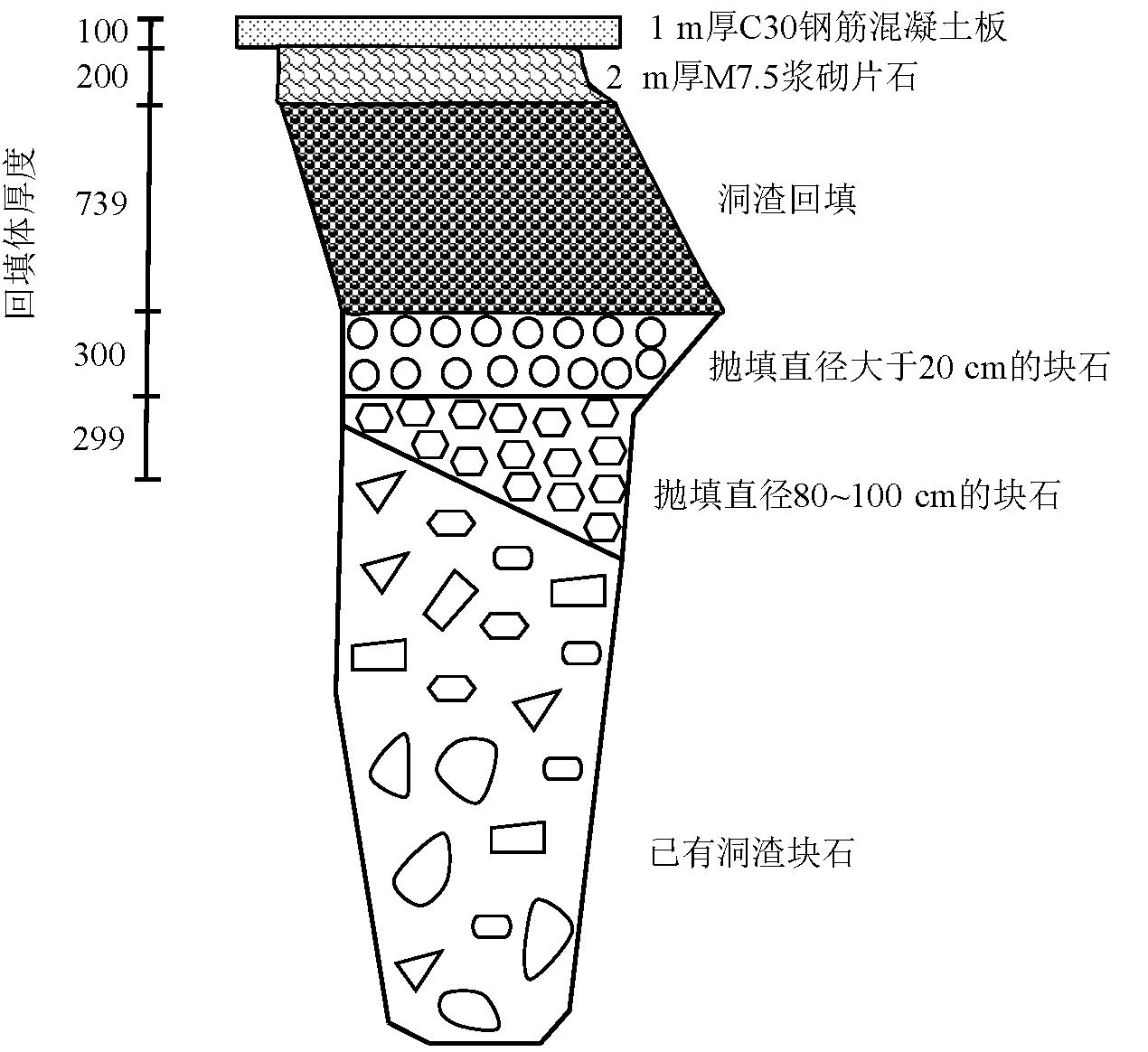

    图  4  溶洞回填剖面图(单位:cm)

    Figure  4.  Profile of karst cave backfilling (unit: cm)

    图  5  模型边界选取示意图(单位:m)

    Figure  5.  Schematic diagram of model boundary selection (unit: m)

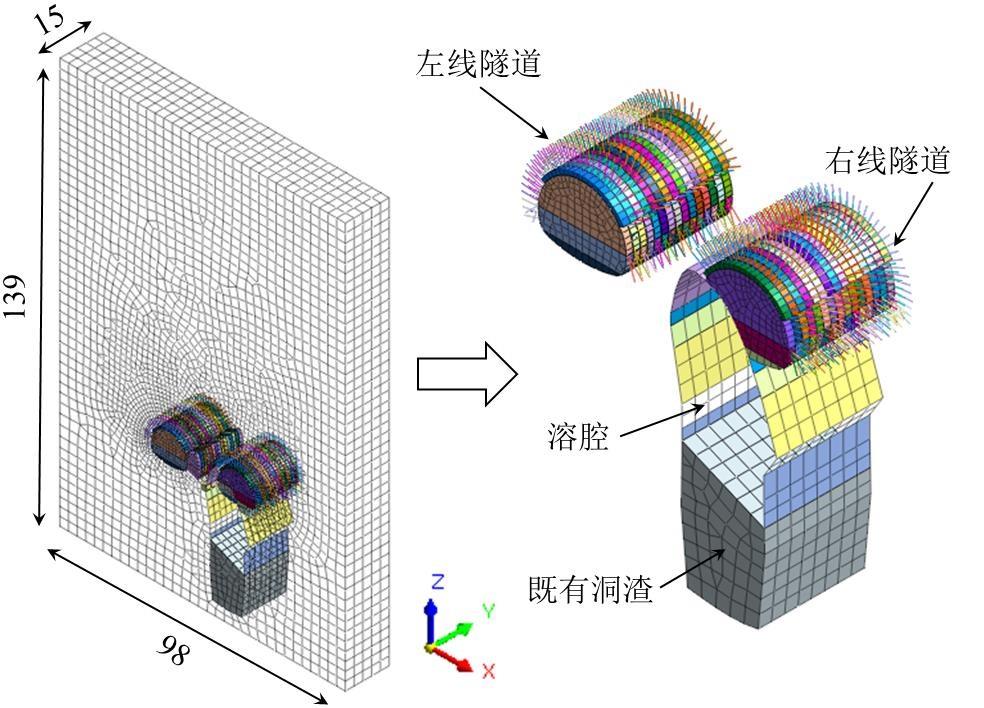

    图  6  溶洞处置前三维开挖模型(单位:m)

    Figure  6.  3D excavation model before disposal of karst cave (unit: m)

    图  7  溶洞回填后三维开挖模型(单位:m)

    Figure  7.  3D excavation model of karst cave after backfilling (unit: m)

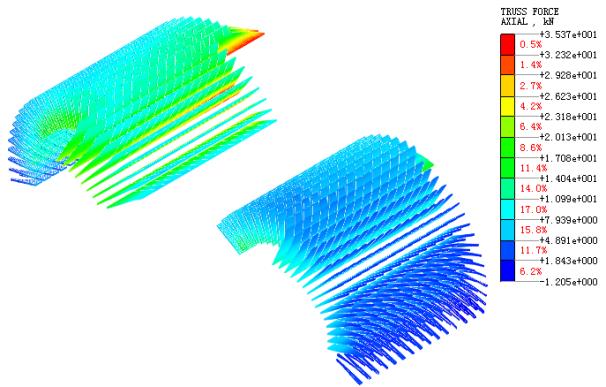

    a.  溶洞处置前

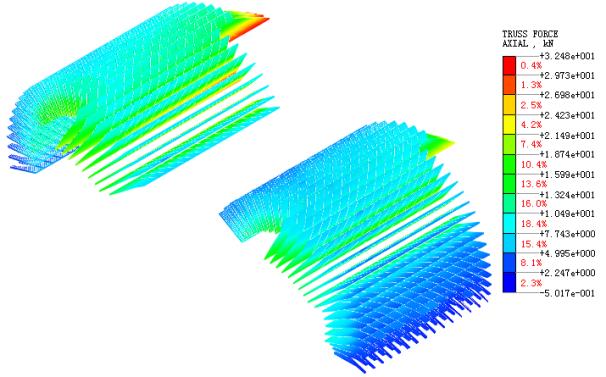

    b.  溶洞处置后

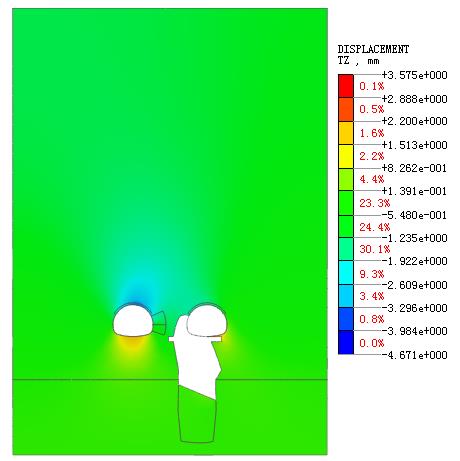

    a.  溶洞处置前

    b.  溶洞处置后

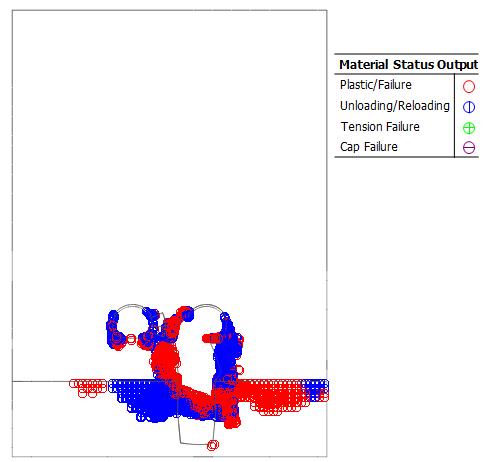

    a.  溶洞处置前围岩塑性区正视图

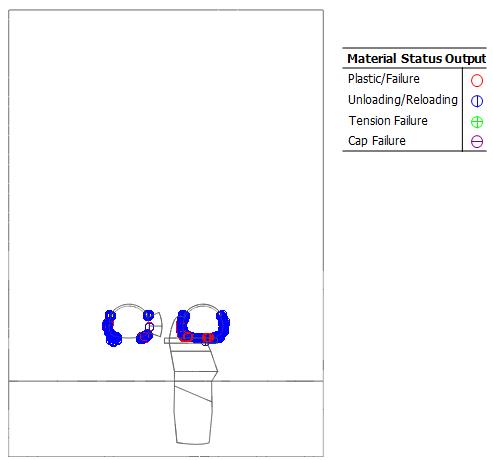

    b.  溶洞处置前围岩塑性区正视图

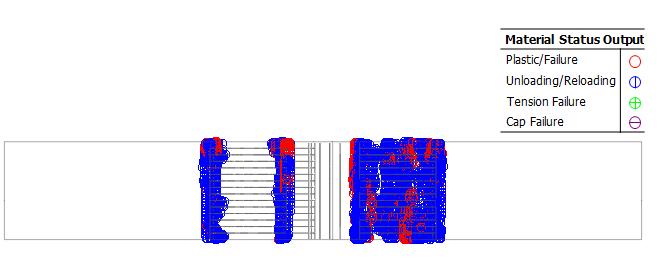

    c.  溶洞处置前围岩塑性区俯视图

    d.  溶洞处置前围岩塑性区俯视图

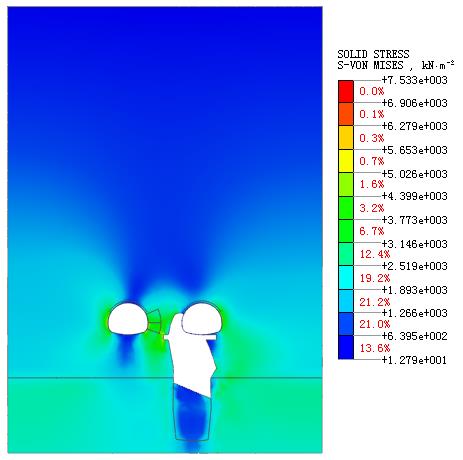

    a.  溶洞处置前V—M等效应力云图

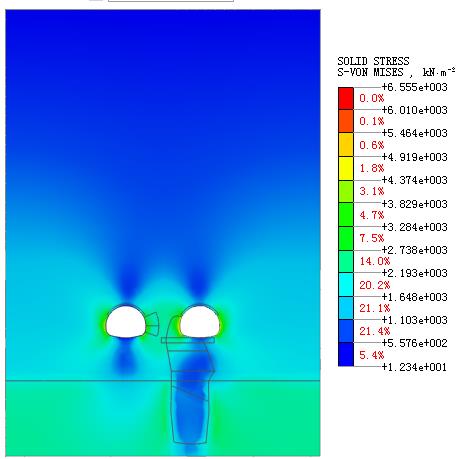

    b.  溶洞处置后V—M等效应力云图

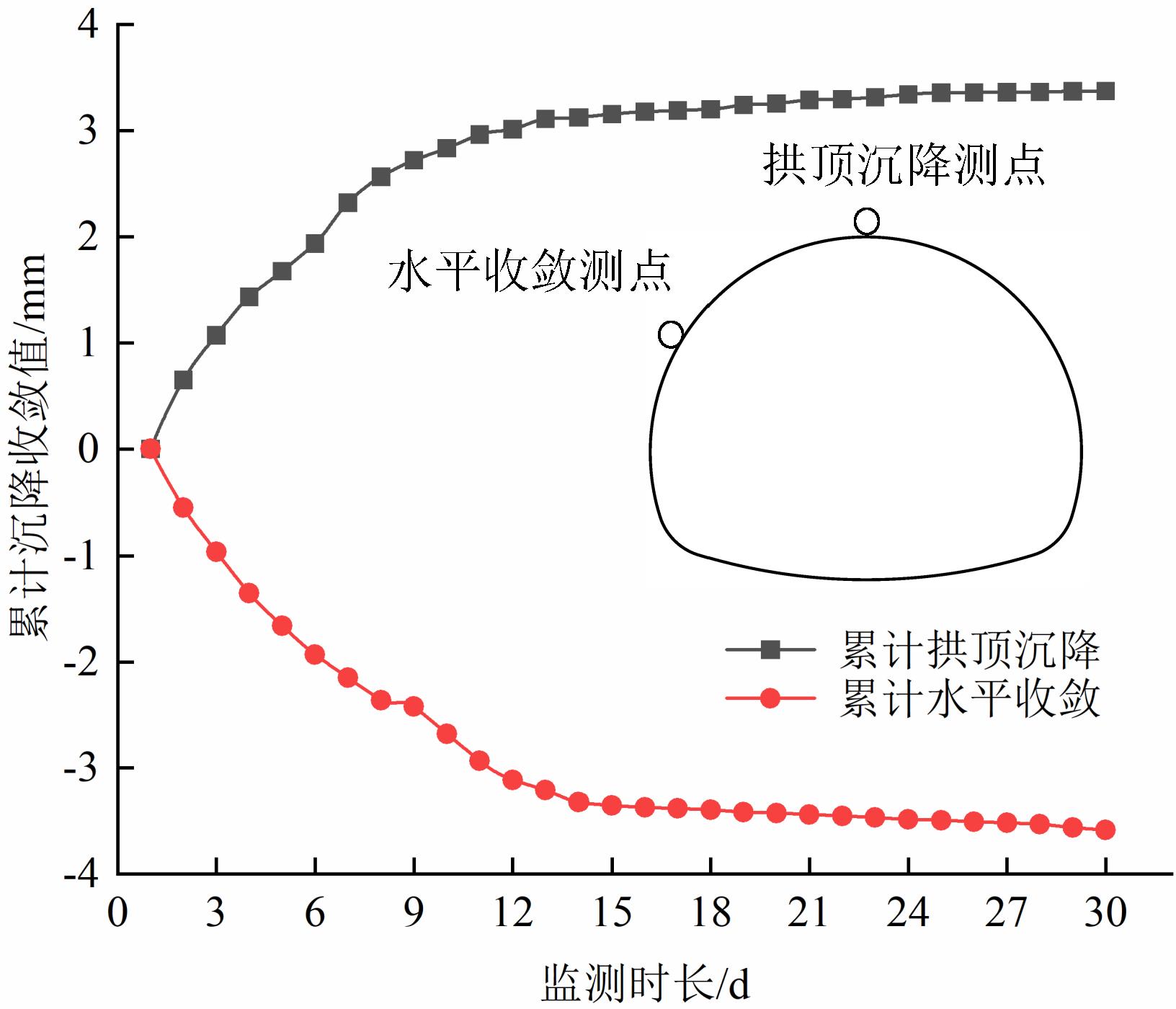

    图  12  累计变形与监测时长关系

    Figure  12.  Relationship between cumulative deformation and monitoring time

    表  1  无充填物大型溶洞处理手段案例统计20-29

    Table  1.   Case statistics of large karst cave without filling

    溶洞发育特点溶洞处理手段处理工艺简介典型工程举例
    拱腰及以上护拱法隧道衬砌顶部施做护拱,在护拱上做浆砌回填宜万铁路云雾山隧道526和617组合溶腔
    拱顶长管棚法掌子面前方超前大管棚支护宜万铁路齐岳山隧道
    暂停发育、无水直接填堵法混凝土、浆砌片石和干砌片石等密实回填封闭田德铁路陇外隧道、那丘隧道
    拱顶、边墙位置钢支撑法两侧采用钢支撑进行锚喷支护宜万铁路龙麟宫隧道2号溶腔
    基底托梁+板、梁跨方案先用弃渣进行回填,其次可以用“托梁+钢筋混凝土板”跨越溶洞洞穴南阳一隧道
    基础以及路面下桩基托梁板跨桩基础伸入溶洞围岩,然后施作桥梁跨越中老铁路朋松楠松河特大桥、锦屏二级水电站4号引水隧洞
    基底注浆加固先利用弃渣回填并进行注浆加固,待回填体沉降稳定以后浇筑混凝土底板新建杭州至长沙铁路客运专线 (江西段) HKJX-3标五分部进贤特大桥
    基底筑拱施工底板溶洞口经合理开挖和及时支护以后设计为拱桥基础支座锦屏二级水电站中3号引水隧洞岩溶处理工程
    发育纵深不小于30 m充填处置密实分层压填黔张常铁路高山隧道、成贵铁路玉京山隧道
    下载: 导出CSV

    表  2  隧道支护设计参数

    Table  2.   Design parameters of tunnel support

    材料质量重量
    工字钢Ⅰ14454.3 kg
    二衬钢筋941.87 kg
    C30二衬混凝土47 300 kg
    围岩压力100 kPa
    总计586.9 kN
    下载: 导出CSV

    表  3  处置方案对比分析

    Table  3.   Comparative analysis of disposal schemes

    方案优点缺点
    洞渣回填通过施工简单,施工周期短,风险低,造价低填筑方量较大,若第一层回填大块石时不严格按设计要求的尺寸进行施工,可能会局部堵塞过水通道,但可避免
    桥跨方案通过直接跨越溶洞,不对溶洞进行干扰施工复杂,施工周期长,中间岩柱太薄导致风险高,造价高
    下载: 导出CSV

    表  4  隧道衬砌支护参数

    Table  4.   Lining support parameters of tunnel

    支护类型喷射混凝土钢筋网环向小导管锁脚锚杆系统锚杆型钢钢架超前支护
    初期支护C20厚20 cm单层Φ625×25 cmΦ42×4钢花管间距1.0×1.2 m左侧右侧3 m Φ20药卷锚杆间距1.0×1.2 mⅠ14工字钢架间距1.0 m4 mΦ42×4钢花管间距100×40 cm
    3 mΦ42×4钢花管3 mΦ20药卷锚杆
    二次衬砌混凝土
    40 cm厚C30钢筋混凝土
    下载: 导出CSV

    表  5  围岩及支护结构物理力学参数

    Table  5.   Physical and mechanical parameters of surrounding rocks and support structures

    材料容重(γ)/kNm-³弹性模量(E)/MPa粘聚力(c)/kPa内摩擦角(φ)/º泊松比(ν)
    坡积土19.030020200.400
    灰岩25.039 10097420.262
    注浆加固区25.043 000970500.240
    M7.5浆砌片石14.524 600760280.270
    C30钢筋混凝土板24.022 0000.200
    回填洞渣15.520 600430300.220
    块石22.138 00097350.250
    初期支护24.028 0000.250
    Φ42×4钢花管78.5210 0000.300
    Φ20药卷锚杆78.5210 0000.300
    下载: 导出CSV

    表  6  左右线隧道典型断面处拱顶位移

    Table  6.   Arch displacement at typical section of left and right tunnel

    拱顶测点沉降值y=3 my=6 my=12 my=15 m
    处置前处置后处置前处置后处置前处置后处置前处置后
    左线-3.344-3.098-3.631-3.064-3.619-3.054-3.605-3.040
    右线-2.311-1.820-2.317-1.824-2.341-1.846-2.391-1.888
    下载: 导出CSV

    表  7  围岩不同位置V—M等效应力值

    Table  7.   Equivalent stress values of V-M at different positions of surrounding rocks

    溶洞情况左线隧道左拱腰左线隧道右拱腰右线隧道右拱腰右线隧道仰拱以上镂空位置中央部位溶洞左侧洞壁下方10 m位置溶洞右侧洞壁下方10 m位置原有洞渣上方中央位置
    处置前2.3264.8127.6804.3792.7117.8104.690
    处置后1.6034.2892.1124.3171.1900.9093.661
    下载: 导出CSV
  • 薛国强. 深部复杂条件下岩溶隧道破坏机理及控制对策研究[D].太原:太原理工大学,2018.

    XUEGuoqiang. Study on Failure Mechanism and Control Measures of Karst Tunnels under Deep and Complicated Conditions[D]. Taiyuan:Journal of Taiyuan University of Technology,2018.
    许兆义,李志义,白明洲,赵西民,雷军,王成亮.近接溶洞条件下隧道施工掌子面变形破坏特征数值分析[J].中国铁道科学,2011,32(4):46-52.

    XUZhaoyi, LIZhiyi, BAIMingzhou, ZHAOXimin, LEIJun, WANGChengliang. Numerical Analysis on the Features of Deformation and Damage of Tunnel Face in the Course of Construction under the Condition of Coming Close to Karst Cave[J]. China Railway Science, 2011,32(4):46-52.
    王廷伯,宋瑞刚,周秋爽.基于PFC的岩溶空洞稳定性数值模拟分析[J].公路,2017,62(7):330-334.

    WANGTingbo, SONGRuigang, ZHOUQiushuang. Numerical simulation analysis of karst cavity stability based on PFC[J]. Highway,2017,62(7):330-334.
    靳红华,王林峰,杨培丰,宋男男.降雨与岩溶渗漏联合作用下岩溶塌陷稳定性分析[J].人民长江,2019,50(9):105-112.

    JINHonghua, WANGLinfeng, YANGPeifeng, SONGNannan. Stability analysis of karst collapse considering joint effect of rainfall infiltration and groundwater leakage[J]. Yangtze River,2019,50(9):105-112.
    王志杰,唐力,蒋新政,侯伟名,徐海岩,季晓峰.大断面公路隧道临近溶洞开挖稳定性模型试验研究[J].隧道建设,2019,39(S1):16-24.

    WANGZhijie, TANGLI, JIANGXinzheng, HOUWeiming, XUHaiyan, JIXiaofeng. Model Test on Stability of Large Cross-section Highway Tunnel Adjacent to Caverns[J]. Tunnel Construction,2019,39(S1):16-24.
    赵明阶,敖建华,刘绪华,王彪.岩溶尺寸对隧道围岩稳定性影响的模型试验研究[J].岩石力学与工程学报,2004(2):213-217.

    ZHAOMingjie, AOJianhua, LIUXuhua, WANGBiao. MODEL TESTING RESEARCH ON INFLUENCE OF KARST CAVE SIZE ON STABILITY OF SURROUNDING ROCKMASSES DURING TUNNEL CONSTRUCTION[J]. Chinese Journal of Rock Mechanics and Engineering,2004(2):213-217.
    赵明阶,刘绪华,敖建华,王彪.隧道顶部岩溶对围岩稳定性影响的数值分析[J].岩土力学,2003(3):445-449.

    ZHAOMingjie, LIUXuhua, AOJianhua, WANGBiao. Numerical analysis of influence of karst caves in top of tunnel on stability of surrounding rock masses[J]. Rock and Soil Mechanics,2003(3):445-449.
    程巧建.隧道岩溶超前探测及溶洞处理技术研究[J].公路,2020,65(5):357-362.

    CHENGQiaojian. Study on Tunnel karst advanced detection and karst cave treatment technology[J]. Highway,2020,65(5):357-362.
    卓旭炀.盾构隧道穿越软塑红粘土覆盖型岩溶区的处理方法[J].现代隧道技术,2019,56(6):196-202.

    ZHUOXuyang. Countermeasures for the Shield Tunnel Passing through the Karst Area Overlying Soft Plastic Red Clays[J]. Modern Tunnelling Technology,2019,56(6):196-202.
    张亚龙,田奎.栗木山隧道大型溶洞处理施工技术[J].公路,2019,64(9):196-199.

    ZHANGYalong, TIANKui. Construction technology of large karst cave treatment in Limushan tunnel[J]. Highway, 2019,64(9):196-199.
    康勇,杨春和,张朋.浅埋岩溶隧道灾变机制及其防治[J].岩石力学与工程学报,2010,29(1):149-154.

    KANGYong, YANGChunhe, ZHANGPeng. DISASTER-INDUCED MECHANISM AND ITS TREATMENT IN SHALLOW-BURIED KARST TUNNEL[J].Chinese Journal of Rock Mechanics and Engineering,2010,29(1):149-154.
    王波,汲红旗,梁贺. 监控量测技术在岩溶隧道施工中的应用[J]. 公路交通科技(应用技术版), 2009, 5(10): 161-163.

    WANGBo, JIHongqi, LIANGHe. Application of monitoring and measuring technology in karst tunnel construction[J]. Journal of Highway and Transportation Research and Development,2009,5(10):161-163.
    谭代明,漆泰岳,莫阳春. 侧部岩溶隧道围岩稳定性数值分析与研究[J]. 岩石力学与工程学报, 2009, 28(S2): 3497-3503.

    TANDaiming, QITaiyue, MOYangchun. NUMERICAL ANALYSIS AND RESEARCH ON SURROUNDING ROCK STABILITY OF LATERAL KARST CAVE TUNNEL [J].Chinese Journal of Rock Mechanics and Engineering,2009,28(S2):3497-3503.
    徐长金,樊浩博,赖金星.溶洞对岩溶隧道稳定性影响的数值模拟分析[J].公路交通科技(应用技术版),2013,9(6):175-177.

    XUChangjin, FANHaobo, LAIJinxing. Numerical simulation analysis of the influence of karst cave on the stability of Karst Tunnel[J]. JJournal of Guizhou University of Finance and Economics,2013,9(6):175-177.
    李雄周,王星星,秦之富. 云南省某高速公路隧道岩溶段处治技术研究[J]. 地下空间与工程学报, 2017, 13(S1): 433-441.

    LIXiongzhou, WANGXingxing, TAIZhifu. Study on Treatment Technology of Karst Section of a Highway Tunnel in Yunnan Province[J]. Chinese Journal of Underground Space and Engineering,2017,13(S1):433-441.
    蒋武军,鄢定媛,王明明,李煜,陈骅伟,蒋冲,陈兆.特大型溶洞回填体基桩荷载—沉降规律与计算研究[J].岩土工程学报,2017,39(S2):67-70.

    JIANGWujun, YANDingyuan, WANGMingming, LIYu,CHENHuawei,JIANGChong,CHENZhao. Load-settlement rules and calculation of foundation piles in karst cave[J]. Chinese Journal of Geotechnical Engineering,2017,39(S2):67-70.
    程灏,胡兴.某岩溶隧道支护结构的处治效果分析[J].贵州大学学报(自然科学版),2016,33(3):126-130.

    CHENGHao, HUXing. Analysis of treating effect of supporting structure of a karst tunnel[J]. Journal of Guizhou University(Natural Sciences) ,2016,33(3):126-130.
    冯海暴,郭庆杰,张骏,陈鑫普.岩溶地区隧道跨越超大富水溶洞处理技术[J].煤炭工程,2013,45(4):41-43.

    FENGHaibao, GUOQingjie, ZHANGJun, CHENXinpu. Treatment technology of tunnel crossing super large water rich karst cave in karst area[J]. Coal Engineering,2013,45(4):41-43.
    黄福谦,曾钢.隧道穿越溶洞桩梁处治新方法应用研究[J].公路工程,2018,43(4):235-241.

    HUANGFuqian, ZENGGang. A Comprehensive Research on Pile and Beam Treatment Method Crossing in the Full-section of Tunnel Cavity[J]. Highway Engineering,2018,43(4):235-241.
    申志军.宜万铁路隧道复杂岩溶及断层处理技术[J].铁道标准设计,2010(8):62-67,77.

    SHENZhijun. Complex karst and fault treatment technology of Yiwan Railway Tunnel[J]. Railway Standard Design,2010(8):62-67,77.
    毕树峰.岩溶区高速铁路桩基础施工溶洞处理技术研究[J].中外公路,2014,34(5):200-202.

    BIShufeng. Study on treatment technology of karst cave in pile foundation construction of high-speed railway in karst area[J].Journal of China & Foreign Highway,2014,34(5):200-202.
    张欣.田德铁路陇外隧道巨型溶洞的处理[J].铁道运营技术,2011,17(2):29-31.

    ZHANGXin. Treatment of giant karst cave in Longwai tunnel of Tiande Railway[J]. Railway Operation Technology,2011,17(2):29-31.
    黄胤超,王少辉,杨凤华.那丘隧道廊道厅堂式溶洞处治方案比选[J].公路交通技术,2016,32(1):109-112.

    HUANGYinchao, WANGShaohui, YANGFenghua. Comparison and Selection of Treatment Schemes for Hall Type Caves in Corridor of Naqiu Tunnel[J]. Technology of Highway and Transport,2016,32(1):109-112.
    李强,秦余顺.中老铁路桥梁桩基岩溶处理施工技术研究[J].中国岩溶,2019,38(4):607-611.

    LIQiang, QINYushun. Technologies to deal with karst caves beneath pile foundation of the big bridge on the Laos-China railway[J]. Carsologica Sinica,2019,38(4):607-611.
    马文波,宋威.锦屏二级水电站引水隧洞岩溶段处理措施及施工[J].人民长江,2015,46(20):63-66.

    MAWenbo, SONGWei. Treatment measure and construction method for karst section of diversion tunnel of Jinping Hydropower Station[J]. Yangtze River,2015,46(20):63-66.
    薛斌,申志军.宜万铁路隧道岩溶规模化处治技术[J].铁道标准设计,2010(8):68-72.

    XUEBin, SHENZhijun. Large scale treatment technology of karst in Yiwan Railway Tunnel[J]. Railway Standard Design,2010(8):68-72.
    盛莉. 齐岳山岩溶隧道施工处理[J]. 铁道建筑, 2009(5): 61-64.

    SHENGLi. Construction treatment of Qiyueshan karst tunnel[J]. Railway Engineering,2009(5):61-64.
    王军,郭毕钧,冯国森,刘同江,孙亚飞,朵生君,于明洋.巨型溶洞回填处置与超厚回填体沉降机制研究[J].岩石力学与工程学报,2020,39(3):608-620.

    WANGJun, GUOBijun, FENGGuosen, LIUTongjiang,SUNYafei,ShengjunDUO,YUMingyang. Study on backfill treatment of huge karst caves and settlement mechanism of super thick backfill[J]. Chinese Journal of Rock Mechanics and Engineering,2020,39(3):608-620.
    张祥,梁雄,陈健,阳军生,彭雨杨. 隧道穿越巨型溶洞弃碴回填体注浆加固技术研究[J]. 现代隧道技术, 2019, 56(S2): 525-531.

    ZHANGXiang, LIANGXiong, CHENJian, YANGJunsheng,PENGYuyang. Study on Grouting Reinforcement of Waste Muck Backfills for Tunnel Passing through Giant Karst Cave[J]. Modern Tunnelling Technology,2019,56(S2):525-531.
    关宝树. 隧道工程设计要点集[M]. 北京:人民交通出版社, 2003.

    GUANBaoshu. Key points of tunnel engineering design[M]. Beijing:China Communication Press, 2003.
    寇鼎涛,高太平,闫建龙,申健昊,李刚,李昊炎,沈宇鹏.四线隧道密贴下穿既有地铁车站注浆加固圆砾石地层效果研究[J].铁道标准设计,2020,64(12):94-100.

    KOUDingtao, GAOTaiping, YANJianlong, SHENJianhao,LIGang,LIHaoyan,SHENYupeng. Research on the Effect of Grouting Reinforcement of Gravel Stratum in the Four-line Tunnel Closely Undercrossing the Existing Metro Station[J]. Railway Standard Design,2020,64(12):94-100.
    曾祥国,赵师平,姚安林,石宵爽,王清远,许书生.小净距公路隧道小导管注浆工艺对围岩稳定性影响的有限元分析[J].四川大学学报(工程科学版),2008(4):1-6.

    ZENGXiangguo, ZHAOShiping, YAOAnlin, SHIXiaoshuang,WANGQingyuan,XUShusheng. Finite Element Analysis of Small Duct Grouting Effect on Surrounding Rock Stability at Small Interval Highway Tunnel[J]. Journal of Sichuan University(Engineering Science Edition),2008(4):1-6.
    宋卫东,谢政平,张继清.天坛东门站浅埋暗挖施工顺序对地表沉降影响的数值模拟分析[J].岩石力学与工程学报,2005,24(S2):5773-5778.

    SONGWeidong, XIEZhengping, ZHANGJiqing. NUMERICAL ANALYSIS OF GROUND SURFACE SUBSIDENCE CAUSED BY CONSTRUCTION ORDERS OF SHALLOW EXCAVATION METHOD AT TIANTAN EAST-STATION[J]. Chinese Journal of Rock Mechanics and Engineering,2005,24(S2):5773-5778.
