GUO Jianmin, ZHENG Canzheng, DING Qingzhong, WANG Hongzhen, FU Yang, Gong Liang. Application of microtremor survey and three-dimensional geological modeling in urban karst geological survey[J]. CARSOLOGICA SINICA, 2026, 45(2): 292-301. doi: 10.11932/karst20260202
Citation: GUO Jianmin, ZHENG Canzheng, DING Qingzhong, WANG Hongzhen, FU Yang, Gong Liang. Application of microtremor survey and three-dimensional geological modeling in urban karst geological survey[J]. CARSOLOGICA SINICA, 2026, 45(2): 292-301. doi: 10.11932/karst20260202
shu

Application of microtremor survey and three-dimensional geological modeling in urban karst geological survey

doi: 10.11932/karst20260202
  • 1.

    Groundwater Research Center, Shandong Provincial Geo-mineral Engineering Exploration Institute, Jinan, Shandong 250014, China

  • 2.

    Jinan Rail Transit Group Co., Ltd., Jinan, Shandong 250014, China

  • 3.

    School of Geo-Science and Technology, Zhengzhou University, Zhengzhou, Henan 450001, China

  • Received Date: 2024-06-21
  • Accepted Date: 2025-08-26
  • Rev Recd Date: 2025-05-13
    Abstract

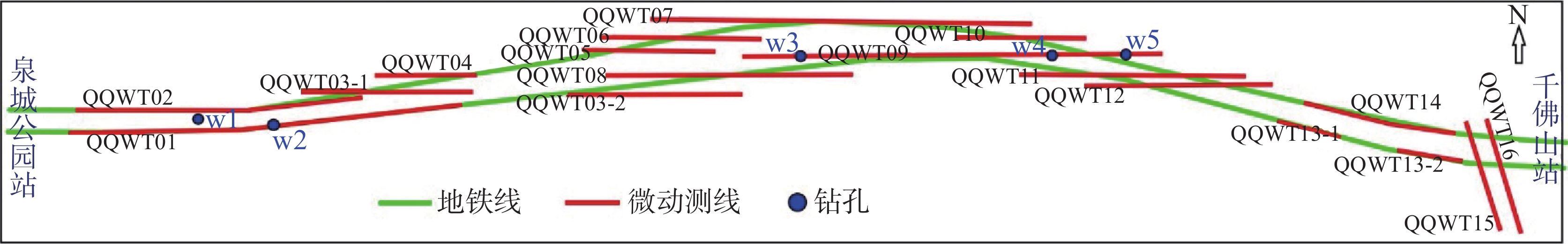

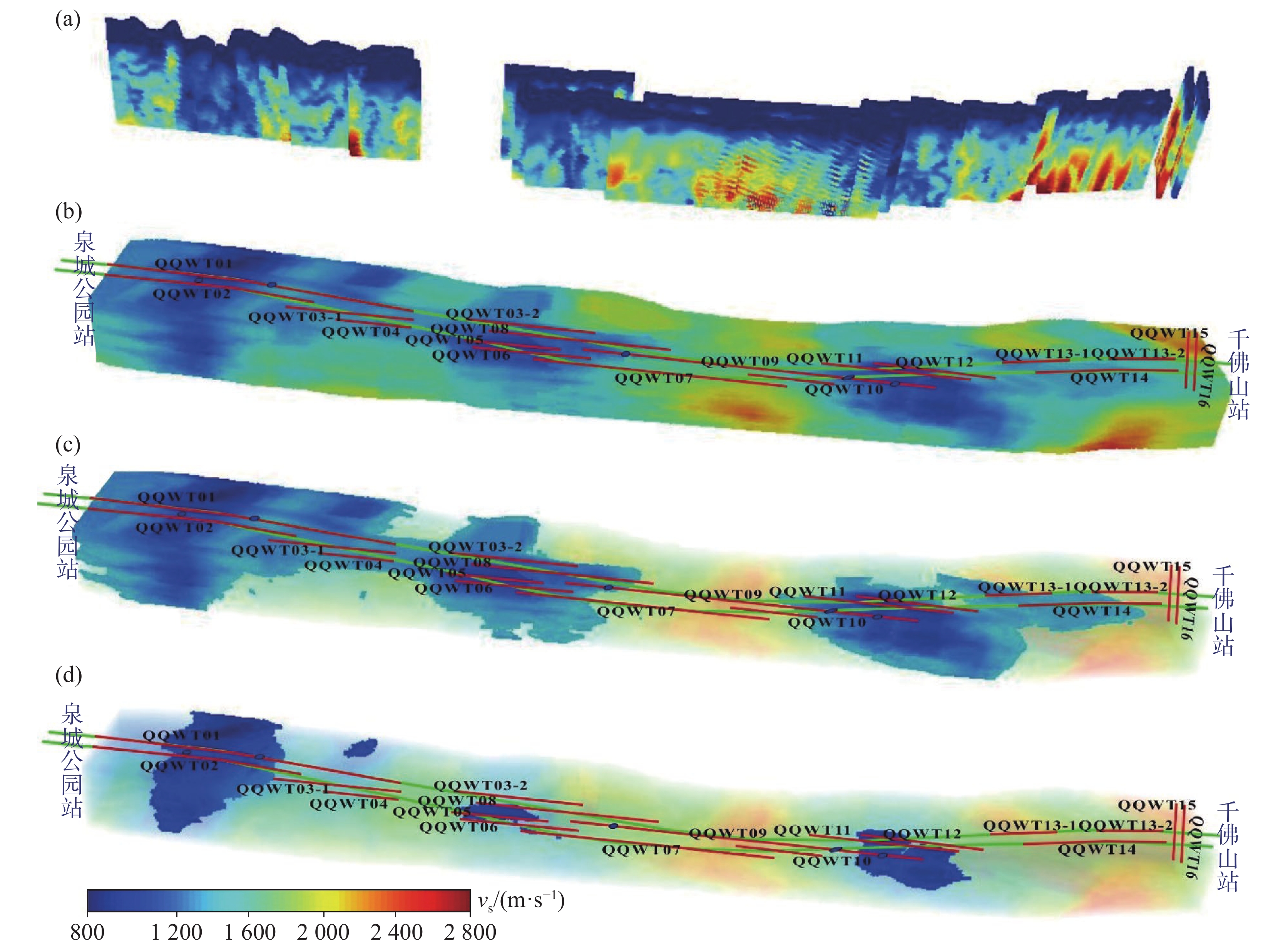

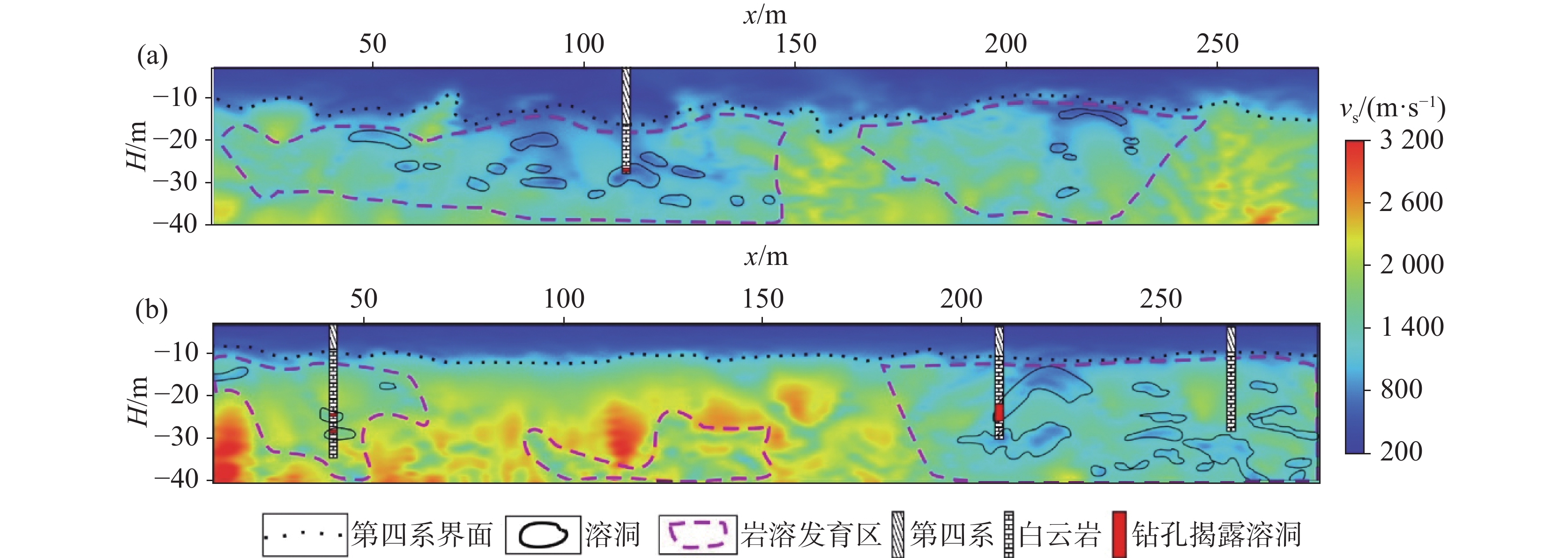

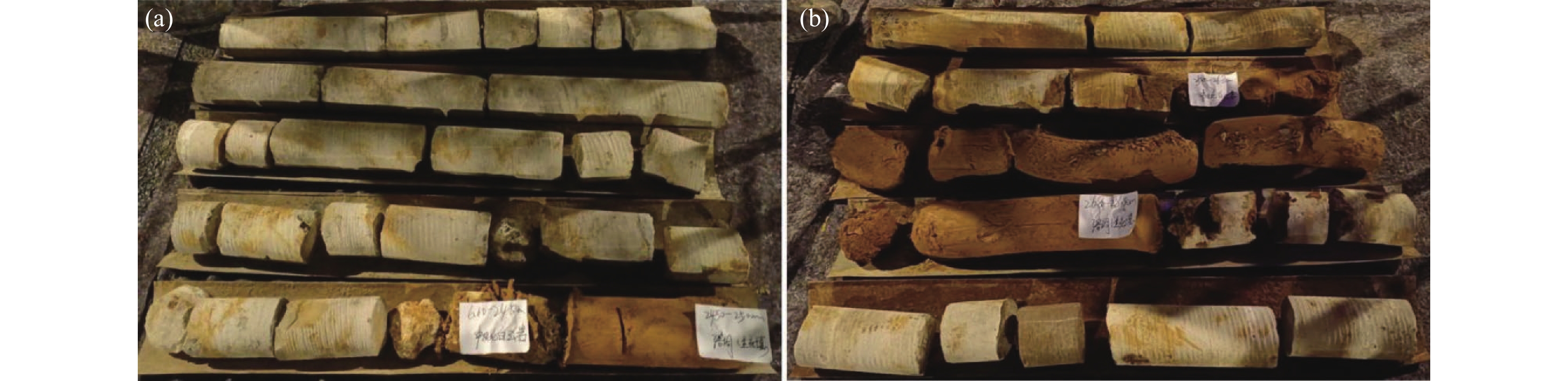

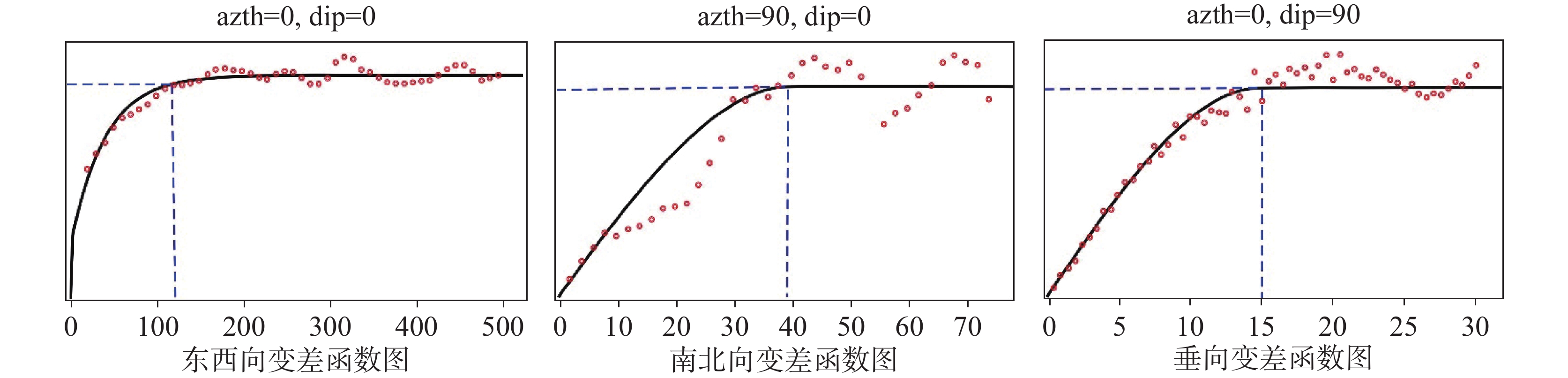

  • The exploration of underground karst geological structures in urban environments poses significant challenges for conventional geophysical methods. These methods often suffer from high levels of noise, constraints on survey line layouts due to dense infrastructure, and the inherent limitation of two-dimensional (2D) data in representing the three-dimensional (3D) spatial complexity of geological bodies. To address these issues, this study proposes and demonstrates an integrated methodological framework that combines microtremor survey technology with 3D geo-statistical modeling to enhance subsurface characterization in karst terrains.The research was conducted within the planned section between Quancheng Park Station and Qianfo Mountain Station on Line 4 of the Jinan Urban Rail Transit System, a typical urban area underlain by karst-prone strata. Initially, a two-dimensional microtremor survey was implemented. Employing a linear array configuration with two-meter receiver spacing using three-component geophones, data were collected along 18 survey lines totaling 2,242 meters in length, encompassing 1,139 physical points. This passive-source method effectively utilizes ambient seismic noise generated by urban activities (e.g., traffic) and natural phenomena as the signal source, thereby overcoming the noise sensitivity of active-source methods and simplifying field logistics. Data processing involved preprocessing the recorded signals, extracting Rayleigh wave dispersion curves using the Spatial Auto-Correlation (SPAC) method, and subsequently inverting these curves to derive 2D shear-wave velocity (Vs) profiles. These profiles visually delineate subsurface velocity structures, where low-velocity anomalies against higher-velocity bedrock backgrounds indicate potential karst features such as cavities, dissolution zones, or fractured rocks.The inversion results from representative lines (e.g., QQWT01 and QQWT09) reveal a vertically layered velocity structure: very low velocities (500 m·s−1) in the shallow Quaternary overburden; intermediate velocities (500–1 500 m·s−1) corresponding to moderately weathered and karstified dolomite; and higher velocities (1 500 m·s−1) representing more competent, less weathered bedrock. Laterally, several distinct low-velocity zones were identified and interpreted as areas of karst development. Importantly, the interpretations from these 2D profiles showed a high degree of consistency with borehole data (e.g., boreholes W2, W3, W4), which encountered cavities and filled materials at depths predicted by the velocity anomalies, thereby validating the reliability of the microtremor method for karst detection in this setting.However, 2D profiles provide information only along specific lines, leaving gaps in understanding the full 3D spatial distribution of karst features. To address this limitation, the study employed 3D geostatistical modeling techniques. The densely sampled Vs data points from all 2D profiles were treated as a regionalized variable. Variogram analysis was conducted to quantify the spatial correlation structure of shear-wave velocity in three principal directions: along the dominant survey direction (approximate E–W), perpendicular to it (N–S), and vertically. An exponential variogram model was fitted, revealing spatial correlation ranges (e.g., 120 m maximum, 15 m minimum) that characterize the continuity and variability of the geological units. Using ordinary kriging as the estimation method, a continuous 3D Vs model of the entire study volume was constructed based on the 2D profile data and the derived variogram parameters.This 3D model was then visualized using volume rendering techniques. By setting transparency thresholds for different velocity ranges, the model enables intuitive 3D visualization of karst-prone zones. For instance, rendering zones with Vs < 1,500 m·s−1 as opaque highlights volumes with potential karst development. Further refinement, such as extracting volumes with Vs < 1,200 m·s−1, helps identify areas with a high incidence of cavities. Comparative analysis between the 3D model extracts and detailed 2D profile interpretations indicates that the geo-statistically derived model does not precisely delineate individual, isolated cavities. This limitation is attributed to the smoothing effect inherent in kriging interpolation, which tends to amalgamate closely spaced anomalies. Instead, the model effectively outlines the broader "karst high-incidence zones" or "karst development regions", where the probability of encountering karst features is significantly elevated.Despite this smoothing limitation, the primary value of the integrated approach lies in its comprehensive 3D perspective. It synthesizes scattered 2D line data into a coherent volumetric model, providing a more holistic view of subsurface karst hazard distribution than is possible with 2D sections alone. The clearly visualized 3D zones of elevated karst risk offer invaluable, spatially explicit guidance for engineering planning, risk assessment, and targeted mitigation strategies in urban rail transit and other underground projects. This methodology enhances exploration efficiency by maximizing information extraction from passive seismic data, reduces costs associated with excessively dense drilling, and provides a novel, more comprehensive pathway for precise imaging of urban underground karst systems-ultimately contributing to safer construction and long-term infrastructure maintenance.



    • FullText(HTML)
  • loading
    • References(18)
  • [1]
    吴亚楠, 杨云涛, 焦玉国, 刘志涛, 王延岭, 翟代廷, 周绍智, 魏凯, 程凤. 山东省岩溶塌陷发育特征及诱因分析[J]. 中国岩溶, 2023, 42(1): 128-138, 148.

    Wu Ya’nan, Yang Yuntao, Jiao Yuguo, Liu Zhitao, Wang Yanling, Zhai Daiting, Zhou Shaozhi, Wei Kai, Cheng Feng. Analysis on development characteristics and inducement of karst collapse in ShandongProvince[J]. Carsologica Sinica, 2023, 42(1): 128-138, 148.
    [2]
    Gutiérrez F, Parise M, De Waele J, Jourde H. A review on natural and human-induced geohazards and impacts in karst[J]. Earth-Science Reviews, 2014, 138: 61-88. doi: 10.1016/j.earscirev.2014.08.002
    [3]
    Chalikakis K, Plagnes V, Guerin V, Valois R, Bosch F P. Contribution of geophysical methods to karst-system exploration: An overview[J]. Hydrogeology Journal, 2011, 19: 1169-1180. doi: 10.1007/s10040-011-0746-x
    [4]
    李华, 王东辉, 张伟, 杨剑, 王桥, 廖国忠, 王春山, 韩浩东, 席振铢, 王亮, 刘胜, 夏友刚, 李颖, 杨涛. 地球物理方法在城市地质结构精细化探测中最优方法组合研究: 以成都市天府新区为例[J]. 中国地质, 2023, 50(6): 1691-1704.

    Li Hua, Wang Donghui, Zhang Wei, Yang Jian, Wang Qiao, Liao Guozhong, Wang Chunshan, Han Haodong, Xi Zhenzhu, Wang Liang, Liu Sheng, Xia Yougang, Li Ying, Yang Tao. The application effect of geophysical method in fine exploration of urban geological structure and study of optimal combination method: A case study of Tianfu New Area in Chengdu, Sichuan Province[J]. Geology in China, 2023, 50(6): 1691-1704.
    [5]
    Okada H, Suto K, Asten M W. The microtremor survey method[M]. Tulsa, USA: Society of Exploration Geophysicists, 2004.
    [6]
    何正勤, 胡刚, 鲁来玉, 张维, 叶太兰, 沈坤. 云南通海盆地的浅层速度结构[J]. 地球物理学报, 2013, 56(11): 3819-3827.

    He Zhengqin, Hu Gang, Lu Laiyu, Zhang Wei, Ye Tailan, Shen Kun. The shallow velocity structure for the Tonghai basin in Yunnan[J]. Chinese Journal of Geophysics, 2013, 56(11): 3819-3827.
    [7]
    徐佩芬, 李世豪, 杜建国, 凌苏群, 郭慧丽, 田宝卿. 微动探测: 地层分层和隐伏断裂构造探测的新方法[J]. 岩石学报, 2013, 29(5): 1841-1845.

    Xu Peifen, Li Shihao, Du Jianguo, Ling Suqun, Guo Huili, Tian Baoqing. Microtermor survey method: A new geophysical method for dividing strata and detecting the buried fault structures[J]. Acta Petrologica Sinica, 2013, 29(5): 1841-1845.
    [8]
    徐佩芬, 侍文, 凌苏群, 郭慧丽, 李志华. 二维微动剖面探测“孤石”: 以深圳地铁7号线为例[J]. 地球物理学报, 2012, 55(6): 2120-2128.

    Xu Peifen, Shi Wen, Ling Suqun, Guo Huili, Li Zhihua. Mapping spherically weathered "Boulders" using 2D microtremor profiling method: A case study along subway line 7 in Shenzhen[J]. Chinese Journal of Geophysics, 2012, 55(6): 2120-2128.
    [9]
    侯智超, 柴新朝, 方成, 程建闯. 微动技术在轨道交通勘察地质分层中的应用[J]. 工程勘察, 2024, 52(6): 65-71.

    Hou Zhichao, Chai Xinchao, Fang Cheng, Cheng Jianchuang, Cheng Jianchuang. Application of microtremor ultrasound technique in geological layering exploration of urban rail transit[J]. Geotechnical Investigation & Surveying, 2024, 52(6): 65-71.
    [10]
    邬健强, 陈 松, 徐俊杰, 郑智杰, 刘永亮, 王越. 被动源面波法在城市居民区建筑间的应用[J]. 中国岩溶, 2023, 42(6): 1322-1330.

    Wu Jianqiang, Chen Song, Xu Junjie, Zheng Zhijie, Liu Yongliang, Wang Yue, Zheng Zhijie, Liu Yongliang, Wang Yue. Application of the method of passive surface wave to the exploration of urban residential area[J]. Carsologica Sinica, 2023, 42(6): 1322-1330.
    [11]
    刘伟, 甘伏平, 赵伟, 陈玉玲. 高密度电法与微动技术组合在岩溶塌陷分区中的应用分析: 以广西来宾吉利塌陷为例[J]. 中国岩溶, 2014, 33(1): 118-122.

    Liu Wei, Gan Fuping, Zhao Wei, Chen Yuling. Application analysis of combining high density resistivity and microtremor survey methods in areas of karst collapse: A case study of the collapse in Jili village, Laibin, Guangxi[J]. Carsologica Sinica, 2014, 33(1): 118-122.
    [12]
    张中, 冯文成, 林杨. 微动探测技术在盾构隧道穿越城区岩溶地层中的应用[J]. 物探与化探, 2025, 49(2): 520-528.

    Zhang Zhong, Feng Wencheng, Lin Yang. Application of microtremor survey technology in shield tunnels Passing through urban karst formation[J]. Geophysical and Geochemical Exploration, 2025, 49(2): 520-528.
    [13]
    Tolosana-Delgado R, Mueller U, Vanden Boogaart K G, Pawlowsky-Glahn V, Egozcue J J. Geostatistics for compositional data: an overview[J]. Mathematical Geosciences, 2019, 51: 485-526. doi: 10.1007/s11004-018-9769-3
    [14]
    Oliver M A, Webster R. A tutorial guide to geostatistics: Computing and modelling variograms and kriging[J]. Catena, 2014, 113: 56-69. doi: 10.1016/j.catena.2013.09.006
    [15]
    Høyer A S, Vignoli G, Hansen T M, Vu L T, A Keefer D, Jørgensen F. Multiple-point statistical simulation for hydrogeological models: 3-D training image development and conditioning strategies[J]. Hydrology and Earth System Sciences, 2017, 21: 6069-6089. doi: 10.5194/hess-21-6069-2017
    [16]
    张文彪, 段太忠, 何治亮, 赵华伟, 刘彦锋, 鲍典. 碳酸盐岩古溶洞层级约束地质建模方法探讨: 以塔河油田奥陶系某缝洞单元为例[J]. 地质科技通报, 2022, 41(3): 273-281. doi: 10.19509/j.cnki.dzkq.2021.0067

    Zhang Wenbiao, Duan Taizhong, He Zhiliang, Zhao Huawei, Liu Yanfeng, Bao Dian. Hierarchical constraint geological modelling method for carbonate paleokarst caves: A case study of Ordovician fracture-cavern unit in Tahe Oilfield[J]. Bulletin of Geological Science and Technology, 2022, 41(3): 273-281. doi: 10.19509/j.cnki.dzkq.2021.0067
    [17]
    邰文星, 周琦, 杨成富, 吴冲龙, 赵平, 刘建中, 王泽鹏, 何金坪, 刘光富. 黔西南者相金矿床三维地质可视化建模及应用[J]. 地球科学, 2023, 48(11): 4017-4033.

    Tai Wenxing, Zhou Qi, Yang Chengfu, Wu Chonglong, Zhao Ping, Liu Jianzhong, Wang Zepeng, He Jinping, Liu Guangfu. 3D geological visualization modeling and its application in Zhexiang gold deposit, Southwest Guizhou Province[J]. Earth Science, 2023, 48(11): 4017-4033.
    [18]
    杨丽芝, 曲万龙, 刘春华, 尚浩, 祈晓凡. 济南城市工程地质条件分区及轨道交通建设适宜性研究[J]. 水资源与水工程学报, 2012, 23(6): 120-123.

    Yang Lizhi, Qu Wanlong, Liu Chunhua, Shang Hao, Qi Xiaofan. Analysis of suitability about the division of engineering geological condition and rail transit construction in Jinan urbon area[J]. Journal of Water Resources & Water Engineering, 2012, 23(6): 120-123.
