Numerical simulation of groundwater in karst tunnel areas based on MODFLOW-CFPv2

doi: 10.11932/karst20250403
  • 1.

    Southwest Jiaotong University, Chengdu, Sichuan 611756, China

  • 2.

    China Railway Eryuan Engineering Group Co.,Ltd., Chengdu, Sichuan 610031, China

  • 3.

    North China Municipal Engineering Design & Research InstituteCo.,Ltd., Tianjin 300074, China

  • Received Date: 2024-11-20
  • Accepted Date: 2025-03-05
  • Rev Recd Date: 2025-02-27
    • Available Online: 2025-11-07
    Abstract

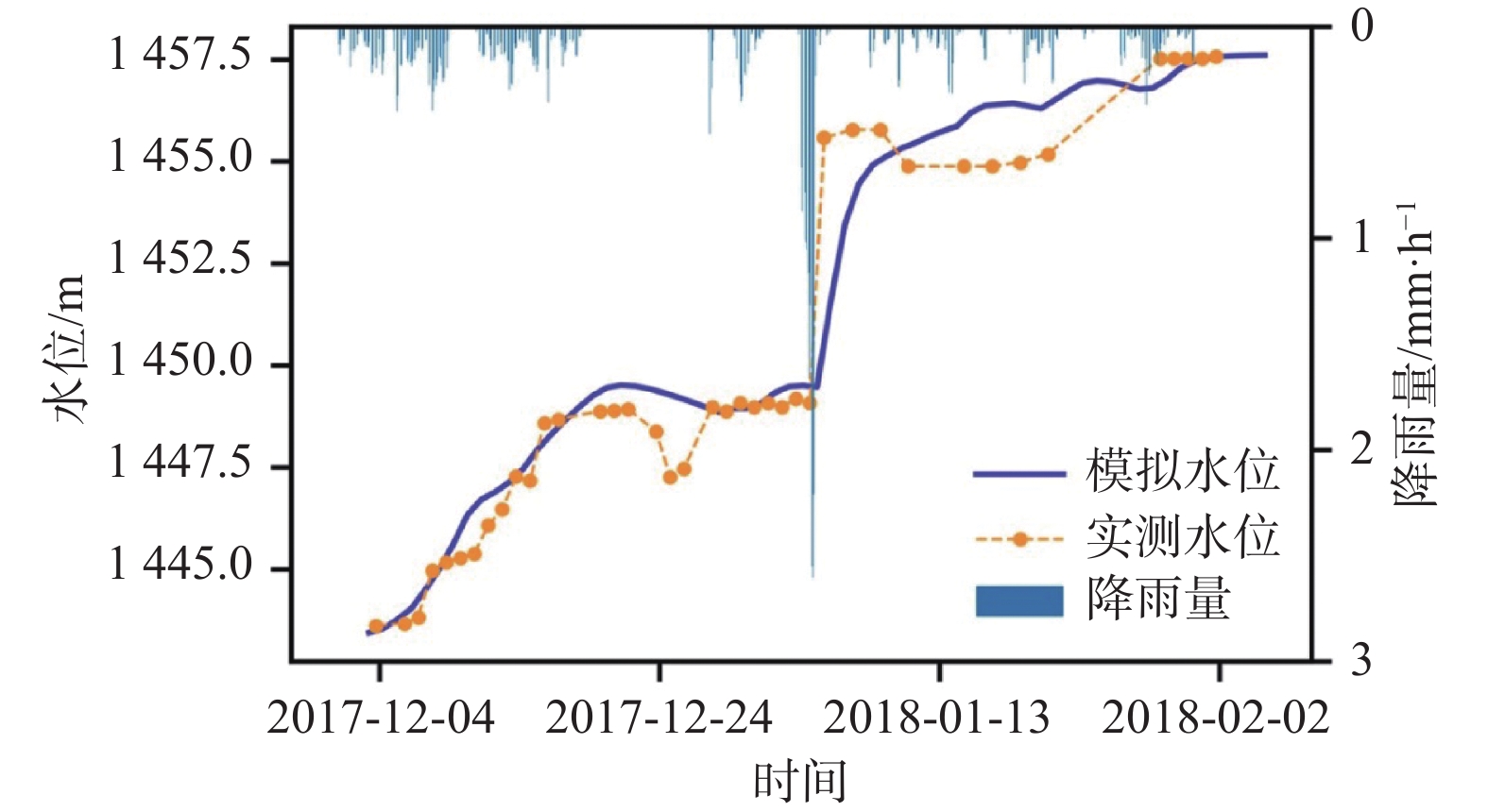

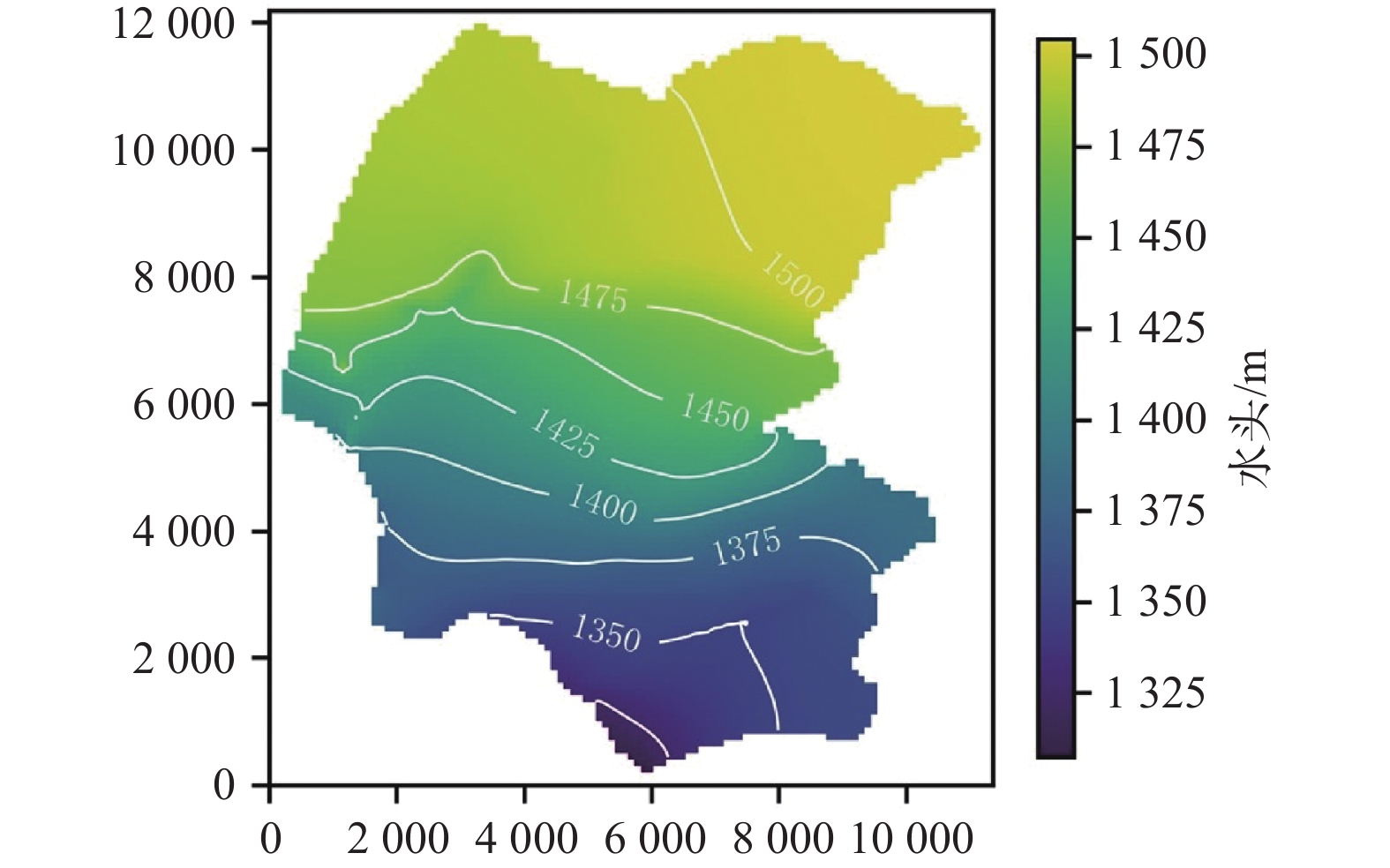

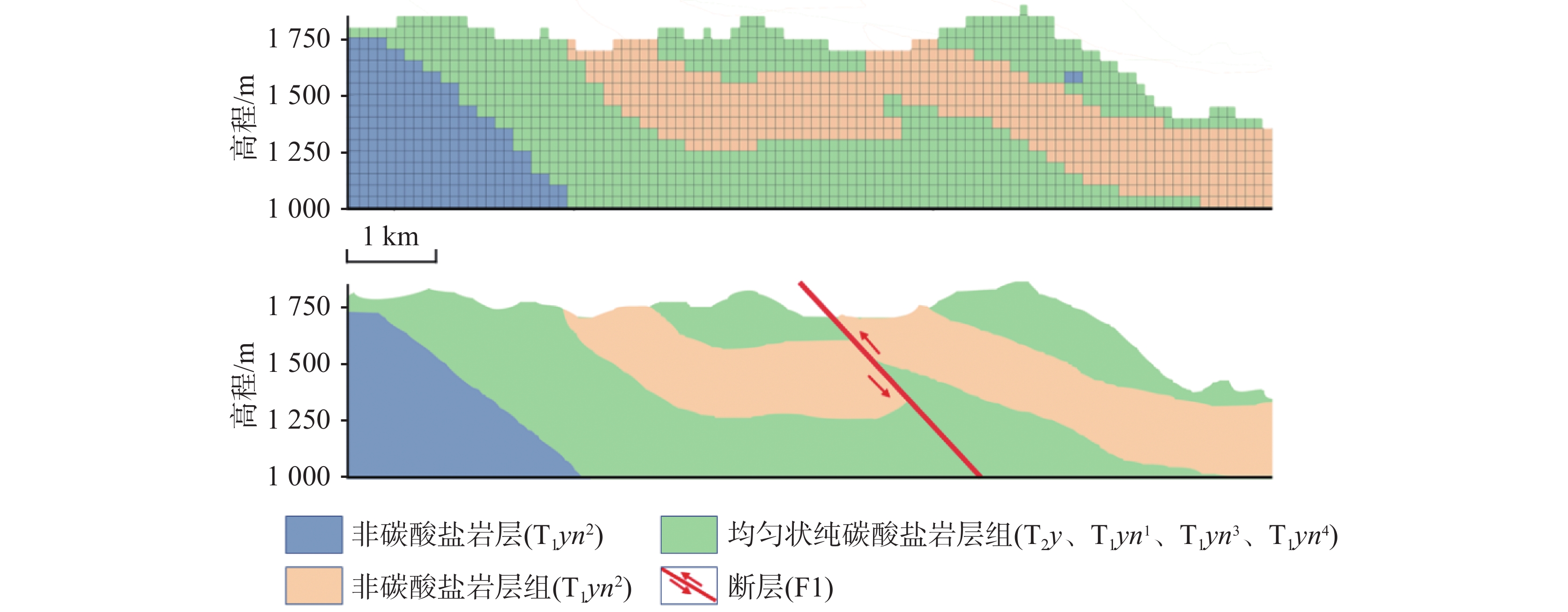

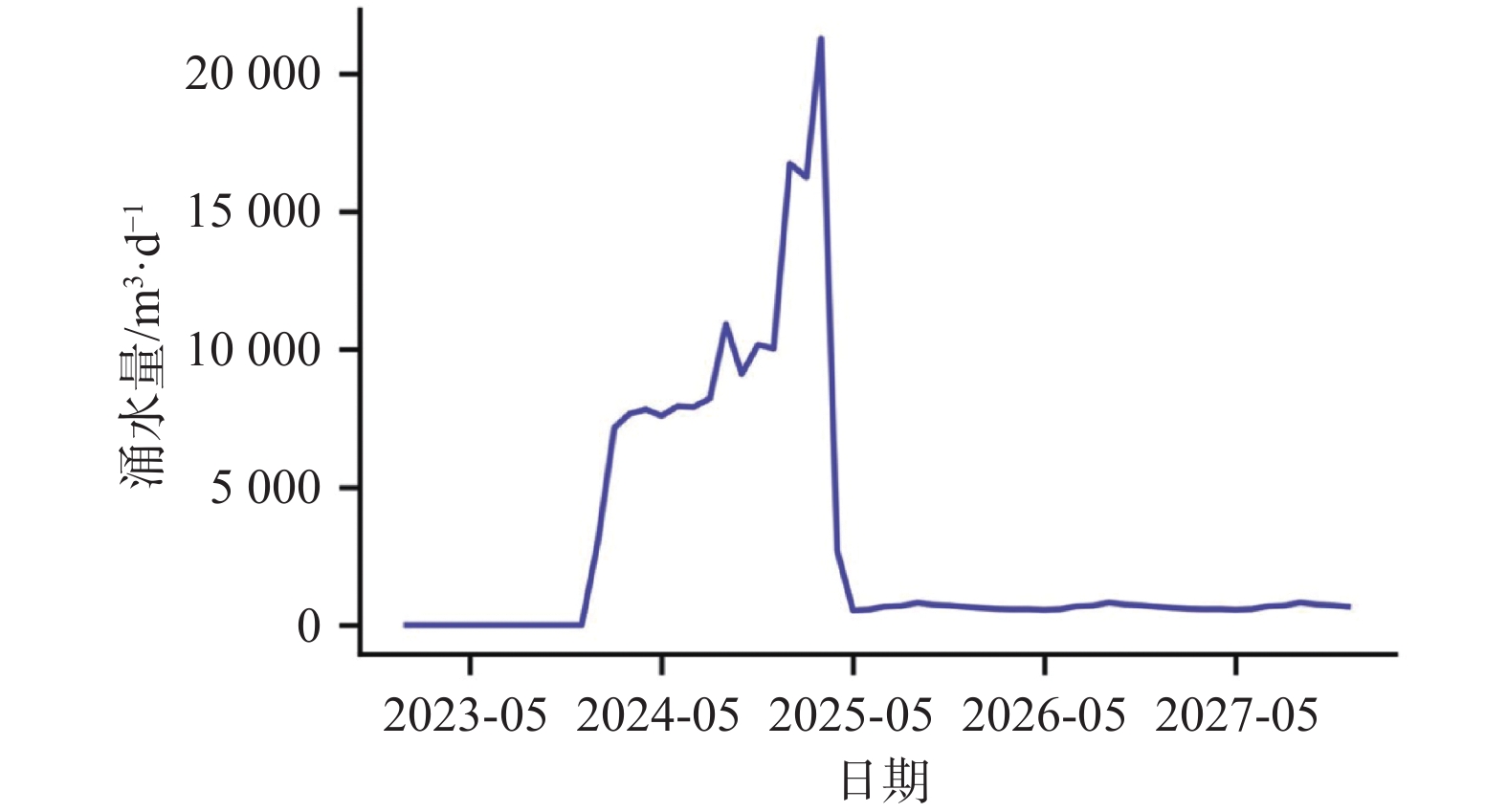

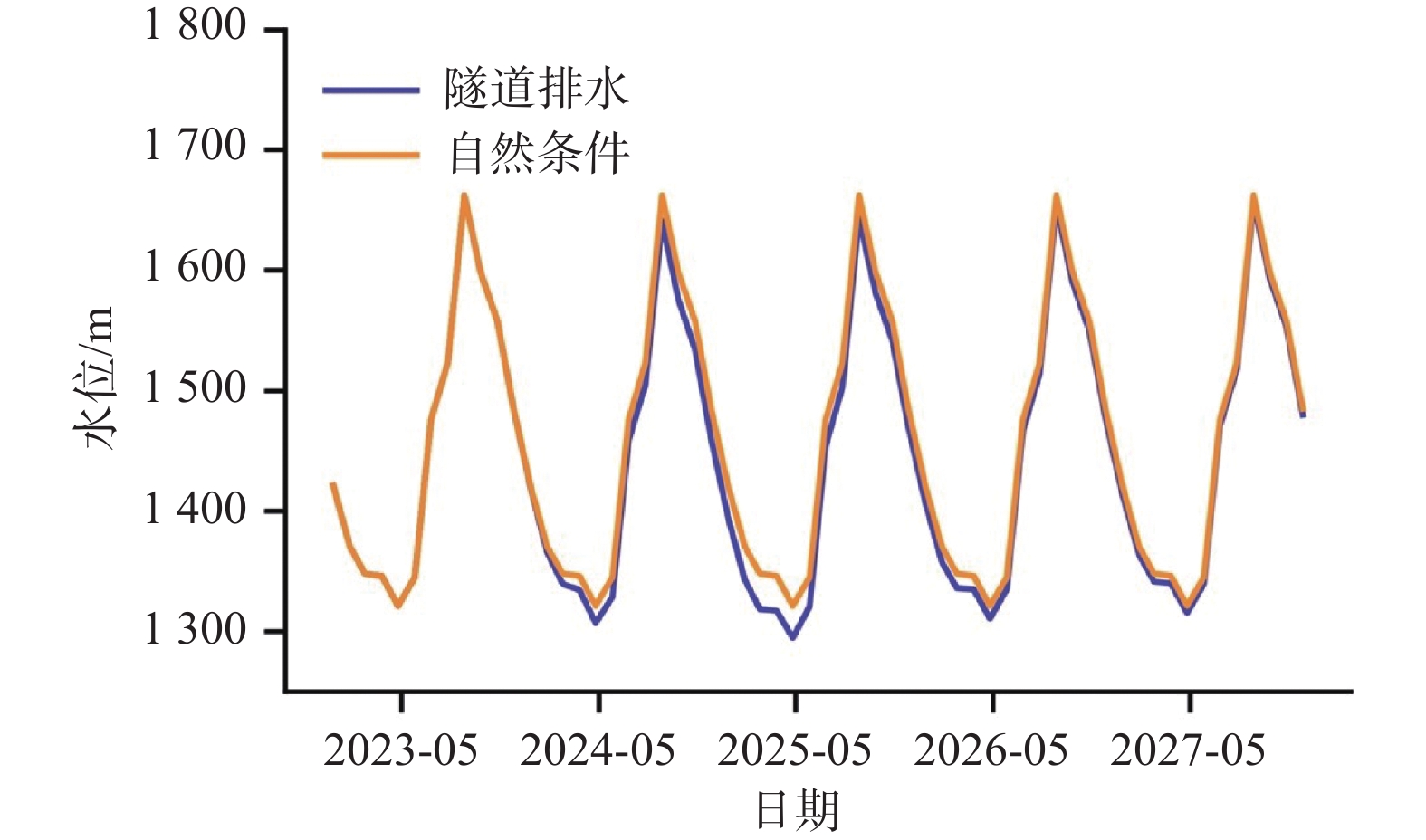

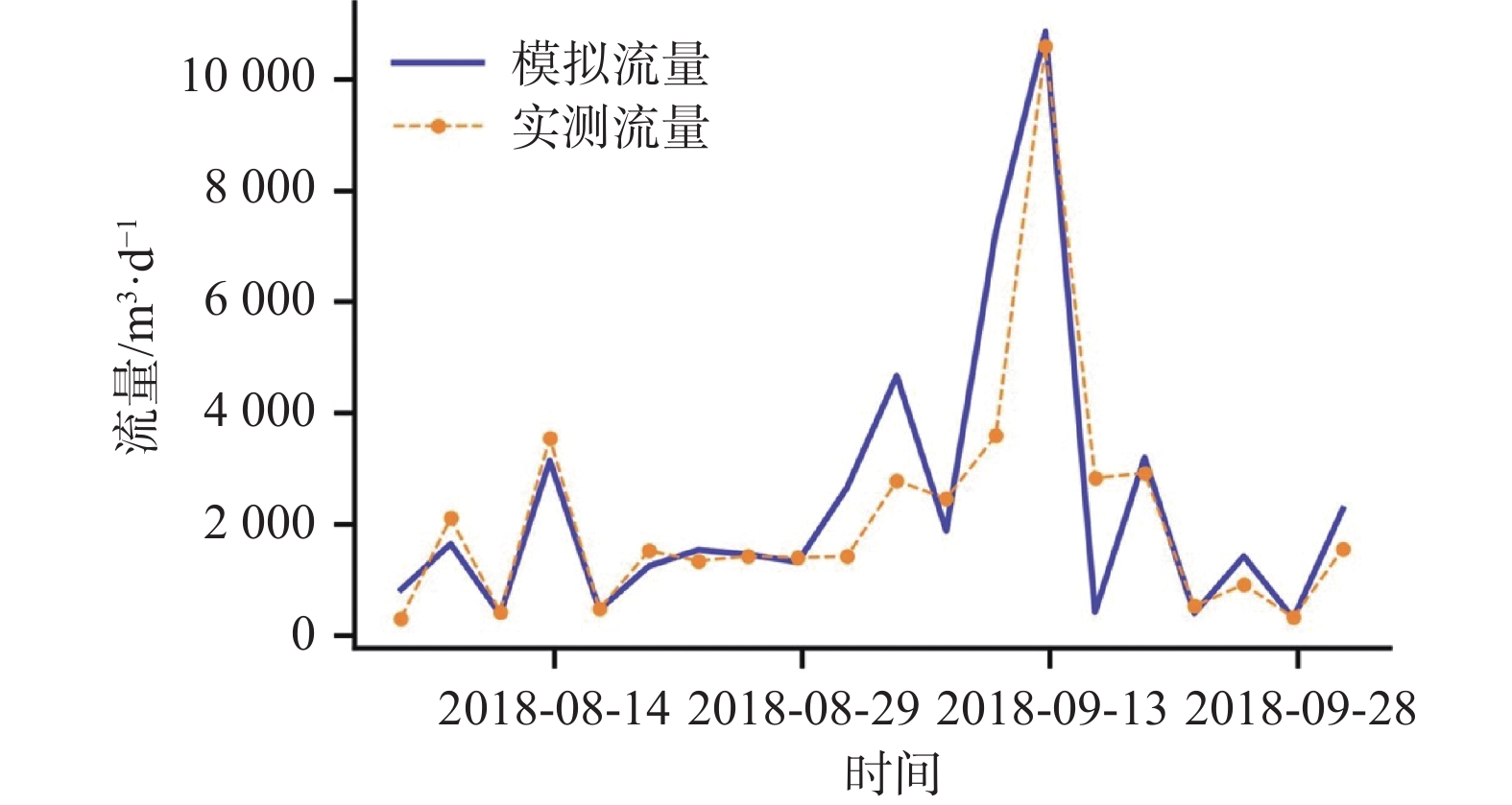

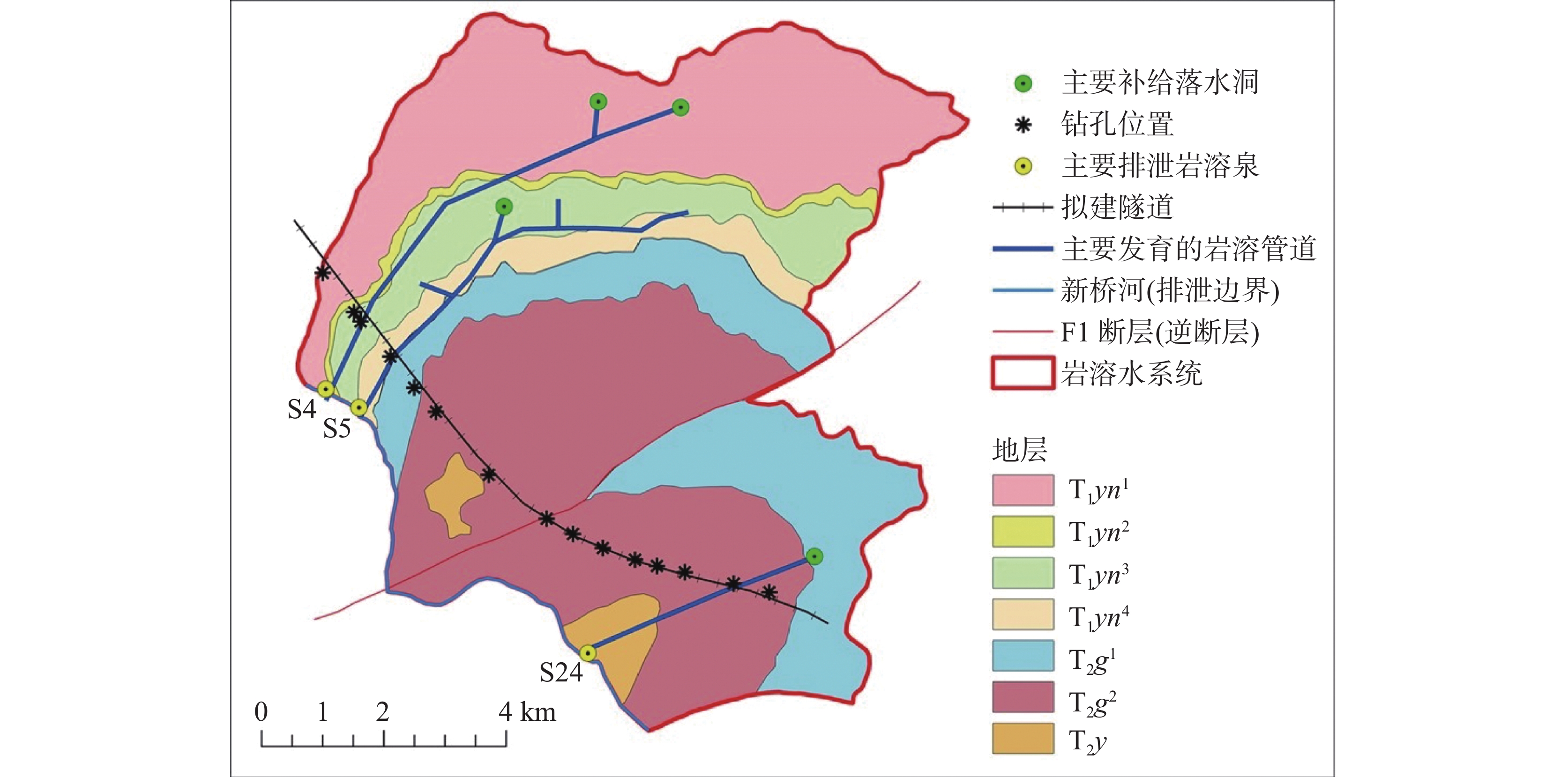

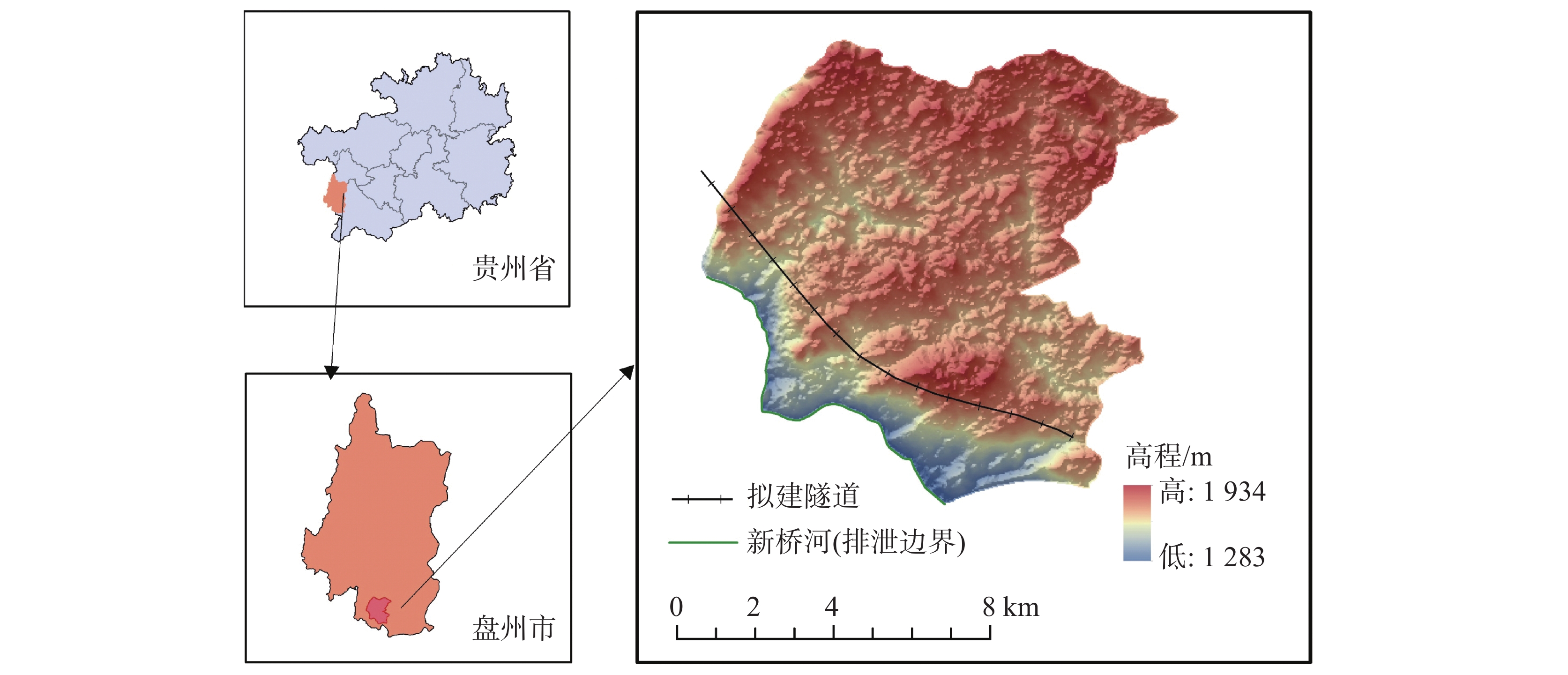

  • Southwest China is a typical karst development area, and the groundwater system is extremely complex, with a high degree of heterogeneity and complexity. The karst geological features in this area usually show a fissure-pore dual-media structure, and this geohydrological feature leads to the obvious nonlinear behavior of groundwater flow patterns. These special geological conditions not only pose significant challenges to the development and utilization of groundwater resources, but also complicate the accurate prediction of groundwater dynamics. In particular, when the tunnel construction is conducted in karst areas, it is easy to affect the groundwater flow field and produce water inrush disasters, which will have a far-reaching impact on the local groundwater resources, ecological environment, and even social and economic activities. Therefore, it is of great practical significance to study and understand the law of groundwater flow in karst areas and to accurately predict the amount of groundwater inflow and flow modes during tunnel construction, so as to ensure the safety of engineering construction, the protection of water resources, and the prevention of groundwater pollution.In this study, the MODFLOW-CFPv2 dual-media coupling model has been adopted. This model integrates two mechanisms-pipeline flow and matrix flow-enabling effective simulation of the complex water flow interaction between the fractured pipeline and the surrounding matrix in karst systems. The introduction of this model enables researchers to more accurately describe the laminar and turbulent flow characteristics in karst groundwater systems, and provides a powerful tool for in-depth understanding and simulation of the dynamics of karst groundwater. By integrating Gempy 3D geological modeling technology, this study further improves the fitting ability of the model to the complex geological structures of karst areas, thereby providing a more realistic depiction of groundwater flow characteristics within the tunnel area. During the simulation, key parameters, including the hydraulic conduction coefficient, recharge coefficient, pipeline size, and friction coefficient, have been calibrated through actual geological and hydrological data to ensure the accuracy and reliability of the model results.The main objective of this study is to quantitatively evaluate the water inflow and its influence on the groundwater flow field during tunnel construction in karst areas through numerical simulation, so as to provide theoretical support for the hydrological management of tunnel construction. In order to ensure the reliability of the simulation results, a large number of field monitoring data were used for model calibration. Specifically, the long-term monitoring data of borehole water level and spring flow were used as calibration objective functions to reflect the hydrological trend before and after tunnel construction. After calibration, the results showed that the Pearson correlation coefficient between the simulated water level and the measured water level is more than 0.98. This indicates that the model can accurately reflect the actual groundwater dynamics and provides a reliable basis for subsequent predictions.Simulation results revealed a significant variation in water inflow during tunnel construction. At the beginning of tunnel excavation, the predicted peak water inflow exceeded 20,000 m3·d-1 due to the drastic changes in the groundwater flow field caused by excavation, indicating a substantially increased risk of water inrush disasters. The simulation also showed that the drainage channel formed after the tunnel excavation caused a rapid drop in groundwater levels, far exceeding natural fluctuations. Even after the completion of the construction, groundwater levels had not returned to pre-excavation levels and remained approximately two meters lower, indicating a lasting impact of tunnel construction on the hydrological system. These findings provide important evidence for the hydrological management during tunnel construction, highlighting the need to consider the long-term effects of such projects on groundwater flow and water levels, especially in karst areas.Furthermore, this study revealed the profound impact of tunnel construction on groundwater flow and spring flow variations. As the tunnel excavation progresses, groundwater is rapidly discharged through karst pipelines, leading to significant changes in regional groundwater flow and spring discharge. The research findings indicate that during tunnel construction, groundwater flow is influenced not only by fissure flow but also interacted with matrix flow, further complicating the groundwater flow patterns. By analyzing the model results, researchers can more accurately identify the extent of the impact of tunnel construction on the groundwater flow field and propose corresponding hydrological management measures.



    • FullText(HTML)
  • loading
    • References(18)
  • [1]
    蒋忠诚, 夏日元, 时坚, 裴建国, 何师意, 梁彬. 西南岩溶地下水资源开发利用效应与潜力分析[J]. 地球学报, 2006, 27(5): 495-502. doi: 10.3321/j.issn:1006-3021.2006.05.012

    JIANG Zhongcheng, XIA Riyuan, SHI Jian, PEI Jianguo, HE Shiyi, LIANG Bin. The application effects and exploitation capacity of karst underground water resources in southwest China[J]. Acta Geoscientica Sinica, 2006, 27(5): 495-502. doi: 10.3321/j.issn:1006-3021.2006.05.012
    [2]
    邬立, 万军伟, 陈刚, 赵璐. 宜万铁路野三关隧道“8·5”突水事故成因分析[J]. 中国岩溶, 2009, 28(2): 212-218. doi: 10.3969/j.issn.1001-4810.2009.02.018

    WU Li, WAN Junwei, CHEN Gang, ZHAO Lu. Cause of the "8·5" water burst incident at Yesanguan tunnel along the Yi-Wan railway[J]. Carsologica Sinica, 2009, 28(2): 212-218. doi: 10.3969/j.issn.1001-4810.2009.02.018
    [3]
    杨亚刚, 张宁. 山区高速公路隧道施工中涌水预测与涌水方案研究[J]. 云南水力发电, 2024, 40(1): 42-45. doi: 10.3969/j.issn.1006-3951.2024.01.010

    YANG Yagang, ZHANG Ning. Research on prediction and scheme of water gushing in the construction of highway tunnels in mountainous areas[J]. Yunnan Water Power, 2024, 40(1): 42-45. doi: 10.3969/j.issn.1006-3951.2024.01.010
    [4]
    Fischer P, Jardani A, Jourde H. Hydraulic tomography in coupled discrete-continuum concept to image hydraulic properties of a fractured and karstified aquifer (Lez aquifer, France) [J]. Advances in Water Resources, 2020, 137: 103523.
    [5]
    Barenblatt G I , Zheltov Iu P , Kochina I N. Basic concepts in the theory of seepage of homogeneous liquids in fissured rocks [strata] [J]. Journal of Applied Mathematics and Mechanics, 1960, 24: 1286-1303.
    [6]
    赵良杰, 夏日元, 杨杨, 邵景力, 易连兴, 王喆. 基于MODFLOW的岩溶管道水流模拟方法探讨与应用[J]. 中国岩溶, 2017, 36(3): 346-351. doi: 10.11932/karst20170308

    ZHAO Liangjie, XIA Riyuan, YANG Yang, SHAO Jingli, YI Lianxing, WANG Zhe. Discussion and application of simulation methods for karst conduit flow based on MODFLOW[J]. Carsologica Sinica, 2017, 36(3): 346-351. doi: 10.11932/karst20170308
    [7]
    党志文, 邵景力, 崔亚莉, 李军, 宫志强, 赵良杰, 梁永升. 基于MODFLOW-CFP的贵州大井流域岩溶地下水数值模拟[J]. 中国岩溶, 2023, 42(2): 266-276. doi: 10.11932/karst2023y002

    DANG Zhiwen, SHAO Jingli, CUI Yali, LI Jun, GONG Zhiqiang, ZHAO Liangjie, LIANG Yongsheng. Numerical simulation of karst groundwater in Dajing basin of Guizhou Province based on MODFLOW-CFP[J]. Carsologica Sinica, 2023, 42(2): 266-276. doi: 10.11932/karst2023y002
    [8]
    杨郑秋, 杨杨, 邵景力, 苏春田, 崔亚莉, 罗飞. 基于MODFLOW-CFP的岩溶水模型降雨非线性入渗补给研究: 以湖南省香花岭地区为例[J]. 中国岩溶, 2019, 38(5): 691-695. doi: 10.11932/karst20190504

    YANG Zhengqiu, YANG Yang, SHAO Jingli, SU Chuntian, CUI Yali, LUO Fei. Study on non-linear rainfall infiltration recharge of numerical karst water model based on MODFLOW-CFP: A case study of Xianghualing area, Hunan Province[J]. Carsologica Sinica, 2019, 38(5): 691-695. doi: 10.11932/karst20190504
    [9]
    谭家华. MODFLOW-CFP软件在岩溶水系统数值模拟应用中的若干关键问题[J]. 中国岩溶, 2023, 42(4): 636-647. doi: 10.11932/karst20230402

    TAN Jiahua. Several key issues in the application of MODFLOW-CFP software to the numerical simulation of karst water systems[J]. Carsologica Sinica, 2023, 42(4): 636-647. doi: 10.11932/karst20230402
    [10]
    Reimann T, Liedl R, Giese M, Geyer T, Maréchal J C , Dörfliger N, Bauer S, Birk S. Addition and enhancement of flow and transport processes to the MODFLOW-2005 conduit flow process [C] // NGWA Ground Water Summit 2013. San Antonio, Texas, USA, April 29, 2013.
    [11]
    Chang Y, Wu J, Jiang G, Liu L, Reimann T, Sauter M. Modelling spring discharge and solute transport in conduits by coupling CFPv2 to an epikarst reservoir for a karst aquifer [J]. Journal of Hydrology, 2019, 569: 587-599.
    [12]
    Karay G, Hajnal G. Modelling of groundwater flow in fractured rocks[J]. Procedia Environmental Sciences, 2015, 25: 142-149.
    [13]
    Kavousi A, Reimann T, Liedl R, Raeisi E. Karst aquifer characterization by inverse application of MODFLOW-2005 CFPv2 discrete-continuum flow and transport model [J]. Journal of Hydrology, 2020, 587: 124922.
    [14]
    肖竞, 万军伟, 成建梅, 李仲夏, 余杭, 李槿鸿, 袁帅. MODFLOW-CFPv2模型在岩溶隧道突涌水及对地下水环境影响中的应用: 以云南鹤庆锰矿沟岩溶水系统为例[J]. 地质科技通报, 2024, 43(3): 301-310.

    XIAO Jing, WAN Junwei, CHENG Jianmei, LI Zhongxia, YU Hang, LI Jinghong, YUAN Shuai. Application of MODFLOW-CFPv2 model in karst tunnel water inrush and its impact on groundwater environment: Example of the Mengkuanggou karst water system in Heqing County, Yunnan Province[J]. Bulletin of Geological Science and Technology, 2024, 43(3): 301-310.
    [15]
    Reimann T, Kavousi A, Giese M, Spiessl S M, Birk S, Liedl R, Sauter M. Enhancement and application of MODFLOW-2005 conduit flow process for flow and transport modeling [C] // MODFLOW and More 2015: Modeling a Complex World. Golden, Colorado, USA, June 1-3, 2015. International Ground Water Modeling Center, 2015.
    [16]
    Haehnel P, Freund H, Greskowiak J, Massmann G. Development of a three-dimensional hydrogeological model for the island of Norderney (Germany) using GemPy [J]. Geoscience Data Journal, 2024, 11: 267-283.
    [17]
    De la Varga M, Schaaf A, Wellmann F. GemPy 1.0: Open-source stochastic geological modeling and inversion [J]. Geoscientific Model Development, 2019, 12: 1-32.
    [18]
    Li Z, Xiao J, Wan J, Cheng J, Feng H, Zhan H, Yuan S, Huang K. A dynamic modeling approach to predict water inflow during tunnel excavation in relatively uniform rock masses [J]. Tunnelling and Underground Space Technology, 2024, 146: 105668.
