自然电场法与高密度电法联作在西江中下游岩溶区找水中的应用

陈贻祥; 黄奇波; 覃小群; 韩凯; 肖琼; 苗迎; 杜成亮; 贺德煌

doi:10.11932/karst20220502

自然电场法与高密度电法联作在西江中下游岩溶区找水中的应用

doi: 10.11932/karst20220502

陈贻祥^{1, 2,},
黄奇波^{1, 2},
覃小群^{1, 2},
韩凯^{1, 2},
肖琼^{1, 2},
苗迎^{1, 2},
杜成亮³,
贺德煌¹

1.
中国地质科学院岩溶地质研究所, 广西桂林 541004
2.
自然资源部、广西岩溶动力学重点实验室, 广西桂林 541004
3.
广西建设职业技术学院, 广西南宁 530007

基金项目: 国家自然科学基金项目（41572232）；中国地质调查局项目（DD20190343）；科技部援外项目(KY201802009)；广西科技计划项目(桂科AD17129047)

详细信息

作者简介:
陈贻祥（1959－），男，教授级高级工程师，主要从事岩溶物探方法的应用研究工作。E-mail：13807737473@163.com

中图分类号: P631.3
计量
- 文章访问数: 1863
- HTML浏览量: 1097
- PDF下载量: 65
- 被引次数: 0
出版历程
- 收稿日期: 2021-12-10
- 刊出日期: 2022-12-02

Application of self-potential and high-density resistivity method to the water exploration in karst terrain of middle-lower reaches of Xijiang River

CHEN Yixiang^{1, 2
,},
HUANG Qibo^{1, 2},
QIN Xiaoqun^{1, 2},
HAN Kai^{1, 2},
XIAO Qiong^{1, 2},
MIAO Ying^{1, 2},
DU Chengliang³,
HE Dehuang¹

1.
Institute of Karst Geology, Chinese Academy of Geological Sciences, Guilin, Guangxi 541004, China
2.
Key Laboratory of Karst Dynamics Laboratory, MNR&GZAR, Guilin, Guangxi 514004, China
3.
Guangxi Polytechnic of Construction, Nanning, Guangxi 530007, China

摘要

摘要: 基于溶洼区浅层岩溶地下水的渗流特性，研究富水岩溶地质结构在地下水渗流作用下引起的自然极化及由此形成的自然电场的分布特征，通过自然电场法与高密度电法联作，利用科研和中国地质调查局地质调查项目中探采结合井位的综合物探结果，探讨以自然电场法为主导、辅以高密度电法等综合物探方法，在西江中下游岩溶石山地区不同水文地质环境中寻找岩溶地下水的成功应用效果与失败的经验教训。研究结果表明，感应类电法（如瞬变电磁法、音频大地电磁测深法、地面核磁共振法、激发极化法、声频大地电场法、甚低频电磁法等）受电网、通信网络等人为电磁场干扰较严重；高密度电法抗人为电磁场干扰的能力较强，信噪比较高，但勘探深度相对较浅，且易受炭泥质灰岩、岩溶矿产等良导电岩矿体的干扰。自然电场法利用岩溶地下水运移引起的富水岩溶地质结构自然极化特征，自然电场异常与动态地下水的补给与运移状态关系较密切，自然电场法与基于探测目的体导电特性的高密度电法联作寻找溶洼区浅层地下水可起到方法互补、相互印证、提高探测分辨率与精度的作用。
- 自然电场法 /
- 高密度电法 /
- 岩溶洼地 /
- 浅层岩溶水 /
- 西江中下游
Abstract: Based on hydrodynamic conditions of the shallow karst groundwater seepage, we mainly study the natural polarization phenomenon of geological structures in water-enriched karst induced by the action of groundwater seepage and distribution characteristics of the natural electric field therefrom. By comprehensive prospecting with the combination of self-potential method and high-density electronic resistivity method, we analyse and evaluate the application effect of the combination on the exploration of karst groundwater in different hydrogeological environments of middle and lower reaches of Xijiang River. In this study, we also integrate geophysical prospecting results with the data derived from exploration & production wells in the survey project of hydrogeological environment initiated and supported by China Geological Survey. Study results show that induced electrical methods, such as transient electromagnetic method, audio magnetotelluric sounding method, ground nuclear magnetic resonance method, induced polarization method, sonic frequency geoelectric field method, VLF electromagnetic method, etc., are seriously affected by electromagnetic fields like power transmission and communication network. The high-density resistivity method shows a strong anti-interference ability and high signal-to-noise ratio. But its exploration depth is relatively shallow, and it is easily disturbed by ore bodies with high conductivity such as charry limestones or karst minerals. The self-potential method is used in the situation of polarization of geological structures in water-enriched karst caused by groundwater migration. Anomalies of the natural electric field are closely related to the groundwater recharge and migration. The complementation of self-potential method and high-density electronic resistivity method in groundwater exploration can contribute to the mutual corroboration of prospecting results, hence improving prospecting resolution and precision.
- self-potential method /
- high-density resistivity method /
- karst depression /
- shallow karst water /
- middle-lower reachers of Xijiang River

HTML

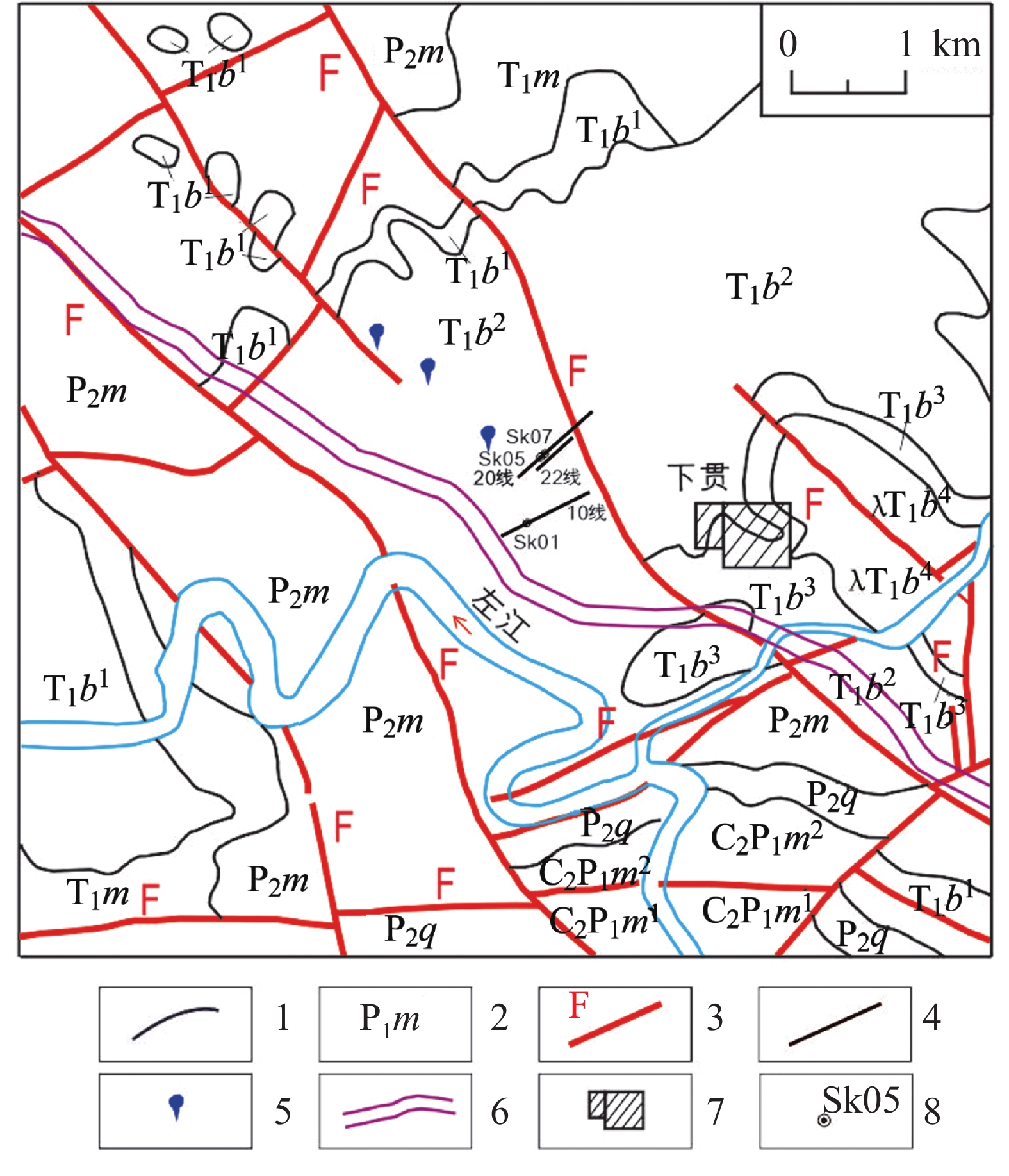

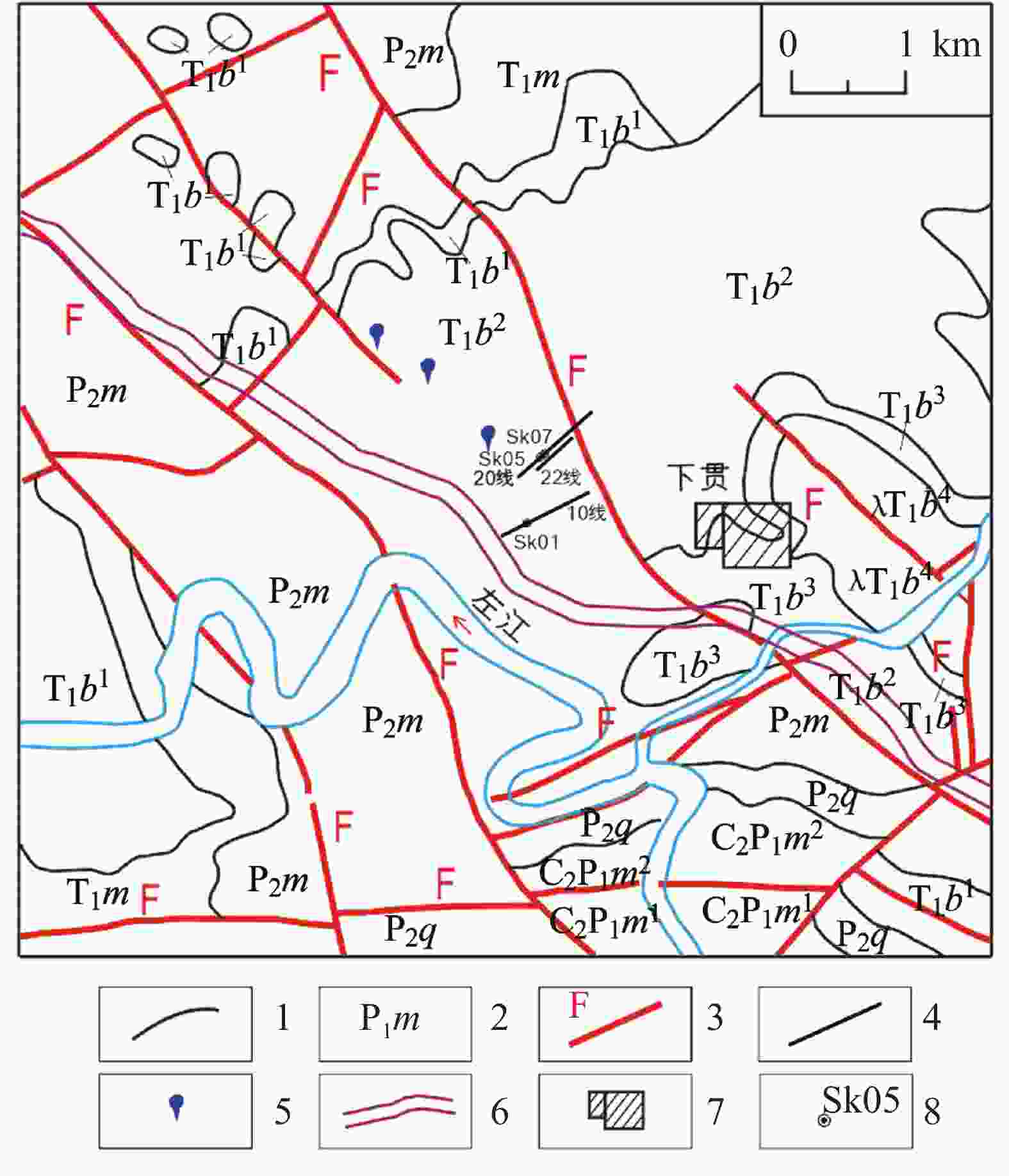

图 1 下贯屯测区水文地质及物探测线布置简图

1. 地层界线 2. 地层代号 3. 断层 4. 物探测线 5. 地下水消溢天窗 6. 公路 7. 农庄 8. 钻孔及编号

Figure 1. Hydrogeological sketch and geophysical layout in Xiaguang village

下载: 全尺寸图片幻灯片

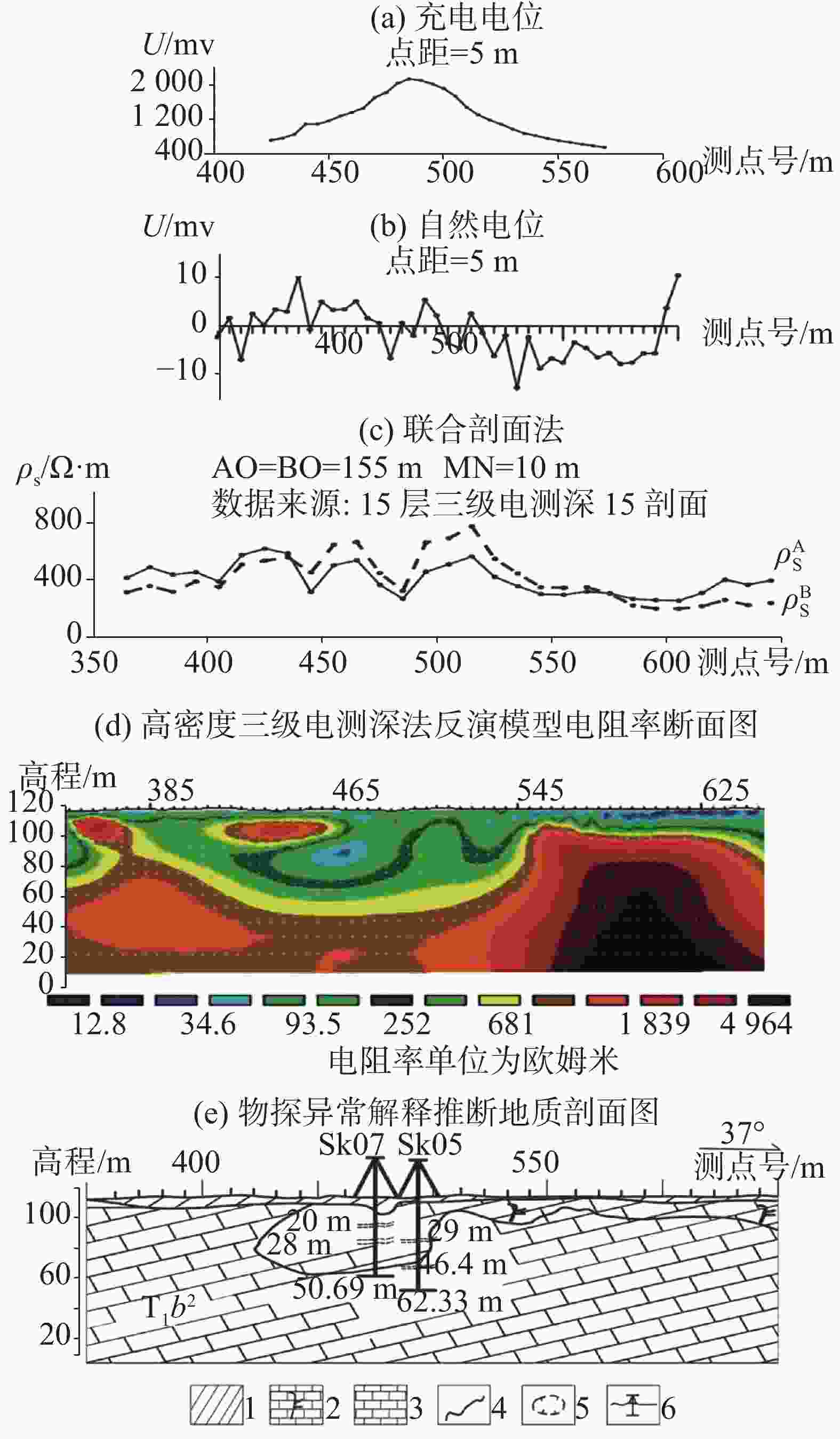

图 2 下贯屯测区第20测线物探地质断面图

1. 黏土 2. 溶蚀裂隙灰岩 3. 较完整灰岩 4. 地层界线 5. 岩溶发育异常区 6. 钻孔

Figure 2. Geophysical interpretation profile on line 20 in Xiaguang village

下载: 全尺寸图片幻灯片

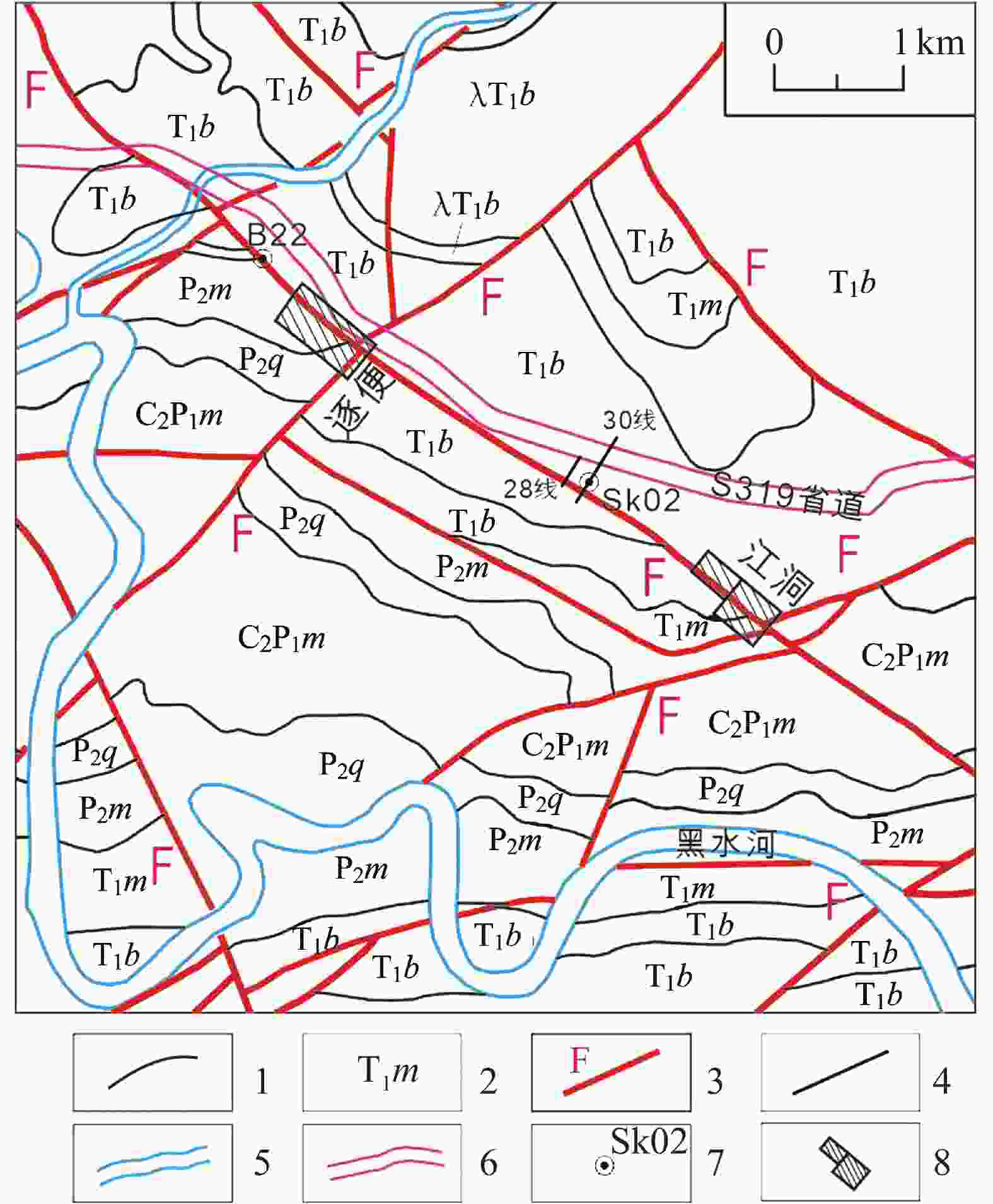

图 3 江洞屯测区水文地质及物探测线布置简图

1. 地层界线 2. 地层代号 3. 断层 4. 物探测线 5. 河流 6. S319省道 7. 等高线 8. 农庄

Figure 3. Hydrogeological sketch and geophysical layout in Jiangdong village

下载: 全尺寸图片幻灯片

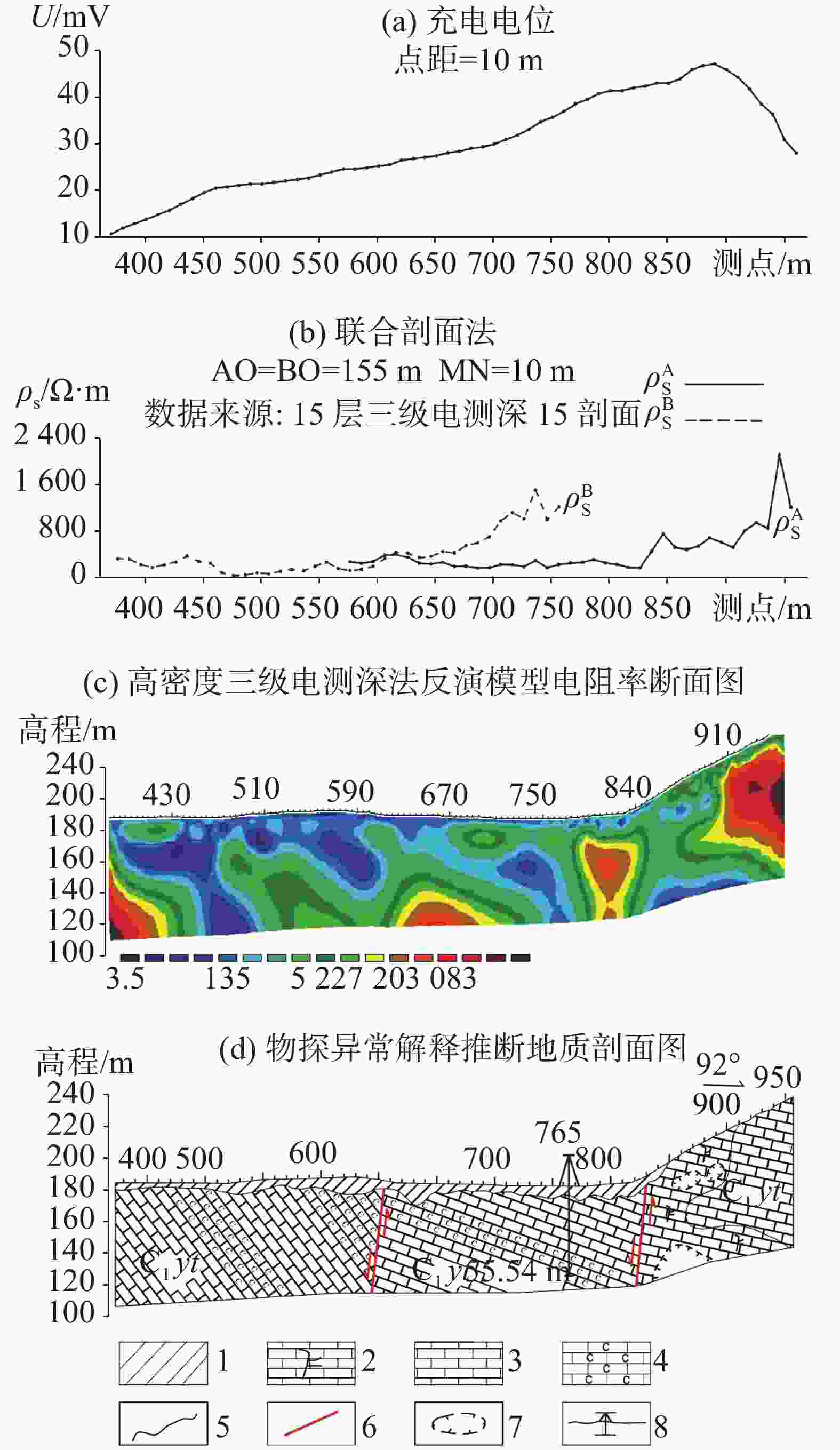

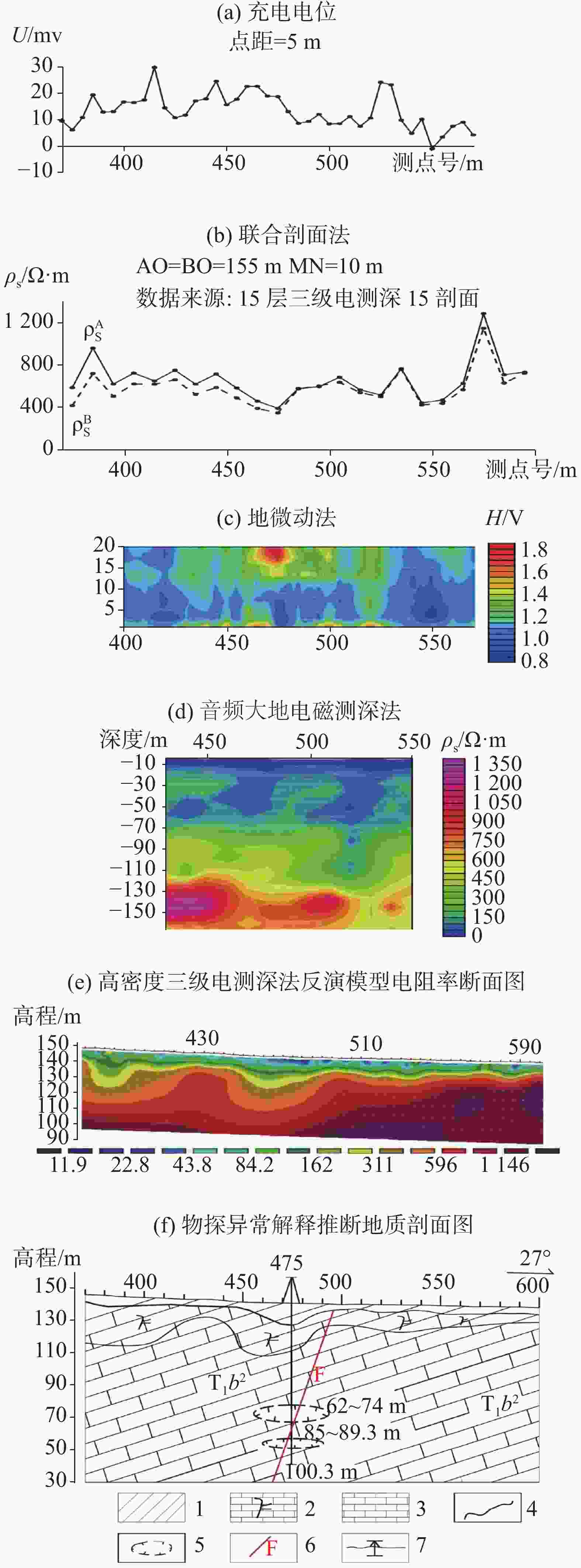

图 4 江洞屯测区第30测线物探地质断面图

1. 土层 2. 溶隙灰岩 3. 较完整灰岩 4. 地层界线 5. 岩溶发育异常区 6. 断层 7. 验证钻孔

Figure 4. Geophysical interpretation profile on line 30 in Jiangdong village

下载: 全尺寸图片幻灯片

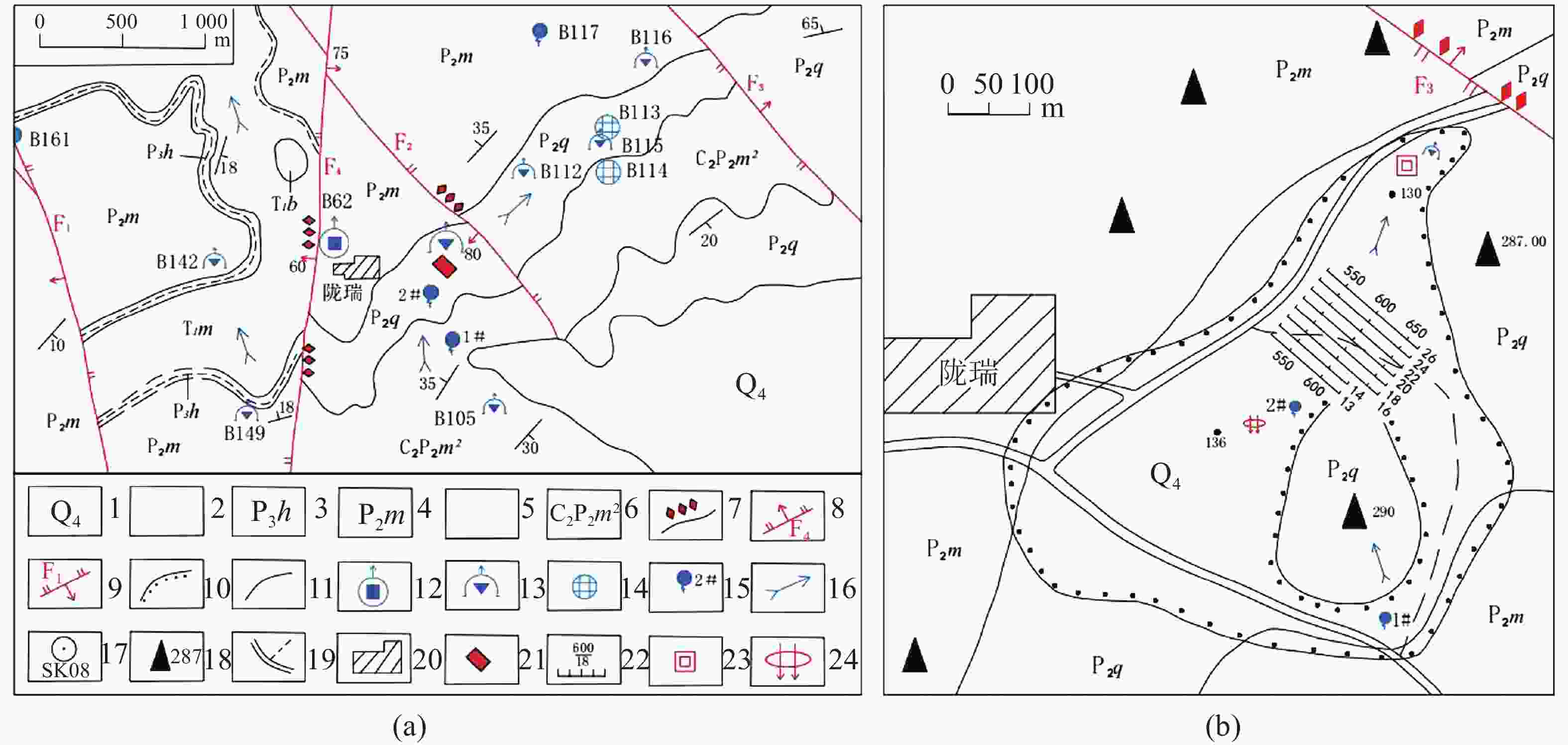

图 5 陇瑞洼地区域地质及物探测线布置简图

1. 第四系土层 2. 三叠系马脚岭组微晶灰岩 3. 二叠系合山组铁质灰岩 4. 二叠系茅口组砂屑灰岩 5. 二叠系栖霞组微晶灰岩 6. 二叠系马平组第二段灰岩夹白云岩 7. 方解石化 8. 正断层及编号 9. 逆断层及编号 10. 土岩分界线 11. 地质界线 12. 民井 13. 落水洞 14. 地下河天窗 15.下降泉及编号 16. 地下水流向17. 水文地质钻孔及编号 18. 山峰 19. 乡道及机耕路 20. 村庄 21. 测区 22. 物探测线点/线 23. 自电日变观测点 24. 充电点

Figure 5. Regional geological sketch (a) and geophysicallayout(b)in Longrui valley

下载: 全尺寸图片幻灯片

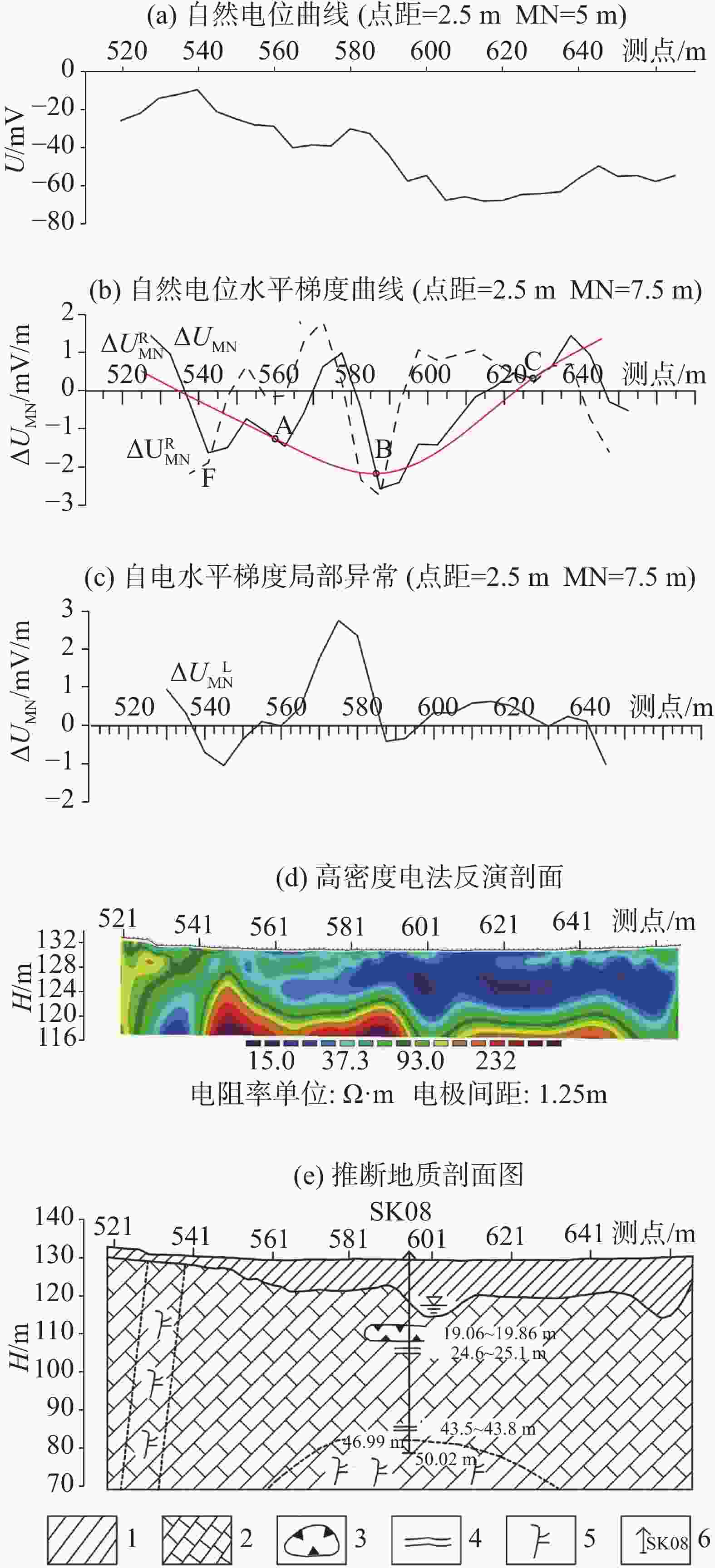

图 6 陇瑞屯测区第18测线物探地质断面图

1. 土层 2. 较完整灰岩 3. 溶洞 4. 溶隙 5. 溶隙灰岩 6. 验证钻孔位置及孔号

Figure 6. Geophysical interpretation profile on line 18 in Longrui village

下载: 全尺寸图片幻灯片

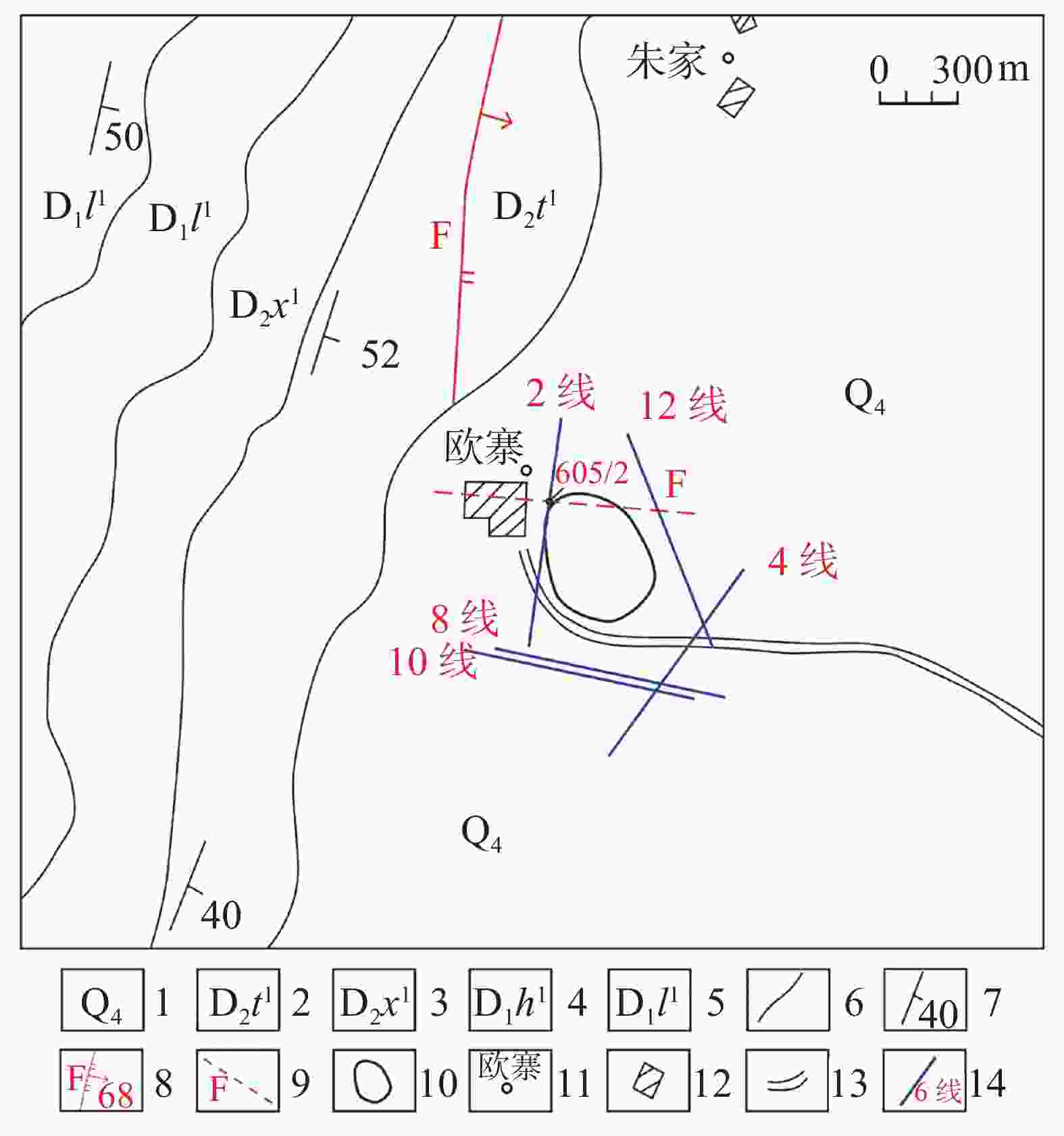

图 7 欧寨屯测区水文地质简图

1.第四系 2.泥盆系中统唐家湾组下段 3.泥盆系中统信都组上段 4.泥盆系中统贺县组 5.泥盆系中统莲花山组下段 6.地质界线 7.地层产状 8.正断层 9.推断断层 10.石灰岩孤峰 11.村屯位置及村名 12. 建筑物 13.乡村道路 14.物探测线及编号

Figure 7. Regional geological sketch in Ouzhai village

下载: 全尺寸图片幻灯片

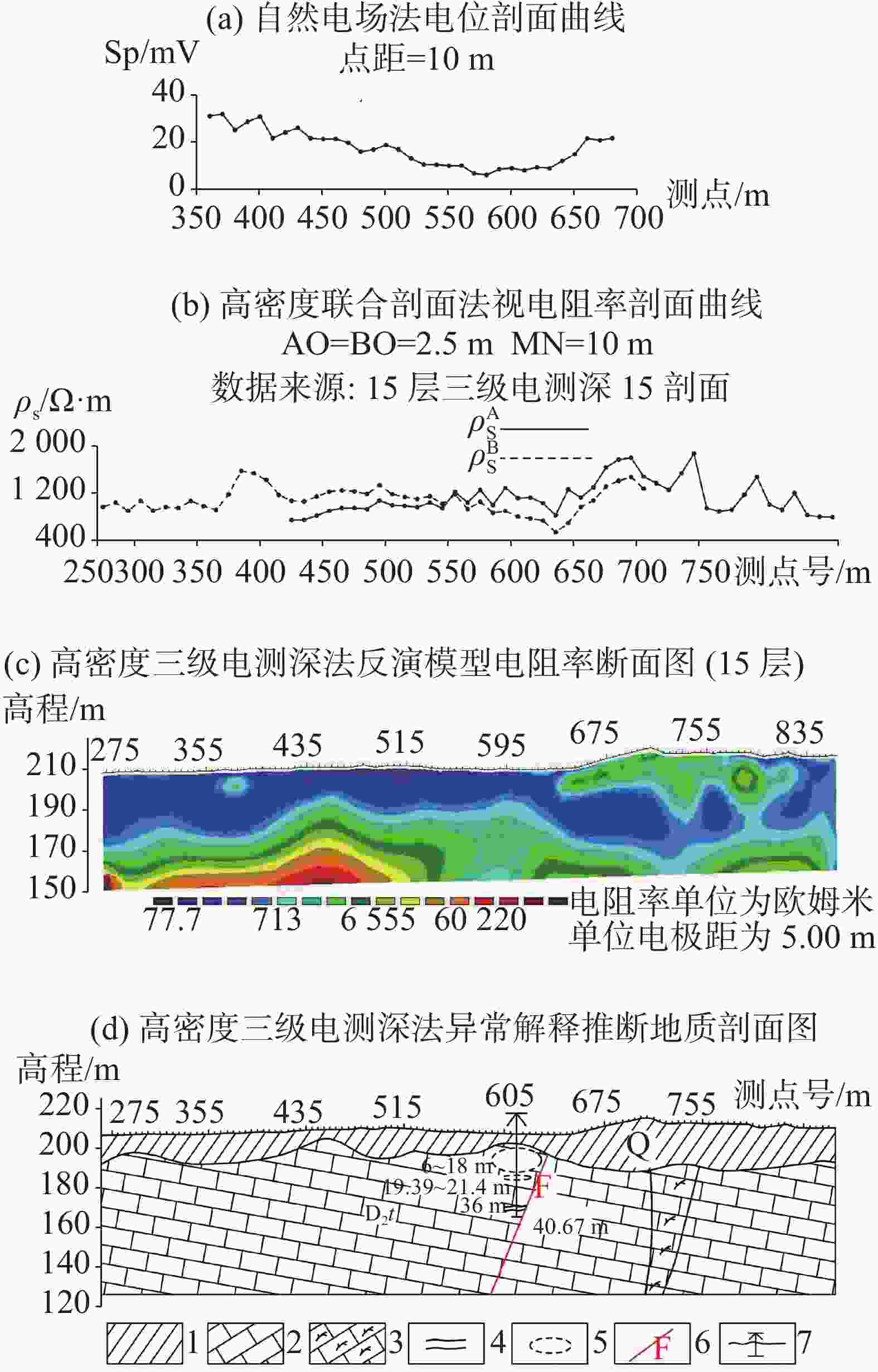

图 8 欧寨屯测区第2测线物探地质断面图

1.黏土 2.较完整灰岩 3.溶蚀裂隙灰岩 4.裂隙 5.溶洞 6.断层 7.建议钻孔

Figure 8. Geophysical interpretation profile on line 2 in Ouzhai village

下载: 全尺寸图片幻灯片

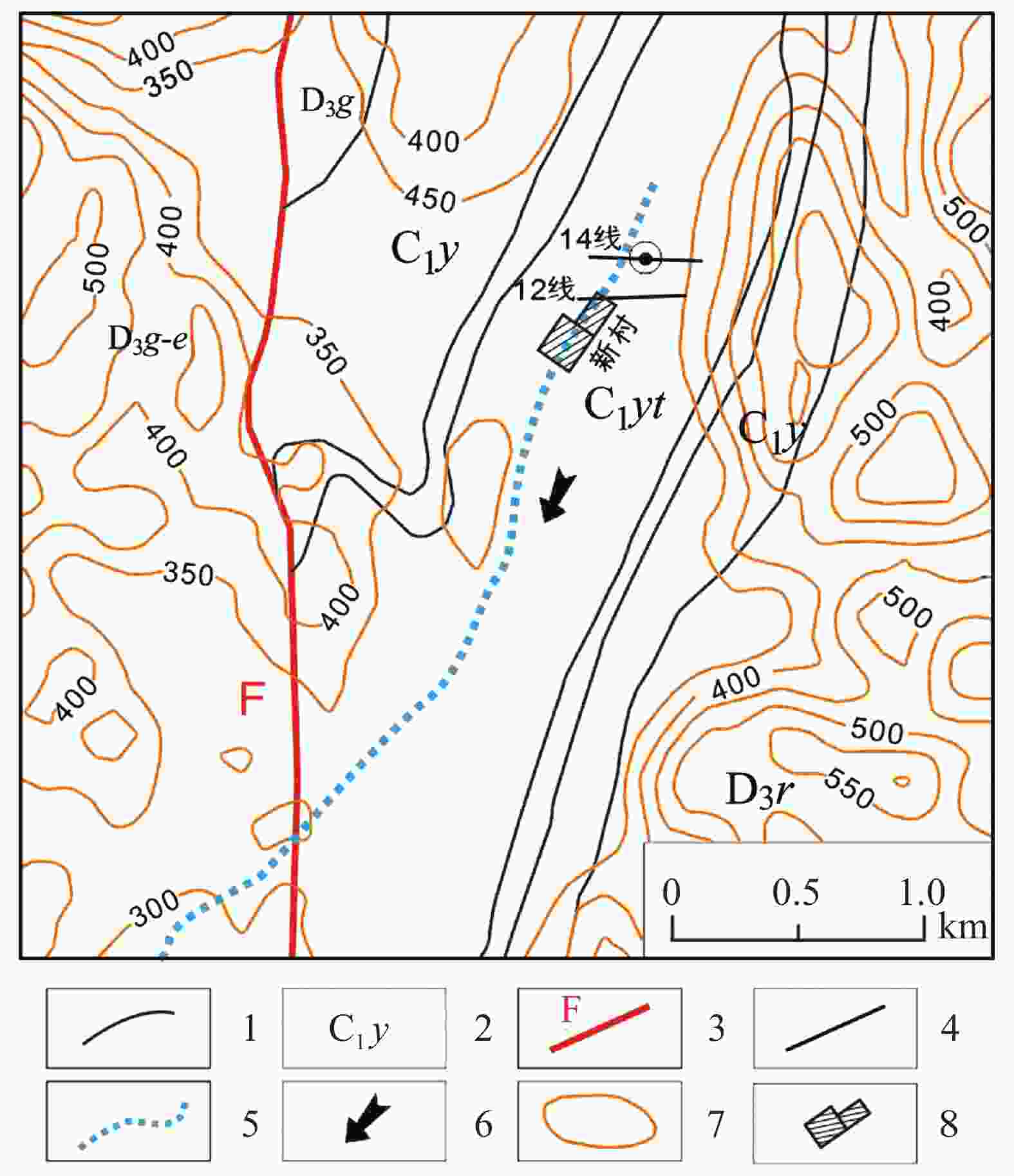

图 9 新村屯测区水文地质物探测线布置简图

1.地层界线 2.地层代号 3.断层 4.物探测线 5.地下河 6.地下水流向 7.等高线 8.农庄

Figure 9. Hydrogeological sketch and Geophysical layout in Xincun village

下载: 全尺寸图片幻灯片

图 10 新村屯测区第14测线物探地质断面图

1.土层 2.溶隙灰岩 3.较完整灰岩 4.炭质灰岩 5. 地层界线 6.推测断层 7.岩溶发育异常区 8.验证钻孔

Figure 10. Geophysical interpretation profile on line 14 in Xincun village

下载: 全尺寸图片幻灯片

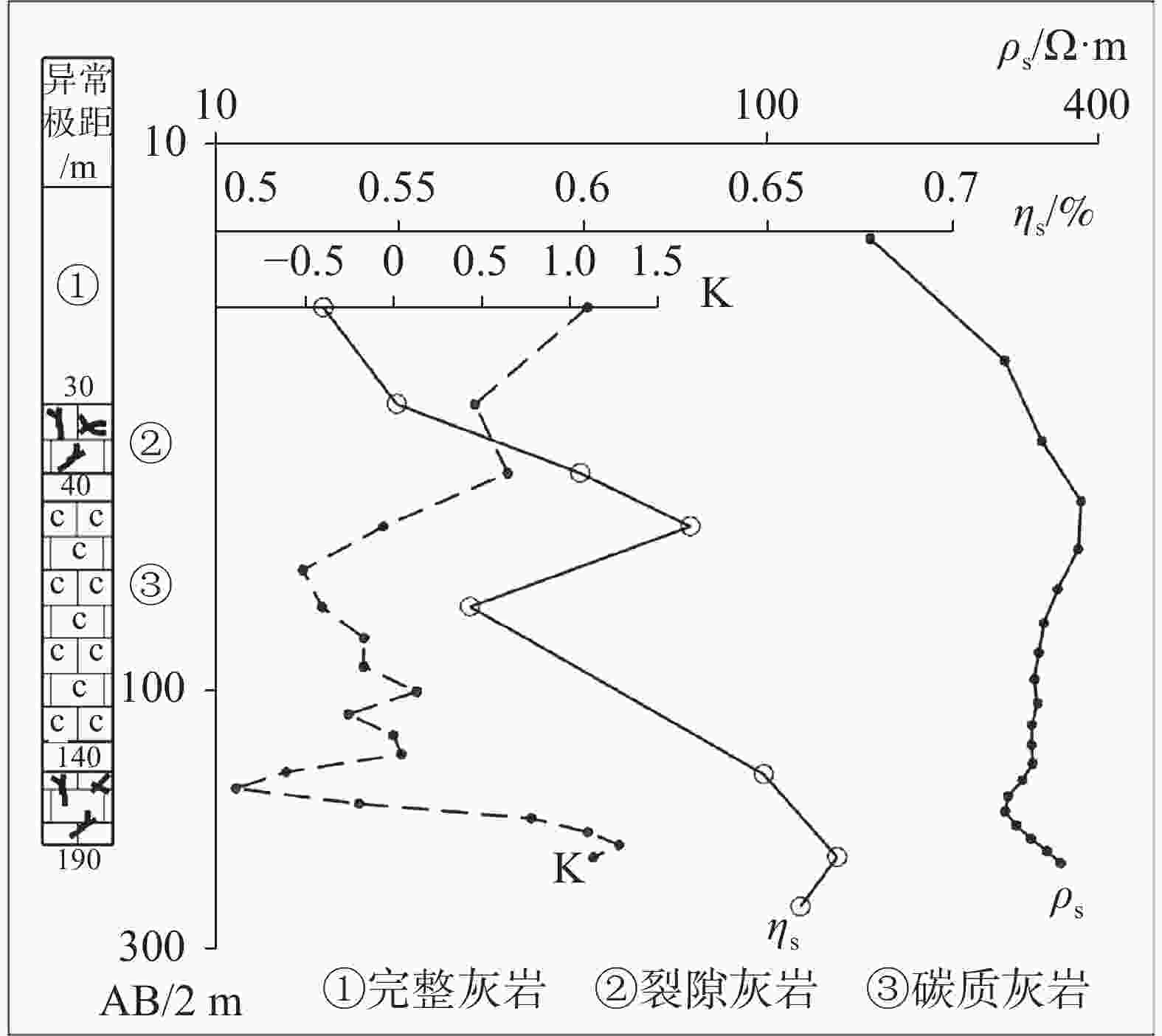

图 11 新村屯测区第14测线ZK3钻孔旁电测深曲线解释成果图

1.覆盖土层 2.裂隙灰岩 3.碳质灰岩

Figure 11. Interpretation results of the electric sounding curve near the borehole ZK3 on line 14 in Xincun village

下载: 全尺寸图片幻灯片

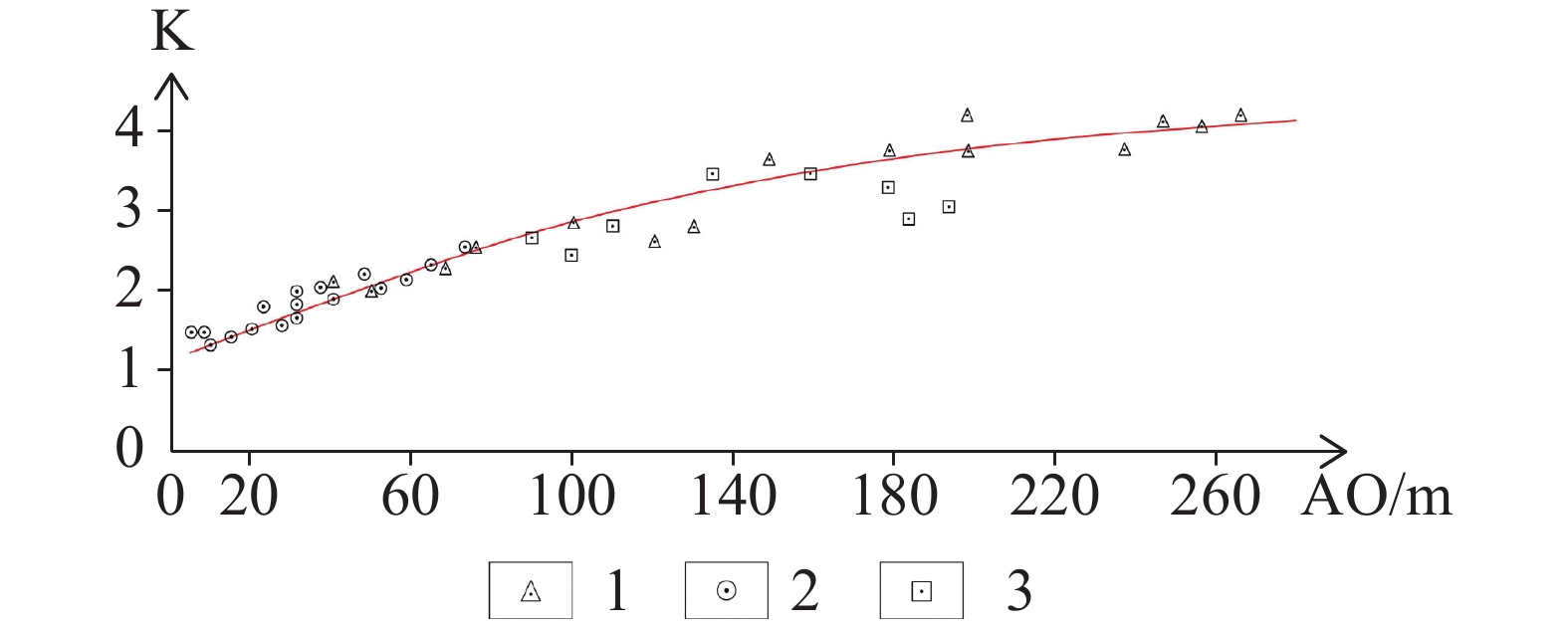

图 12 岩溶区高密度电测深法勘探深度H与供电极距AO关系统计曲线

1.广西测区数据点 2.湘西测区数据点 3.贵州测区数据点

Figure 12. The statistical relationship between exploration depth(H) and electrode spacing(AO) of electrical resistivity tomography in karst terrain

下载: 全尺寸图片幻灯片
