典型岩溶湖泊湿地流域景观格局动态变化及趋势预测

闻国静; 王妍; 刘云根; 侯磊

doi:10.11932/karst2021y41

典型岩溶湖泊湿地流域景观格局动态变化及趋势预测

doi: 10.11932/karst2021y41

闻国静^{1, 2, 3,},
王妍^{1, 2, ,},
刘云根^{1, 2},
侯磊^{1, 2}

1.
西南林业大学生态与环境学院，云南昆明 650224
2.
云南省山地农村生态环境演变与污染治理重点实验室，云南昆明 650224
3.
中国科学院西双版纳热带植物园，云南勐腊 666303

基金项目: 国家自然科学基金项目（3156023，51469030，31760245）

详细信息

作者简介:
闻国静（1992－），女，硕士研究生，主要从事湿地生态修复的研究工作。E-mail：wenguojing920@126.com

通讯作者:
王妍（1980－），女，副教授，主要从事生态修复及景观生态的研究工作。E-mail：wycaf@126.com

中图分类号: P901；X171.1
计量
- 文章访问数: 2289
- HTML浏览量: 1633
- PDF下载量: 51
- 被引次数: 0
出版历程
- 收稿日期: 2020-08-10
- 刊出日期: 2022-07-28

Change and its prediction of landscape patterns in the watershed of typical karst lake wetland

WEN Guojing^{1, 2, 3
,},
WANG Yan^{1, 2
, ,},
LIU Yungen^{1, 2},
HOU Lei^{1, 2}

1.
College of Ecology and Environment, Southwest Forestry University, Kunming, Yunnan 650224, China
2.
Key Laboratory of Ecological Environment Evolution and Pollution Control in Mountainous and Rural Areas of Yunnan Province, Kunming, Yunnan 650224, China
3.
Xishuangbanna Tropical Botanical Garden, Chinese Academy of Sciences, Mengla, Yunnan 666303, China

摘要

摘要: 岩溶湖泊湿地流域作为景观格局变化的热点研究区域，探讨景观格局动态变化及预测趋势，为岩溶流域生态安全研究提供科学依据。应用遥感与地理信息系统技术，结合普者黑岩溶湖泊湿地流域实际情况，分别对该地区1990、1995、2000、2005、2010、2015 年6 期遥感影像进行分类、解译，系统地获取地区景观格局状况，分析动态变化特征，并运用CA-Markov 模型对未来湿地景观格局进行模拟预测。结果表明：1990−2015年普者黑岩溶湿地流域景观格局随时间变化显著，景观破碎化程度总体呈现增加趋势，斑块数（NP）从861增加到889，景观类型的优势斑块面积在逐渐增加，而多样性指数从1.064下降到0.966；2020−2030年普者黑岩溶湿地流域建筑用地、农地和湿地景观类型面积在增加，农地和林地在减少，其中，较为突出的是建筑用地占有率由2.79%上升到2.97%，农地占有率60.12%增加到60.74%，湿地占有率6.67%上升7.02%，而林地占有率由26.70%下降到26.40%。景观格局进行预测可以发现湿地面积、建筑用地面积和农地变化幅度最大，本文相关研究和预测结果可为普者黑流域生态保护提供一定的建议和参考。
- CA-Markov模型 /
- 岩溶湖泊湿地 /
- 景观格局 /
- 模拟与预测
Abstract: As a research focus of landscape pattern change, the change and its prediction of landscape patterns in the watershed of karst lake is explored with the purpose of providing a scientific basis for the ecological safety in karst watershed in this study. The data of remote sensing image in the watershed of Puzhehei karst lake was collected in 1990, 1995, 2000, 2005, 2010, and 2015 respectively. With the remote sensing and geographic information system, those images were classified and interpreted based on the actual situation of this area. In addition, landscape patterns and the dynamic characteristics were analyzed and the pattern of future wetland landscape was simulated and predicted with CA-Markov model. Results show that landscape patterns of the watershed of Puzhehei karst wetland changed significantly from 1990 to 2015, during which construction land and agricultural land continued to increase, but woodland, wetland and unused land continued to decrease. The number of blocks (NP) rose from 861 to 889. Generally speaking, agricultural land is increasing year by year, but the growth rate is slow and the wetland landscape area is decreasing. Besides, from 1990 to 2015 the degree of landscape fragmentation in the Puzhehei watershed was generally augmented,and the number of landscape patches, patch density and number index of maximum patches also increased. The number of patches reached a maximum of 936, and the patch density index increased from 2.596 in 1990 to 2.822 in 2000, and then decreased to 2.689 in 2015. The number of maximum patches increased from 58.345 in 1990 to 62.036 in 2015, which means that the impact of human activities on the landscape pattern in the Puzhehei watershed made the landscape structure more complex and the fragmented. Finally, the dominant patch area of landscape types gradually increased from 1990 to 2015. The diversity index decreased from 1.064 to 0.966, and the edge density increased from 47.552 to 48.063. But the landscape shape index decreased from 30.175 to 29.625. Due to the continuous reduction of forest land and wetland in 2000, the landscape shape index increased and both the edge density and landscape shape index peaked at 49.987 and 31.012 respectively, which made the landscape structure complex. In the next 20 years, the landscape type change in Puzhehei watershed will generally show an increase in construction land, agricultural land and wetland, but a decrease in forest land, garden land and unused land. This trend can be reflected from the previous data: construction land increased from 2.79% to 2.97%, agricultural land from 60.12% to 60.74%, wetlands from 6.67% to 7.02%, but of forest land dropped from 26.70% to 26.40%. Accordingly, the land use pattern of Puzhehei watershed will change significantly. By 2030, the existing construction land will be expanded mainly around the scenic area of sinkholes as well as new in the villages and new towns around the National Wetland Park. Constrcution land will spread to the surrounding areas along with the main traffic roads. It is predicted that wetland, construction land and agricultural land will experience the largest change. The research findings can provide suggestions and reference for the ecological protection of the watershed Puzhehei karst lake.
- CA-Markov model /
- wetland of karst lake /
- landscape pattern /
- simulation and prediction

HTML

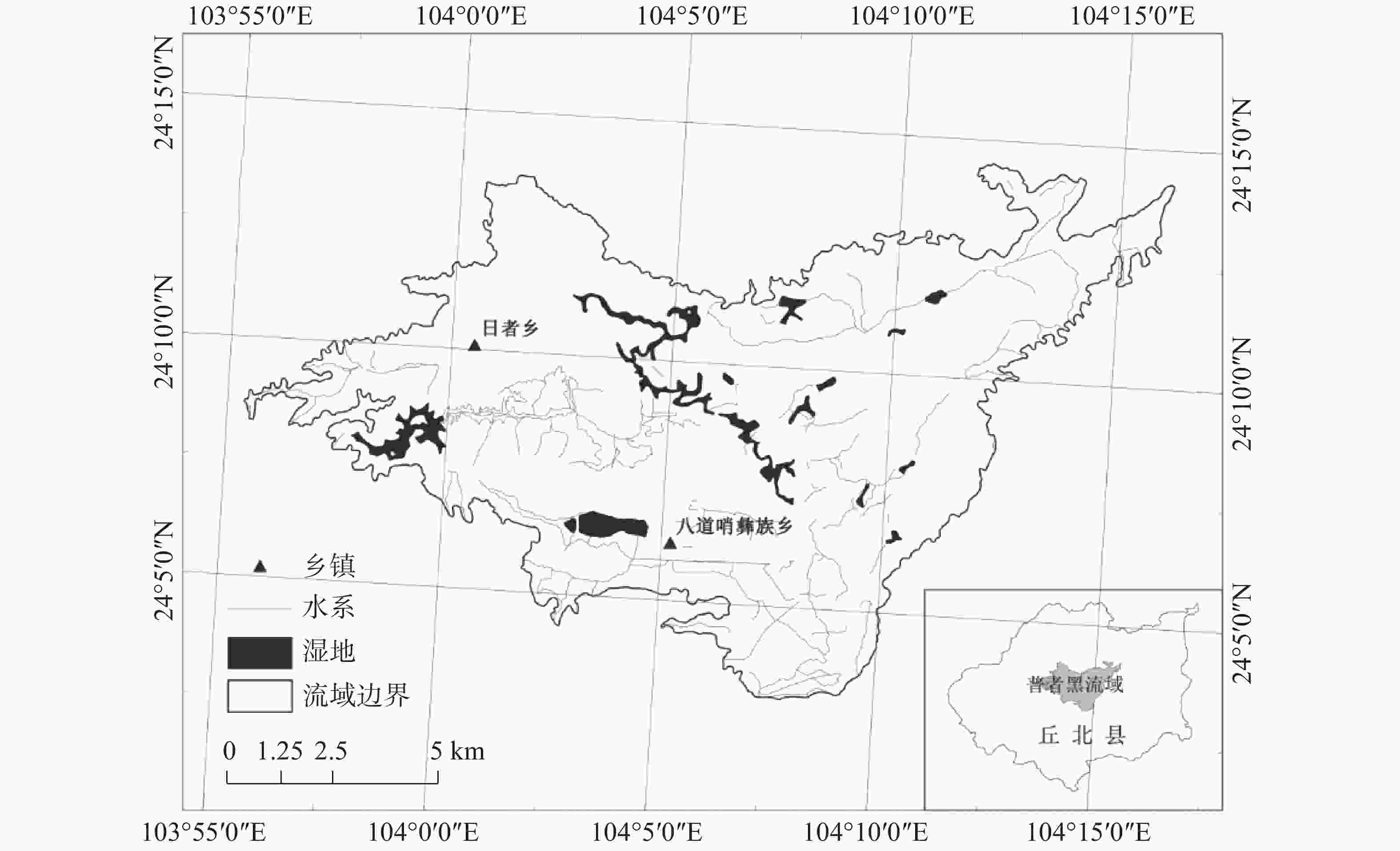

图 1 研究区地理位置图

Figure 1. Location of the study area

下载: 全尺寸图片幻灯片

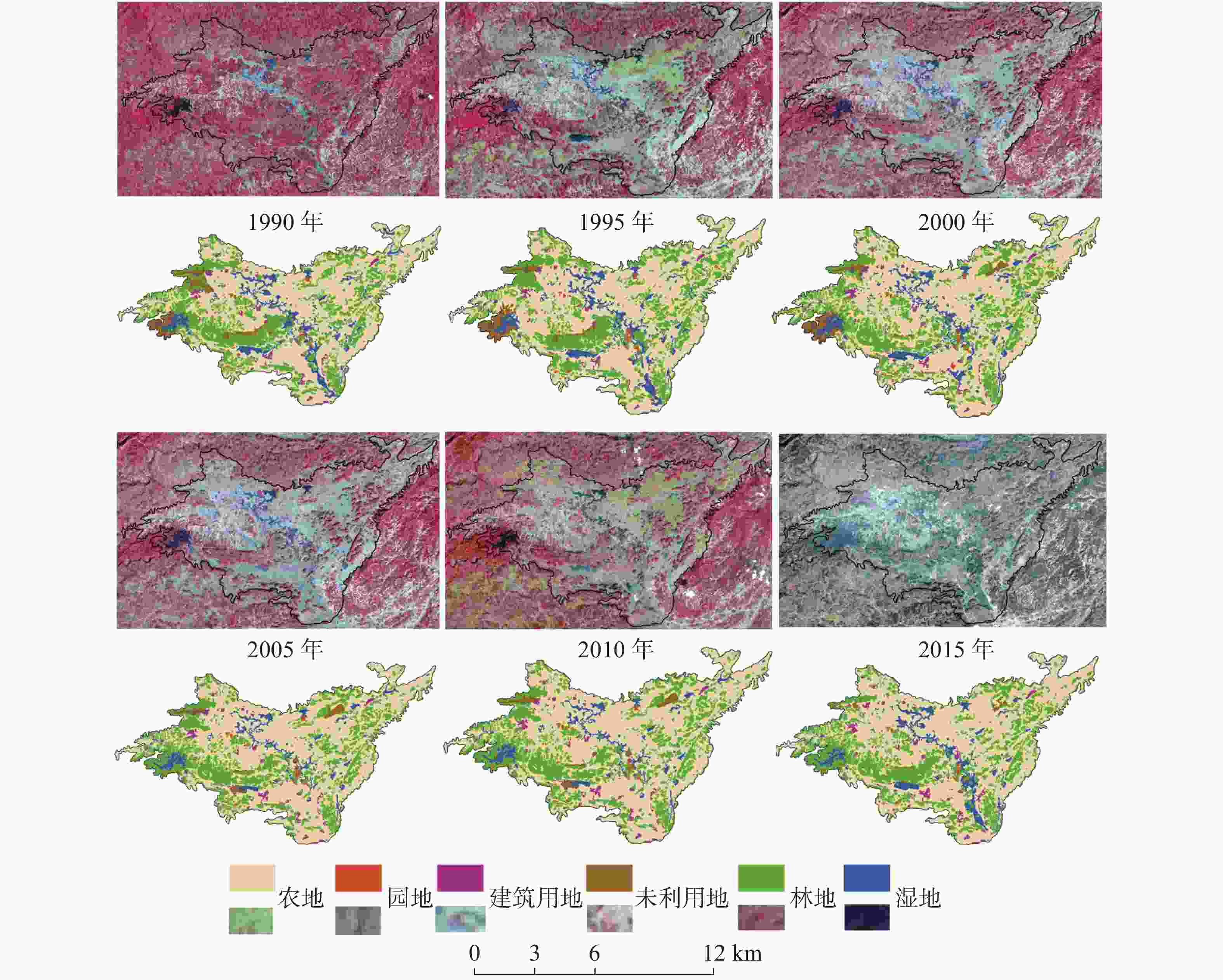

图 2 1990−2015年普者黑流域土地利用动态变化及对应假彩色合成影像

Figure 2. Dynamic change of land use and synthetic image of corresponding false color in Puzhehei watershed from 1990 to 2015

下载: 全尺寸图片幻灯片

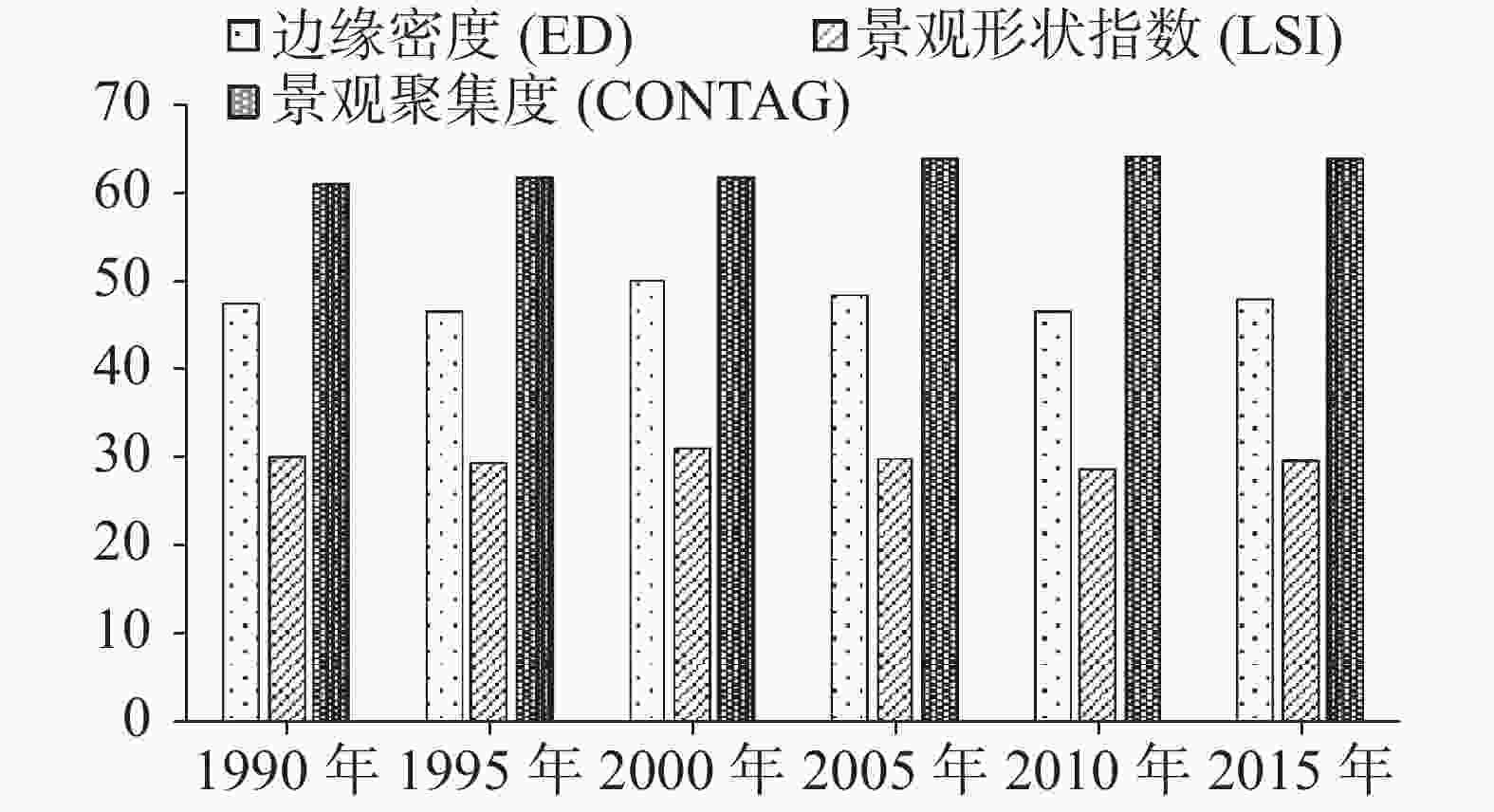

图 3 普者黑岩溶湖泊湿地流域景观形状指数特征

Figure 3. Shape index of the Puzhehei karst wetland landscape

下载: 全尺寸图片幻灯片

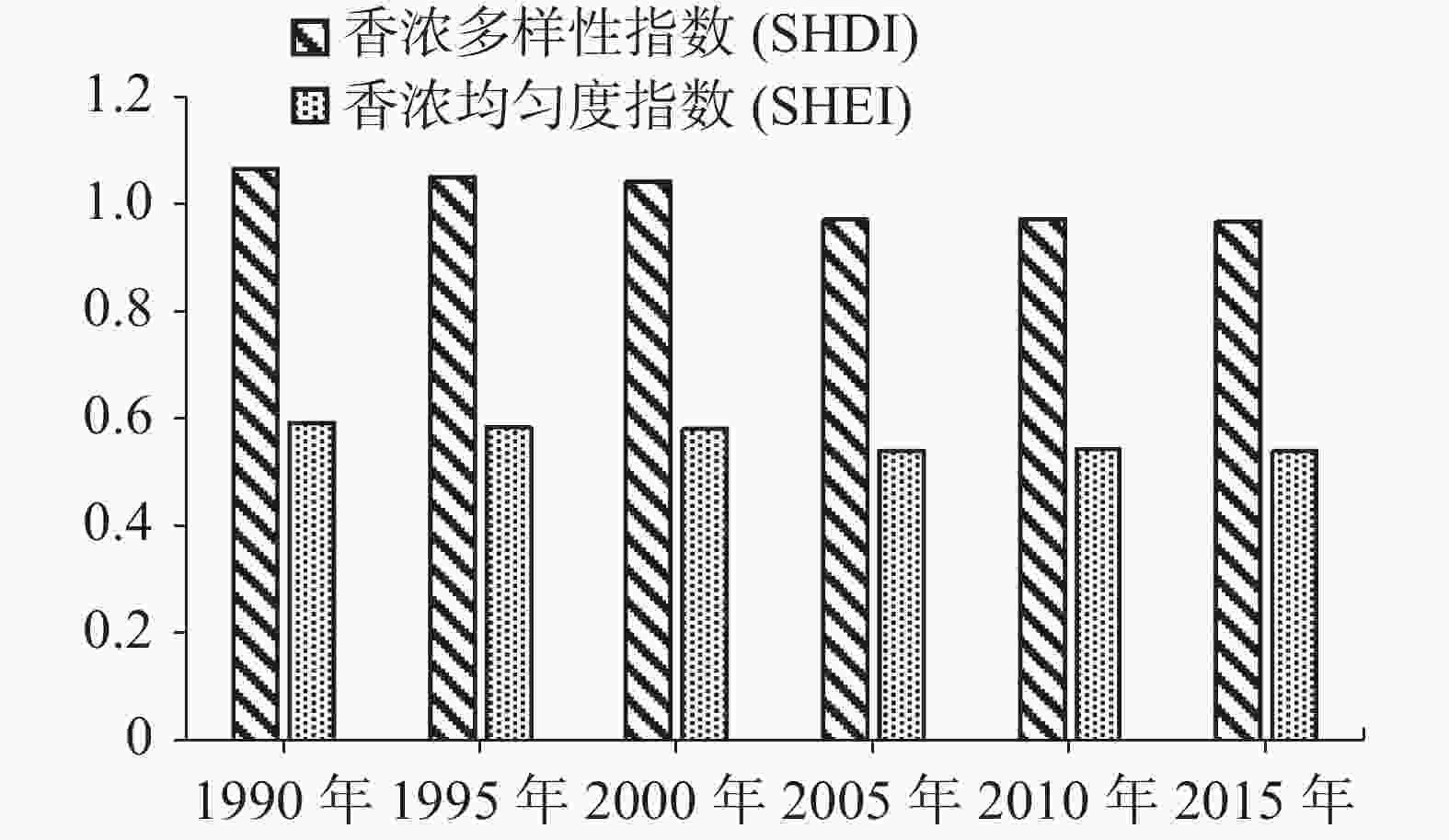

图 4 普者黑岩溶湖泊湿地流域景观多样性指数特征

Figure 4. Diversity index of the Puzhehei karst wetland landscape

下载: 全尺寸图片幻灯片

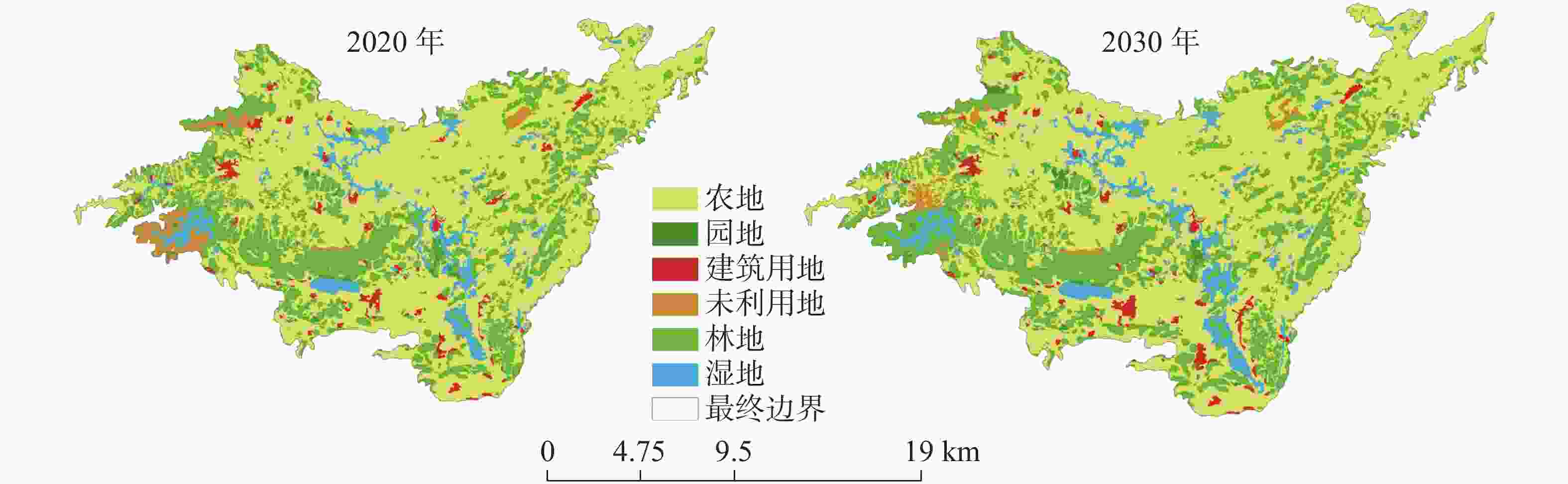

图 5 普者黑岩溶湖泊湿地流域2020年与2030年景观格局预测对比图

Figure 5. Comparison between landscape patterns of the Puzhehei karst wetland in 2020 and 2030

下载: 全尺寸图片幻灯片

表 1 不同年份普者黑流域土地利用类型分类精度

Table 1. Classification precision of land use of Puzhehei basin in different year

时间（年）	1990	1995	2000	2005	2010	2015
影像类型	Landsat TM	Landsat TM	Landsat ETM	Landsat TM	Landsat TM	Landsat OLI
Kappa 系数	0.78	0.82	0.85	0.82	0.84	0.87

下载: 导出CSV

表 2 Kappa系数分类标准^[16-18]

Table 2. Classification criteria of Kappa coefficient

Kappa系数	一致性程度
< 0	很差
0~0.20	微弱
0.21~0.40	弱
0.41~0.60	适中
0.61~0.80	显著
0.81~1.00	最佳

下载: 导出CSV

表 3 普者黑岩溶湿地流域景观类型数量与面积变化（1990−2015）

Table 3. Change of number and area of the Puzhehei karst wetland landscape (1990-2015)

土地利用类型	1990年		1995年		2000年		2005年		2010年		2015年
	斑块数	面积/	斑块数	面积/	斑块数	面积/	斑块数	面积/	斑块数	面积/	斑块数	面积/
	(NP)	hm²	(NP)	hm²	(NP)	hm²	(NP)	hm²	(NP)	hm²	(NP)	hm²
建设用地	59	549.05	58	621.82	60	674.26	62	706.77	65	756.37	63	784.77
林地	550	9 369.64	529	9 343.73	613	9 180.54	594	9 423.89	598	9 165.24	589	9 177.44
农地	107	19 670.03	103	19 818.32	102	20 045.42	95	20 695.63	89	20 777.79	84	20 804.27
湿地	91	2 319.14	89	2 241.09	110	2 190.14	63	1 573.34	60	1 848.94	62	1 916.19
未利用地	7	1024.34	6	898.55	5	838.81	7	530.71	6	376.1	10	243.12
园地	47	236.69	45	245.39	46	239.70	48	238.56	51	244.45	51	243.10
合计	861	33 168.90	830	33 168.90	936	33 168.90	869	33 168.90	869	33 168.90	859	33 168.90

下载: 导出CSV

表 4 普者黑岩溶湖泊湿地流域景观破碎化指数特征

Table 4. Fragmentation index of the Puzhehei karst wetland landscape

	斑块数(NP)/个	斑块密度(PD)	最大斑块数(LPI)/个
1990年	861	2.596	58.345
1995年	830	2.502	58.911
2000年	936	2.822	59.404
2005年	869	2.62	61.797
2010年	879	2.62	61.218
2015年	889	2.69	62.036

下载: 导出CSV

表 5 2010年普者黑流域土地利用模拟与实际结果对比

Table 5. Comparison between simulation of land use and actual land use in the Puzhehei karst wetland in 2010

类型	预测面积/hm²	预测占有率/%	实际面积/hm²	实际占有率/%	模拟正确率%
建筑面积	650.80	1.96	554.81	1.67	85.25
农地	20 053.81	60.42	20 143.46	60.73	99.55
湿地	2 374.33	7.15	2 190.14	6.61	92.24
林地	8 908.94	26.84	9 180.61	27.68	97.04
园地	399.89	0.91	239.70	0.72	59.94
未利用地	1 001.26	2.72	860.18	2.59	85.91
合计	33 189.03	100	33 168.90	100	99.93

下载: 导出CSV

表 6 普者黑岩溶湖泊湿地流域2020年和2030年土地利用预测结果

Table 6. Prediction of land use of the Puzhehei karst wetland in 2020 and 2030

类型	2020年面积/hm²	预测占有率/%	2030年面积/hm²	预测占有率/%
建筑用地	928.99	2.79	980.07	2.97
农地	20 043.94	60.12	20 250.58	60.74
湿地	2 224.92	6.67	2 339.77	7.02
林地	8 901.94	26.70	8 801.94	26.40
园地	726.10	2.18	593.53	1.78
未利用地	511.37	1.53	371.37	1.11
合计	33 337.26	100	33 337.26	100

下载: 导出CSV

表 7 普者黑岩溶湖泊湿地流域2010年与2020年、2030年景观水平指数对比

Table 7. Comparison among the level index of the Puzhehei karst wetland landscape in 2010, 2020 and 2030

年份	景观指数
年份	NP	PD	LPI	ED	LSI	CONTAG	SHDI	SHEI
2010年	879	2.620 0	61.217 5	46.424 5	28.634 9	64.009 5	0.971 9	0.542 4
2020年	989	2.690 7	62.693 6	48.362 1	29.675 2	64.579 1	0.946 9	0.529 7
2030年	999	2.701 0	62.732 1	48.543 2	29.684 3	64.597 3	0.920 6	0.510 9

下载: 导出CSV
